5 Layers Stainless Steel Sintered Wire Mesh With Standard Size: 600×1200×1.7mm, 500×1000×1.7mm
5 Layers Stainless Steel Sintered Wire Mesh With Standard Size: 600×1200×1.7mm, 500×1000×1.7mm
5 Layers Stainless Steel Sintered Wire Mesh With Standard Size: 600×1200×1.7mm, 500×1000×1.7mm
5 Layers Stainless Steel Sintered Wire Mesh With Standard Size: 600×1200×1.7mm, 500×1000×1.7mm
5 Layers Stainless Steel Sintered Wire Mesh With Standard Size: 600×1200×1.7mm, 500×1000×1.7mm
5 Layers Stainless Steel Sintered Wire Mesh With Standard Size: 600×1200×1.7mm, 500×1000×1.7mm
5 Layers Stainless Steel Sintered Wire Mesh With Standard Size: 600×1200×1.7mm, 500×1000×1.7mm
5 Layers Stainless Steel Sintered Wire Mesh With Standard Size: 600×1200×1.7mm, 500×1000×1.7mm
5 Layers Stainless Steel Sintered Wire Mesh With Standard Size: 600×1200×1.7mm, 500×1000×1.7mm
5 Layers Stainless Steel Sintered Wire Mesh With Standard Size: 600×1200×1.7mm, 500×1000×1.7mm
Specifications
Place of Origin :
Hengshui
Brand Name :
Tenglu
Certification :
ISO9001:2015
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Each roll with polyfilm with water proof paper outside, then wooden case.
Delivery Time :
According to required quantity(Generally less than 30 days)
Payment Terms :
T/T, L/C at sight
Material :
Stainless Steel Wire
Application :
Filters
Weave Style :
Plain Weave
Technique :
Woven
Type :
sintered
Micron :
1-300um
Max Size :
1000*1000*1.7mm
Description

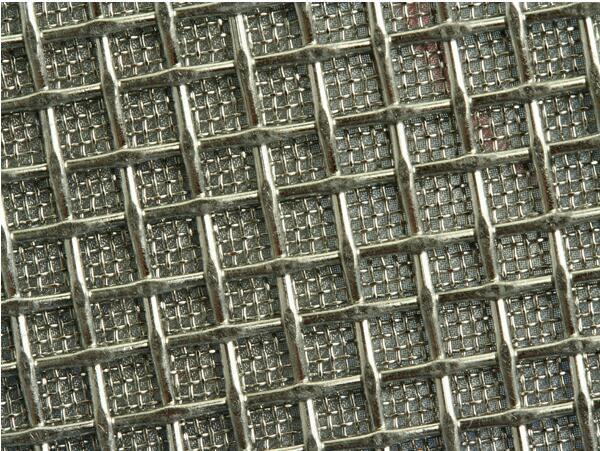

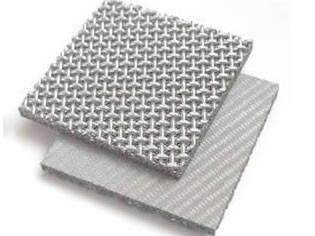

Stainless Steel Sintered Wire Mesh, it is a filtering cloth made by pressing multi-layer woven wire cloth, then sintered together in vacuum furnace. This kind of filtering cloth is much better than common metal woven wire mesh with good strength, hardness and good positioning of opening. Its comprehensive property is superior to sintered metal powder and porcelain.
Major Characteristics: Excellent strength, no inner support is required for making filter elements; no material; easily repeated cleaning; long lifespan; good anti-corrosion.
Uses:
Sintered Wire Mesh
In chemical products filtering of polyester, oil, sulfur, etc.
In filtering of pure water, air, etc.
Major Technical Data:
Filtering Fineness: 2-60micron.
Work Temperature: -20°C to 600°C.
Max. Pressure Drop: 3.2Mpa.
Max. Size: Width: 500mm; Length: 1000mm.
Layer: 2 to 6 layers.

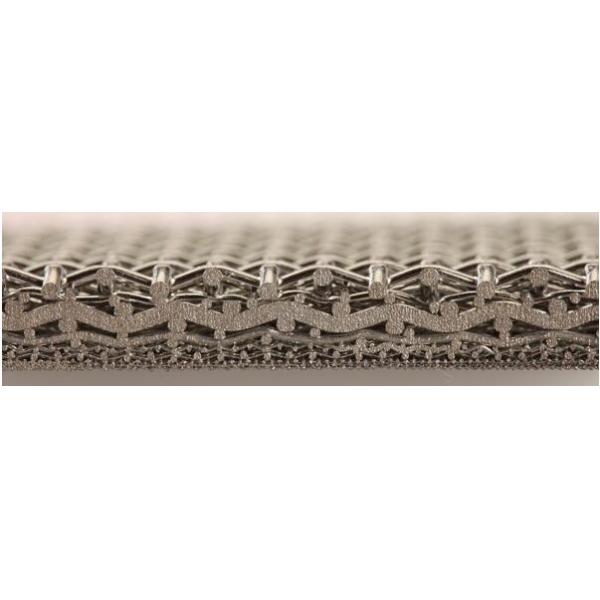

Construction Diagram
5 Layers Stainless Steel Sintered Wire Mesh With Standard Size: 600×1200×1.7mm, 500×1000×1.7mm
5 Layers Stainless Steel Sintered Wire Mesh With Standard Size: 600×1200×1.7mm, 500×1000×1.7mm
Specifications

Type Nominal Micron Structure Air Permeability Bubble
A (µ) 　 　 Pressure
　 　 (5 layers) (L/min×cm2×pa) (Pa)
A5-1 1 100+400×2800+100+12×64+64×12 1.8 5300-6000
A5-2 2 100+325×2300+100+12×64+64×12 2.4 4300-5000
A5-5 5 100+200×1400+100+12×64+64×12 2.6 3000-3700
A5-10 10 100+165×1400+100+12×64+64×12 3.1 2700-3300
A5-15 15 100+165×1200+100+12×64+64×12 3.5 2000-2600
A5-20 20 100+200×600+100+12×64+64×12 4.5 1800-2300
A5-25 25 100+165×600+100+12×64+64×12 6.2 1400-1900
A5-30 30 100+120×600+100+12×64+64×12 6.9 1200-1700
A5-40 40 100+60×270+100+12×64+64×12 4.2 1000-1500
A5-50 50 100+50×270+100+12×64+64×12 8.5 900-1200
A5-70 70 200 Mesh 9 700-1100
A5-100 100 184Mesh 10.8 650-1000
A5-150 150 150Mesh 26 550-800
A5-200 200 100Mesh 28 450-600
A5-300 300 78Mesh 32 350-400

Other specifications according to your requirements.
