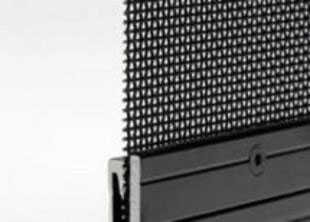

Stainless Steel Insect Screen and Security Mesh/Window Screen(China Manufacturer)
Stainless Steel Insect Screen and Security Mesh/Window Screen(China Manufacturer)
Stainless Steel Insect Screen and Security Mesh/Window Screen(China Manufacturer)
Stainless Steel Insect Screen and Security Mesh/Window Screen(China Manufacturer)
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Price :
usd
Delivery Time :
Generally 25 days(According to your quantity need)
Packaging Details :
Inside with a paper tube, outside with a piece of waterproof paper and then a plastic bag and wooden case.
Payment Terms :
T/T, L/C at sight
Application :
Window and Door, Window Screen
Technique :
Woven
Wire Diameter :
0.05-1.20mm
Features :
Against theft, bulletproof, block insect/mosquitoes
Weave Style :
Plain Weave
Raw Material :
Stainless Steel 304 304L 316 316L Wire
Color :
Black, Blue, Gray, Silver
Certification :
ISO9001:2015
Description

Stainless Steel Insect Screen

Stainless Steel Insect Screen and Security Mesh/Window Screen(China Manufacturer)

Materials:

302-Type: 8-10 NI

304-Type: 8-10 NI

304L-Type: 9-13 NI

316-Type: 10-14 NI

316L-Type:12-15 NI

Features: light weight, good toughness, corrosion resistance, good ventilation and easy cleaning

Applications: for hotels, public buildings, civilian residential, and other mosquito-block. This product is Acid and Basic Resistance, corrosion resistance, the use of the characteristics of a long time, doing a variety of color and surface coating process.

Specifications we produce

Specifications Weight (Kg) Specifications Weight (Kg)
3meshx1.00mm 42-45 20meshx0.40mm 46-50
3meshx1.20mm 60-64 20meshx0.45mm 58-60
4meshx0.70mm 27-29 20meshx0.50mm 61-64
4meshx0.80mm 35-37 22meshx0.35mm 38-41
4meshx1.00mm 58-60 24meshx0.17mm 9-10
6meshx0.70mm 42-44 24meshx0.19mm 11-12.5
6meshx0.60mm 29-32 24meshx0.21mm 13-15
6meshx0.50mm 19-23 24meshx0.23mm 16.5-18
8meshx0.35mm 13-15 24meshx0.25mm 19.5-21.5
8meshx0.40mm 18-20.5 24meshx0.27mm 23-25.5
8meshx0.45mm 23-25 24meshx0.30mm 28-31
8meshx0.50mm 28.5-30 24meshx0.35mm 39-43
8meshx0.55mm 33-36 28meshx0.25mm 24-25
10meshx0.30mm 13-15 30meshx0.15mm 9-10
10meshx0.35mm 16.5-18.0 30meshx0.17mm 11-12
10meshx0.37mm 19-20.5 30meshx0.19mm 13-15
10meshx0.40mm 23-25 30meshx0.21mm 16-19
10meshx0.45mm 29-30.5 30meshx0.23mm 20-22
10meshx0.50mm 33.5-36 30meshx0.25mm 24-26
12meshx0.30mm 13.5-15.5 30meshx0.27mm 29-31
12meshx0.35mm 19-21.0 30meshx0.28mm 34-36
12meshx0.37mm 24-25 30meshx0.30mm 38-41
12meshx0.40mm 26.5-28 40meshx0.12mm 8-8.5
12meshx0.45mm 33-35 40meshx0.13mm 9-10
12meshx0.50mm 43-45 40meshx0.15mm 11-12
14meshx0.27mm 13-15 40meshx0.17mm 13.5-16
14meshx0.30mm 17-20 40meshx0.19mm 18-20
14meshx0.35mm 23-25 40meshx0.21mm 23-25.5
14meshx0.37mm 26-29 40meshx0.23mm 27-30
14meshx0.40mm 30-32 40meshx0.25mm 33-37
16meshx0.25mm 13-15 50meshx0.12mm 9-9.5
16meshx0.27mm 15.5-17 50meshx0.13mm 11-12.5
16meshx0.30mm 19-21 50meshx0.15mm 14-16
16meshx0.35mm 26-28 50meshx0.17mm 18-19.5
16meshx0.37mm 29-32 50meshx0.19mm 23.5-26
16meshx0.40mm 35-37.0 50meshx0.21mm 28.0-32
16meshxo.45mm 47-48 60meshx0.12mm 11-12
18meshx0.23mm 13-14.5 60meshx0.13mm 14-15
18meshx0.25mm 14-15.5 60meshx0.15mm 18-20
18meshx0.27mm 18-19.5 60meshx0.17mm 23-26
18meshx0.30mm 22.5-24.5 60meshx0.19mm 29-32
18meshx0.35mm 29-30.5 80meshx0.09mm 9-9.5
18meshx0.40mm 41-44 80meshx0.10mm 10.5-11.5
18meshx0.50mm 67-70 80meshx0.12mm 15-16.5
20meshx0.19mm 9-10.5 100meshx0.08mm 8.5-9
20meshx0.21mm 11-12.5 100meshx0.09mm 11.5-12
20meshx0.23mm 13-15.5 100meshx0.10mm 13-15
20meshx0.25mm 16-18 120meshx0.07mm 8-8.5
20meshx0.27mm 19-21 120meshx0.08mm 11-11.5
20meshx0.29mm 22.5-24 120meshx0.09mm 13.5-14
20meshx0.30mm 24-27.5 150meshx0.06mm 7.5-8
20meshx0.35mm 32-36 150meshx0.07mm 10.5-11
20meshx0.37mm 38-41 200meshx0.05mm 7-7.5

Other Specifications according to your requests.
