Stainless Steel Mesh Strip With Material SS302, 304, 304L, 316, 316L , 430, 309, 310S.
Stainless Steel Mesh Strip With Material SS302, 304, 304L, 316, 316L , 430, 309, 310S.
Stainless Steel Mesh Strip With Material SS302, 304, 304L, 316, 316L , 430, 309, 310S.
Stainless Steel Mesh Strip With Material SS302, 304, 304L, 316, 316L , 430, 309, 310S.
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
50rolls
Price :
usd
Delivery Time :
In 25days
Packaging Details :
Waterproof paper and then a plastic bag and wooden case.
Payment Terms :
T/T, L/C at sight, Western Union
Wire Diameter :
0.015-1.8mm
Material :
SS304, SS304L, SS316, SS316L
Weave Type :
Plain Dutch, Twill Dutch
Roll Width :
40mm to 500mm
Roll Length :
10m to 20m(Can be customized)
Certification :
ISO9001:2015
Description

Stainless Steel Mesh Strip With Material SS302, 304, 304L, 316, 316L , 430, 309, 310S.

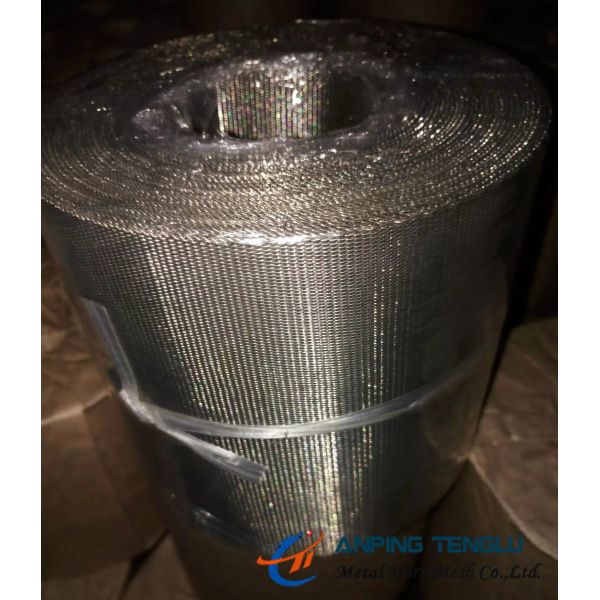

Stainless Steel Mesh Strip
Stainless Steel Mesh Strip, also called stainless steel mesh belt. Can be ised in ribbon style continuous screen changers for plastic extrusion, melt filtration.


Material: 302, 304, 304L, 316, 316L , 430, 309, 310S.

Peformance: Corrosion resistance, acid resistance, alkali resistance, high temperature resistance, good filter performance, strong tension and wearability.

Weave Pattern:
Stainless Steel Mesh Strip With Material SS302, 304, 304L, 316, 316L , 430, 309, 310S.

Application: it is used for sieving and filtration in acid and alkali environment, mud mesh in petroleum industry, sieving filter mesh in chemical fiber, acid washing mesh in electro galvanized industry, we can produce design and produce according to customre request, also OEM is acceptable.

Specifications:

Sheet1: Specifications of Plain Dutch Weave Wire Mesh

Mesh/Inch

Warp×Weft

Wire Diameter

Warp×Weft

(mm)

 Aperture Size
μm

Weight

kg/㎡

Thickness

(mm)
7×40 0.9×0.71 347 6.65 2.32
7×44 0.71×0.63 319 5.55 1.97
8×45 0.8×0.6 310 5.7 2.00
8.5×60 0.63×0.45 296 4.16 1.53
8×85 0.45×0.315 275 2.73 1.08
10×90 0.45×0.28 249 2.57 1.01
10×76 0.5×0.355 248 3.24 1.21
12×86 0.45×0.315 211 2.93 1.08
12×64 0.56×0.4 3.89 1.36
12.5×76 0.45×0.355 192 3.26 1.16
14×100 0.40×0.28 182 2.62 0.96
14×110 0.355×0.25 177 2.28 0.855
14×76 0.45×0.355 173 3.33 1.16
16×100 0.4×0.28 160 2.7 0.96
17×120 0.355×0.224 155 2.19 0.803
16×120 0.28×0.224 145 1.97 0.728
20×140 0.315×0.20 133 0.715
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.20 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.60 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.70 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.60 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135
Sheet2: Specifications of Twill Dutch Weave Wire Mesh

Mesh/Inch

Warp×Weft

Wire Diameter

Warp×Weft

(mm)

 Aperture Size
μm

Weight

kg/㎡

Thickness

(mm)
20×270 0.25×0.2 119 3.14 0.65
20×200 0.355×0.28 118 4.58 0.915
24×300 0.28×0.18 110 3.01 0.64
20×150 0.45×0.355 101 6.02 1.16
30×340 0.28×0.16 89 2.84 0.60
30×270 0.28×0.20 77 3.41 0.68
40×540 0.18×0.10 70 1.73 0.38
40×430 0.18×0.125 63 2.09 0.43
50×600 0.125×0.09 51 1.47 0.305
50×500 0.14×0.11 47 1.83 0.364
65×600 0.14×0.09 36 1.59 0.32
70×600 0.14×0.09 31 1.61
78×760 0.112×0.071 1.25 0.254
78×680 0.112×0.08 29 1.37 0.272
80×680 0.112×0.08 28 1.38
90×850 0.10×0.063 26 1.12 0.226
90×760 0.10×0.071 24 1.23 0.242
100×850 0.10×0.063 22 1.14 0.226
130×1500 0.063×0.036 21 0.64 0.135
100×760 0.10×0.071 20 1.25 0.242
130×1200 0.071×0.045 18 0.80 0.161
130×1100 0.071×0.05 17 0.87 0.171
150×1400 0.063×0.04 15 0.71 0.143
160×1500 0.063×0.036 0.67 0.135
165×1500 0.063×0.036 14
174×1700 0.063×0.032 13 0.62 0.127
165×1400 0.063×0.04 0.73 0.143
174×1400 0.063×0.04 11 0.74
203×1600 0.05×0.032 10 0.58 0.114
216×1800 0.045×0.03 0.53 0.105
203×1500 0.056×0.036 9 0.67 0.128
250×1900 0.04×0.028 8 0.51 0.096
250×1600 0.05×0.032 0.63 0.114
285×2100 0.036×0.025 7 0.44 0.086
300×2100 0.036×0.025 6
317×2100 0.036×0.025 5
325×2300 0.036×0.024 4
363×2300 0.032×0.022 0.40 0.076

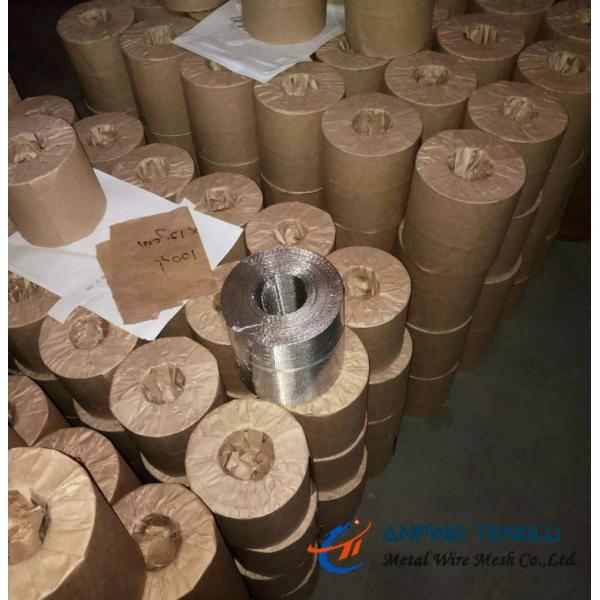

Packing: Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
