Triple Warp Weave Wire Mesh, Special Crimped Mesh, Solid Features
Triple Warp Weave Wire Mesh, Special Crimped Mesh, Solid Features
Triple Warp Weave Wire Mesh, Special Crimped Mesh, Solid Features
Triple Warp Weave Wire Mesh, Special Crimped Mesh, Solid Features
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5 rolls(Negotiable)
Price :
Negotiable
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
Generally in 25 days. Based on your quantity.
Packaging Details :
Each roll with polyfilm with water proof paper outside/wooden pallets.
Material :
Stainless Steel, Aluminum, Copper/Brass, etc
Type :
Triple Warp Weave
Technique :
Pre-Crimped Then Woven
Number of Warp Wire :
3
Open Area :
45% - 70%
Features :
Solid, aesthetic design, etc.
Certification :
ISO9001:2015
Description

Triple Warp Weave Wire Mesh, Special Crimped Mesh, Solid Features

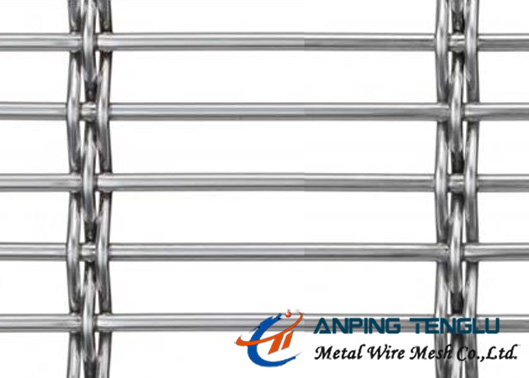

Triple Warp Weave Wire Mesh

Triple weave mesh is further amended. The vertical wire is solid crimped round wire, which make the triple weave mesh's structure more stiffness and durable. Due to its special crimps, the triple weave mesh is full of strength to be available in many places for decoration and protection, for example balustrade. Its like textile structure and varying degrees of transparency provide plenty of visibility through the mesh to view inside the room as well as offer a good visual effect.

Triple Weave Pattern:

Triple Warp Weave Wire Mesh, Special Crimped Mesh, Solid Features

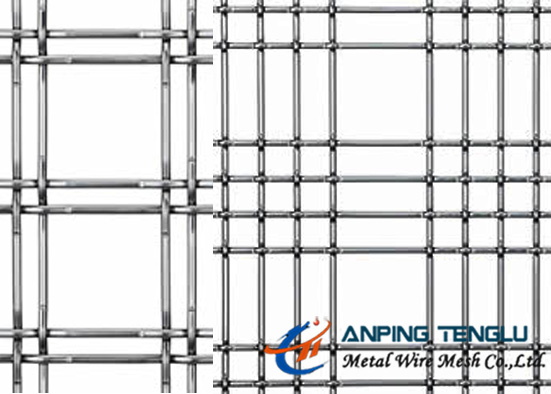

Besides the triple weave mesh, we also offer weave mesh with two or four vertical wire.

Triple Warp Weave Wire Mesh, Special Crimped Mesh, Solid Features

Material: stainless steel wire, brass wire, copper wire, phosphor bronze wire, galvanized wire, aluminum wire, etc.

Features:

Wear and abrasion resistant;
Decoration and protection functions;
Easy to install and attractive appearance;
Simple and artistic outlook;
Various choices of crimped types and numbers of vertical wire;
Good ventilation and high visibility because of large open area, etc.

Applications:

Triple warp wire mesh is mainly applied in balustrades Besides, it is also available for interior or exterior building decoration.

Widedly used as building facades metal fabric, staircases isolation screen, partition isolation screens, architectural mesh, facade construction, Protective guardrails, Building elevation, room dividers, parking garage facades, shade screens.

Specifications:

Triple Warp Weave Mesh-1
Material Stainless Steel Wire
Wire Diameter 1.6mm × 2.9mm
Aperture 50mm × 8mm
Open Area 65%

Triple Warp Weave Mesh-2
Material Stainless Steel Wire
Wire Diameter 3.15mm
Aperture 40mm×20mm
Open Area 60%

Triple Warp Weave Mesh-3
Material Stainless Steel Wire
Wire Diameter 3.15mm
Aperture 60mm×9mm
Open Area 59%

Triple Warp Weave Mesh-4
Material Copper Wire
Wire Diameter 2.5mm
Aperture 45mm×9mm
Open Area 45%

Other Specifications according to your requirements.

Packing: Crimped wire mesh is packed in rolls or panels, wrapped in moisture-proof paper or plastic film, outside wooden cases.
