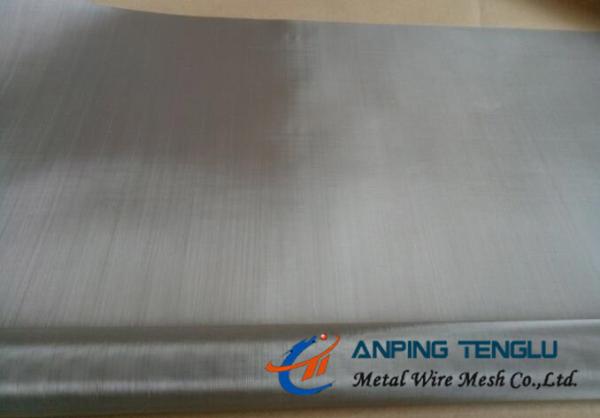

Stainless Steel Woven Wire Mesh,10-100Mesh Count for Papermaking Industry
Stainless Steel Woven Wire Mesh,10-100Mesh Count for Papermaking Industry
Stainless Steel Woven Wire Mesh,10-100Mesh Count for Papermaking Industry
Stainless Steel Woven Wire Mesh,10-100Mesh Count for Papermaking Industry
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
Generally in 25days.
Packaging Details :
Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof.
Material :
Stainless Steel 304, 304L, 316, 316L
Mesh/Inch :
10mesh-100mesh
Wire Diameter :
0.06mm-1.00mm
Standard Width :
40", 48", 70"
Standard Length :
100ft
Usages :
Pulp and Papermaking Industry
Certification :
ISO9001:2015
Description

Stainless Steel Woven Wire Mesh,10-100Mesh Count for Papermaking Industry

Stainless Steel Woven Mesh for Printing Screen

It was installed in the paper-making machine net department, which can make the water suspension of pulp preliminary dehydration, and then form the wet paper pages. Woven wire metal mesh can be used in papermaking industry. Pulp and paper industry use the wire mesh for water clarification,dewatering, pulp screening and fractionation, drying and other liquid/solid separation processes. The mainly use as a face cloth cover for cylinder mould, high quality wire cloth is woven to our specification using a variety of weaves and wire diameters, the wire mesh are features with durability, seam strength, drainage and minimized wire marking.

The selection of wire mesh size depends on the amount of short fiber it is desirable to include in the pulp. The smaller the mesh openings, the more short fiber and clay will be retained and the less the hydraulic loading can be exerted per square meter of mesh surface area.


Materials: SS304, SS304L, SS316, SS316L.

Weaving Type: Plain weave.
Stainless Steel Woven Wire Mesh,10-100Mesh Count for Papermaking Industry

Features:

Corrosion resistance, mechanical properties, physical properties and fabricability

Improve finish paper quality including evenness, gram weight and aspect tension ratio

Reduction in the amount of water carry-over from the inside of mould.

Reducing the effect of centrifugal force.

Characteristics:
Easy to clean

Maximum open area

Increase in formation pressure.

Firm mesh binding
High precision of the mesh openings
Uniform weave (no mesh striping)
No static charge
Exceptionally high yield point
Very narrow thickness tolerances
Large open area

Applications:

Pulp and paper making industry, waste water treatment.

Stainless Steel Woven Wire Mesh,10-100Mesh Count for Papermaking Industry

Papermaking Usuage Stainless Steel Woven Mesh Specifications:

Mesh Wire Diameter Aperture Open Area Rate
mm Inch mm Inch %
20 0.27 0.0106 1.000 0.0393 62.00
20 0.25 0.0098 1.020 0.0401 64.50
80 0.12 0.0047 0.197 0.0077 38.69
80 0.10 0.0039 0.217 0.0085 46.92
100 0.10 0.0039 0.154 0.0060 36.75
100 0.08 0.0031 0.174 0.0068 46.92
120 0.06 0.0023 0.151 0.0059 51.34

Other specifications as your requests.

Packing:

Stainless Steel Woven Wire Mesh,10-100Mesh Count for Papermaking Industry
