2.0-3.5mm Wire 5-30mm Aperture, Crimped Wire Mesh Used as Machine Guards
2.0-3.5mm Wire 5-30mm Aperture, Crimped Wire Mesh Used as Machine Guards
2.0-3.5mm Wire 5-30mm Aperture, Crimped Wire Mesh Used as Machine Guards
2.0-3.5mm Wire 5-30mm Aperture, Crimped Wire Mesh Used as Machine Guards
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5 rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight
Delivery Time :
According to required quantity.
Packaging Details :
each roll with polyfilm with water proof paper outside/wooden pallets
Material :
Stainless Steel Wire, Mild Steel Wire, Galvanized Wire
Type :
Crimped Wire Mesh
Weave Style :
Plain Weave, Plain Crimed
Opening Size :
5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm
Wire Diameter :
1.8mm, 2.0mm, 2.5mm, 3.0mm, 3.2mm, 3.5mm
Certification :
ISO9001:2015
Description

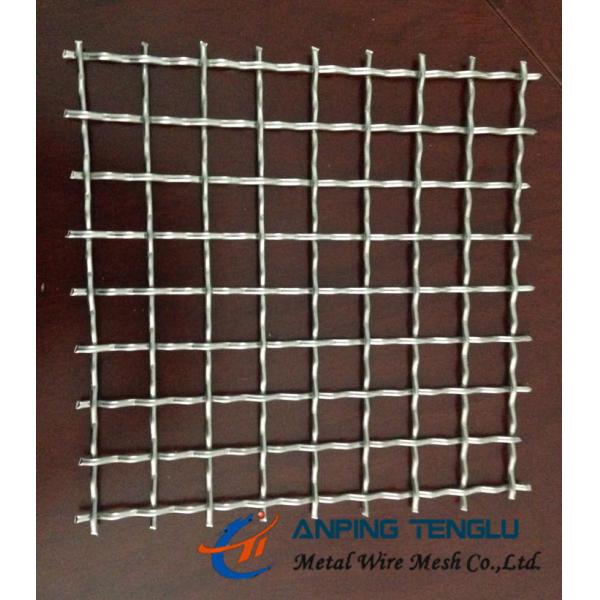

2.0-3.5mm Wire 5-30mm Aperture, Crimped Wire Mesh Used as Machine Guards

Stainless Steel Crimped Wire Mesh for Guards

There's a lot dangers on any industrial or construction work site. With so many workers moving around the various machines and tools, it can be difficult to remain careful at all times. But it's important to maintain a safe work site and ensure the protection of your machines.

Crimped mesh play a important role in machine guards or heavy equipment protection by keeping people safe from moving parts or flying debris. It is the foundation of the machines guards. If an accident were to happen, you should know that the crimped mesh panels are strong enough to keep both people and machinery safe.

Wire Materials: stainless steel wire, brass wire, high carbon steel wire, galvanized iron wire, galvanized steel wire, non-ferrous metal wire, etc.

Weaving Patterns: Plain Weave, Plain Crimped

2.0-3.5mm Wire 5-30mm Aperture, Crimped Wire Mesh Used as Machine Guards 2.0-3.5mm Wire 5-30mm Aperture, Crimped Wire Mesh Used as Machine Guards

Features:

Provide maximum protection;
Be a permanent part of the machine without weakening the structure;
Be strong enough to withstand normal wear and tear;
Be easily repairable;
Be fire and corrosion resistant.

Application: Machine guards, separated for protecting.

They are typically used for areas where machine visibility is required. Where the crimped mesh is protecting machinery which can become hot, the mesh also have the advantage of not restricting air movement and therefore allowing for full ventilation.

Specifications:

Wire Diameter Aperture Open Area Rate
mm Inch mm Inch %
2.3 0.091 8.0 0.315 60.33
2.0 0.079 8.0 0.315 64.00
1.8 0.071 10.0 0.394 71.82
1.6 0.063 10.0 0.394 74.32
2.0 0.079 20.0 0.787 82.64
1.8 0.071 20.0 0.787 84.17
2.6 0.102 25.40 1.000 82.29
2.3 0.091 25.40 1.000 84.08
… … … … …

Othere Specifications according to your requirements.

Packaging:

2.0-3.5mm Wire 5-30mm Aperture, Crimped Wire Mesh Used as Machine Guards
