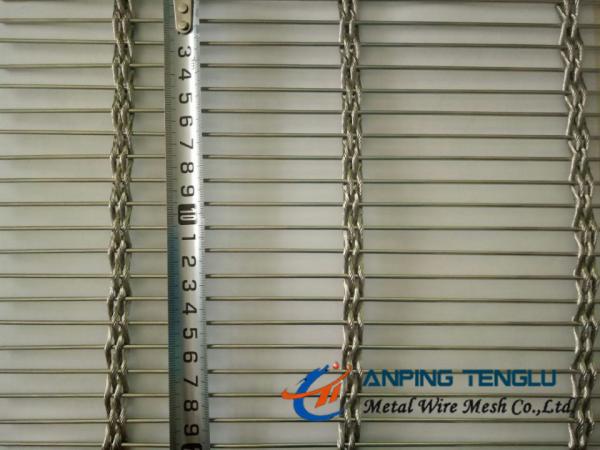

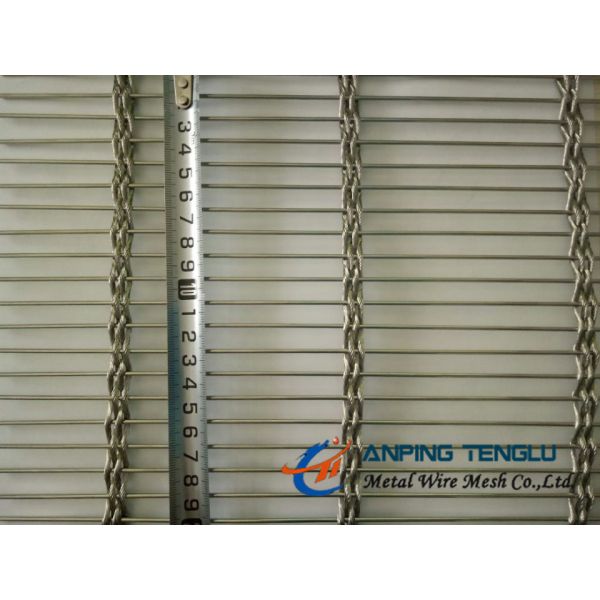

Rod Cable Wire Mesh, 3mm Cable, 100mm Pitch, 1.5mm Rod, 10mm Pitch
Rod Cable Wire Mesh, 3mm Cable, 100mm Pitch, 1.5mm Rod, 10mm Pitch
Rod Cable Wire Mesh, 3mm Cable, 100mm Pitch, 1.5mm Rod, 10mm Pitch
Rod Cable Wire Mesh, 3mm Cable, 100mm Pitch, 1.5mm Rod, 10mm Pitch
Rod Cable Wire Mesh, 3mm Cable, 100mm Pitch, 1.5mm Rod, 10mm Pitch
Rod Cable Wire Mesh, 3mm Cable, 100mm Pitch, 1.5mm Rod, 10mm Pitch
Rod Cable Wire Mesh, 3mm Cable, 100mm Pitch, 1.5mm Rod, 10mm Pitch
Rod Cable Wire Mesh, 3mm Cable, 100mm Pitch, 1.5mm Rod, 10mm Pitch
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
In 25days(According to required quantity)
Packaging Details :
Seaworthy wooden packing or as your requirement
Material :
SS304, SS304L, SS316, SS316L
WeaveType :
Cable Rod Type
Cable Diameter :
3mm*4
Cable Pitch :
90mm
Rod Diameter :
1.5mm
Rod Pitch :
10mm
Certification :
ISO9001:2015
Description
Rod Cable Wire Mesh, 3mm Cable, 100mm Pitch, 1.5mm Rod, 10mm Pitch
Stainless Steel Cable Rod Mesh

Cable mesh is made with braided cable ropes across the metal rods. This structure allows the material to stretch while maintaining the same plane stiffness in the other. The material has unlimited durability, can bear the stress and deformation without damage.

Its materials can be stainless steel, brass, phosphor bronze. Stainless steel material has the best reflectivity and durability, so we mainly use stainless steel material.

Material: Stainless Steel 300 series. Brass, Aluminum, Copper are available.

Features:

Durable, luxuriant high-grade, high technology content,and is widely used in the curtain of base construction, condole top, stairs, elevators, luxurious office buildings, hotels, luxury ballroom, business hall indoor and outdoor decoration of buildings. Under the illuminate of lamplight, it will be magnificent, elegant and delicate.

Applications:

Cable decorative mesh products with durable, gorgeous high-end, are widely used in high buildings, elevators, luxury office buildings, hotels, grand ballroom, business hall and other buildings for indoor and outdoor decoration, as curtains, ceiling, room divider, railings, wall coverings, rolling shutters, shop-exhibition stands. In the light irradiation, it is very magnificent, elegant and refined.

Cable Rod Architectural Decoration Specifications:
Material Cable Dia. Cable Pitch Rod Dia. Rod Pitch

Stainless Steel

304, 304L, 316, 316L

 1x1.8 mm 4 mm 1.5 mm 5.5 mm
1x2.5 mm 6 mm 2 mm 8 mm
2x2.75 mm 40 mm 4 mm 14.5 mm
3x0.5 mm 3.5 mm 0.5 mm 1.4 mm
3x1.6 mm 80 mm 2.5 mm 10 mm
3x2 mm 80 mm 3 mm 10 mm
3x2.75 mm 110 mm 4 mm 14.5 mm
3x3 mm 110 mm 4 mm 14.2 mm
4x0.75 mm 26.4 mm 1.5 mm 3 mm
4x1 mm 36 mm 2 mm 6.6 mm
4x2 mm 50 mm 3 mm 6 mm
4x2 mm 50 mm 3 mm 6 mm
Special without in the chart is available as your request.
