Stainless Steel Cable Rod Mesh for Sun Shade, 2mm*17.5mm Cable, 1.5mm*3.5mm Rod
Stainless Steel Cable Rod Mesh for Sun Shade, 2mm*17.5mm Cable, 1.5mm*3.5mm Rod
Stainless Steel Cable Rod Mesh for Sun Shade, 2mm*17.5mm Cable, 1.5mm*3.5mm Rod
Stainless Steel Cable Rod Mesh for Sun Shade, 2mm*17.5mm Cable, 1.5mm*3.5mm Rod
Stainless Steel Cable Rod Mesh for Sun Shade, 2mm*17.5mm Cable, 1.5mm*3.5mm Rod
Stainless Steel Cable Rod Mesh for Sun Shade, 2mm*17.5mm Cable, 1.5mm*3.5mm Rod
Stainless Steel Cable Rod Mesh for Sun Shade, 2mm*17.5mm Cable, 1.5mm*3.5mm Rod
Stainless Steel Cable Rod Mesh for Sun Shade, 2mm*17.5mm Cable, 1.5mm*3.5mm Rod
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
In 25days(According to required quantity)
Packaging Details :
Seaworthy wooden packing or as your requirement
Material :
SS304, SS304L, SS316, SS316L
WeaveType :
Cable Rod Type
Cable Diameter :
2mm*1
Cable Pitch :
17.5mm
Rod Diameter :
1.5mm
Rod Pitch :
3.5mm
Weight :
Around 5.5kg/㎡
Certification :
ISO9001:2015
Description

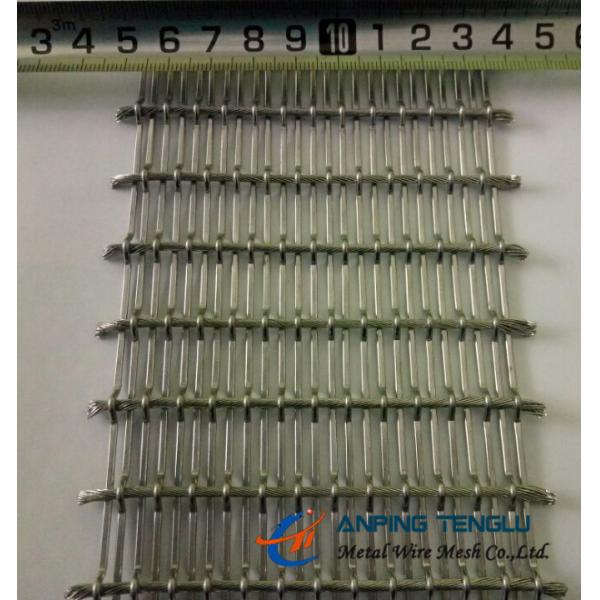

Stainless Steel Cable Rod Mesh for Sun Shade, 2mm*17.5mm Cable, 1.5mm*3.5mm Rod
Stainless Steel Cable Rod Mesh
Material: SS304, SS304L, SS316, SS316L
Cable Diameter: 2mm×1
Cable Pitch: 17.5mm
Rod Diameter: 1.5mm
Rod Pitch: 3.5mm
Weight: About 5.5kg/sq M
Applications: Sun Shade, Rood Divider, etc.
The cable & rod mesh is made of metal bars or metal braid, according to the weaving form of woven fabric is divided into diameter weft knitting, spiral sleeve knitting and other forms, this structure allows the material to stretch while maintaing the same plane stiffness. Some of the cable & rod mesh can be used as sun shade.
Material: Stainless Steel 300 series. Brass, Aluminum, Copper are available.

Features:

The cable & rod mesh with non-flammable, strong, functional, easy to maintain, easy to shape, estraordinary service life, more environmentally friendly and fire safety requirements. It's easy to install, fast, can be used in large areas, but also only for local decorative embellishment. It's unique shape, elegant, decorative efect is vivid, strong, diverse, different light, different environments, different time periods, different angles of observation, the effect is different, can be applied to a variety with the effect, highlighting the elegant temperament, extraordinary personality, noble taste.

Applications:

Used as cable shielding mesh, curtain wall mesh, architectural mesh,internal wall cladding, antique pickel plated,
architectural cables mesh, room divider, sunshade screen, elevator panel, partition walls, elongated mesh, etc.

Normail Specifications:

Material: 304, 316, 316L

Cable diameter: 0.75mmX4

Cable pitch: 26.4mm

Rod diameter: 1.5mm

Rod pitch: 3mm

Weight: 5.3kg/m2

Material: 304, 316, 316L

Cable diameter: 1mmX4

Cable pitch: 36mm

Rod diameter: 2 mm

Rod pitch: 4 mm

Weight: 7 kg/m2

Material: 304, 316, 316L

Cable diameter: 1mmX4

Cable pitch: 36 mm

Rod diameter: 2 mm

Rod pitch: 4 mm

Weight: 7.9 kg/m2

Material: 304, 316, 316L

Cable diameter: 2mmX3

Cable pitch: 80 mm

Rod diameter: 3 mm

Rod pitch: 10 mm

Weight: 6.6 kg/m2

Material: 304, 316, 316L

Cable diameter: 2mmX4

Cable pitch: 50 mm

Rod diameter: 3 mm

Rod pitch: 6 mm

Weight: 11.56 kg/m2

Material: 304, 316, 316L

Cable diameter: 3mmX3

Cable pitch: 54 mm

Rod diameter: 3 mm

Rod pitch: 11 mm

Weight: 9.5 kg/m2

Material: 304, 316, 316L

Cable diameter: 2.75mmX2

Cable pitch: 40 mm

Rod diameter: 4 mm

Rod pitch: 14.5 mm

Weight: 9.41 kg/m2

Material: 304, 316, 316L

Cable diameter: 1.05mmx2

Cable pitch: 36mm

Rod diameter: 4 mm

Rod pitch: 7 mm

Weight: 14.90 kg/m2

Material: 304, 316, 316L

Cable diameter: 2mmX3

Cable pitch: 80 mm

Rod diameter: 3 mm

Rod pitch: 10 mm

Weight: 6.67 kg/m2
Special without in the chart is available as your request.
