Plain Steel Wire Mesh, Plain Weave(3-80) & Dutch Weave(12-30)×(64-200)
Plain Steel Wire Mesh, Plain Weave(3-80) & Dutch Weave(12-30)×(64-200)
Plain Steel Wire Mesh, Plain Weave(3-80) & Dutch Weave(12-30)×(64-200)
Plain Steel Wire Mesh, Plain Weave(3-80) & Dutch Weave(12-30)×(64-200)
Plain Steel Wire Mesh, Plain Weave(3-80) & Dutch Weave(12-30)×(64-200)
Plain Steel Wire Mesh, Plain Weave(3-80) & Dutch Weave(12-30)×(64-200)
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5 rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
According to required quantity.
Packaging Details :
Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof
Material :
Plain Steel(Low Carbon Steel)
Mesh Counts :
3-80mesh;12×64-40x200mesh
Weave Style :
Plain/Twill Weave, Plain Dutch Twill Weave
Width :
0.6m-5.0m
Length :
10m-200m
Applications :
Used in extrusion equipment for plastic, rubber and so on.
Certification :
ISO9001:2015
Description
Plain Steel Wire Mesh, Plain Weave(3-80) & Dutch Weave(12-30)×(64-200)

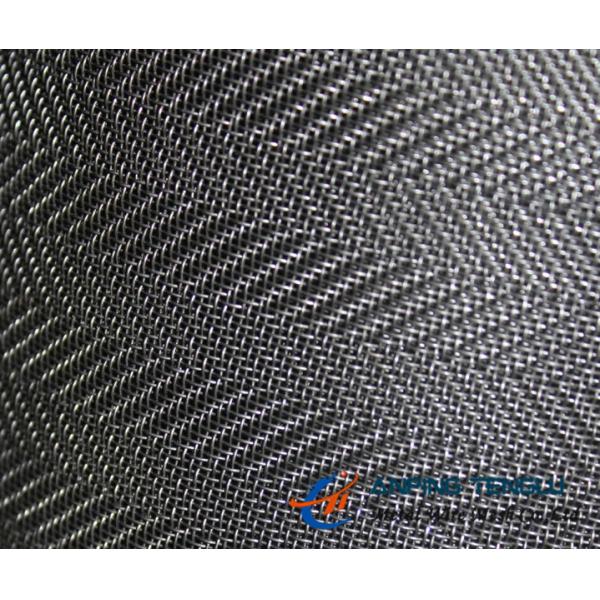

Plain Steel Wire Mesh
The plain steel wire mesh is a great economical choice for those who are looking for a durable and yet inexpensive wire mesh. The Plain steel wire mesh, often called as “black wire mesh” or “low carbon steel wire mesh”, is relatively inexpensive as it is made of plain steel and not heat-treated. This is ideal for clients who are looking for a strong and durable wire mesh where corrosion is not a factor as rust may set in due to its low-carbon steel mesh. The wire mesh is frequently used in fireplace screens, oil strainers and for small guards. Carbon content is up to 0.3% for mild steel making it a suitable wire to be used for welding, forming, bending and other engineering applications, as it is neither brittle nor pliable like other wire meshes. Plain steel wire mesh is commonly used as filter wire mesh in several industries including – rubber, grain and plastic.
Material: low carbon steel
Applications: Black mild steel wire mesh is mainly processed in filter discs for filtration of rubber industry, plastic industry and grains.
Weaving Type: Plain Weave, Twill Weave, Plain Dutch Weave
Plain Steel Wire Mesh, Plain Weave(3-80) & Dutch Weave(12-30)×(64-200) Plain Steel Wire Mesh, Plain Weave(3-80) & Dutch Weave(12-30)×(64-200)Plain Steel Wire Mesh, Plain Weave(3-80) & Dutch Weave(12-30)×(64-200)

Plain Steel Wire Mesh Specifications:
Normally Mesh Counts: 3-100mesh; 12×64-40x200mesh;
Width: 36", 48", 0.6m, 1m, 1.2m, 1.5m.
Roll Length: 30m, 100ft.

Plain Weave of Plain Steel Mesh
Mesh Wire Dia.( mm) Opening (mm)
8 0.71 2.47
10 0.65 1.89
12 0.6 1.52
14 0.5 1.31
16 0.4 1.19
20 0.4 0.87
24 0.35 0.71
30 0.3 0.55
40 0.25 0.39
50 0.2 0.31
60 0.17 0.25
80X70 0.135 –
100X90 0.11 –

Twill Weave of Plain Steel Mesh
Mesh Wire Dia.( mm)
20 0.6
30 0.4
40 0.35
50 0.3
60 0.3

Plain Dutch Weave of Plain Steel Mesh
Mesh Wire Dia.( mm)
12×64 0.58×0.64
14×88 0.50×0.33
24×110 0.36×0.25
30×150 0.23×0.18
40×200 0.18×0.13
50 X150 0.23X0.16

Other sizes also available at customers specific requirements.


Packing: Inner kraft paper, outside plastic cloth, put into wooden pallet or case.
Plain Steel Wire Mesh, Plain Weave(3-80) & Dutch Weave(12-30)×(64-200)
