Mini Hole Expanded Metal Mesh, LWDxSWD: 5x2.5mm, 0.2-0.5mm Thickness
Mini Hole Expanded Metal Mesh, LWDxSWD: 5x2.5mm, 0.2-0.5mm Thickness
Mini Hole Expanded Metal Mesh, LWDxSWD: 5x2.5mm, 0.2-0.5mm Thickness
Mini Hole Expanded Metal Mesh, LWDxSWD: 5x2.5mm, 0.2-0.5mm Thickness
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
100㎡
Price :
usd
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
In 2 weeks
Packaging Details :
Plastic out side then in pallet or wooden box.
Material :
SS304, SS316
Thickness :
0.2mm, 0.3mm, 0.4mm, 0.5mm
LWD×SWD :
5.0mm*2.5mm
Strand Width :
0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.8mm, 1.0mm
Applications :
speaker grille, filtration support, etc.
Certification :
ISO9001:2015
Description

Mini Hole Expanded Metal Mesh, LWDxSWD: 5x2.5mm, 0.2-0.5mm Thickness

Micro Expanded Metal Mesh Stainless Steel

Made from different metal plate materials, diamond hole expanded metal is being slit and stretched by punching machines, forming into a kind of metal plate with diamond holes. This kind of product has sturdy construction and hole shape can keep not deformed for long time. For its unique structure, diamond hole expanded metal has features of lightweight, reinforced performance, uniform mesh connection, easy construction, strong adhesion, shock resistance and so on. According to different materials, hole sizes and surface treatment, diamond hole expanded metal are widely used in various of fields.

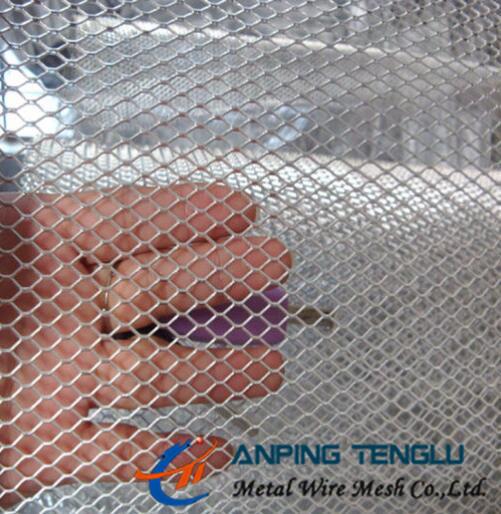

5x2.5 mm aperture micro expanded metal is made from 0.2-0.5mm thickness metal plate by uniformly slit and stretched, forming 5x2.5 mm micro diamond opening in the metal sheet. For its uniform small openings and flat surface, it is widely used for headphones grille, speaker grille, phone speaker grille, battery mesh and other filtration support etc.


Materials:

Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321
Steel: Q195, Q215, Q235
Copper: red copper plate (C10200, C11000), brass plate(CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5)
Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)
Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600

Note: SS304, SS316 is the most common material.

Standard Expanded Metal is directly slit and stretched by punching machines without other processing,The strand width and bond come in with an angle with the plate surface. This kind structure increase the strength and hardness of expanded metal,it also brings better anti-slipping and reinforcing performance.

Mini Hole Expanded Metal Mesh, LWDxSWD: 5x2.5mm, 0.2-0.5mm Thickness

Features:

Durable
Attractive
One-piece construction
Easy to handle
Excellent strength-to-weight ratio
Low wind resistance
Easy to cut and shear
Available in many styles

Applications:

Filters
Screening
Coverings for audio speakers
Coverings for filters
Aesthetic paneling
Electrochemical conductor in new batteries

5.0*2.5mm Expanded Mesh Specifications:

LWD(mm) SWD(mm) Strand Width(mm) Weight(kg/sq m)

0.2mm

 0.3mm 0.4mm. 0.5mm
5.0 2.5 0.2 0.25 - 0.50 -
5.0 2.5 0.3 0.38 0.57 - 0.94
5.0 2.5 0.4 0.50 0.75 1.00 -
5.0 2.5 0.5 0.63 0.94 1.51 1.57
5.0 2.5 0.8 - 1.51 2.01 2.51
5.0 2.5 1.0 - 1.88 2.51 3.14

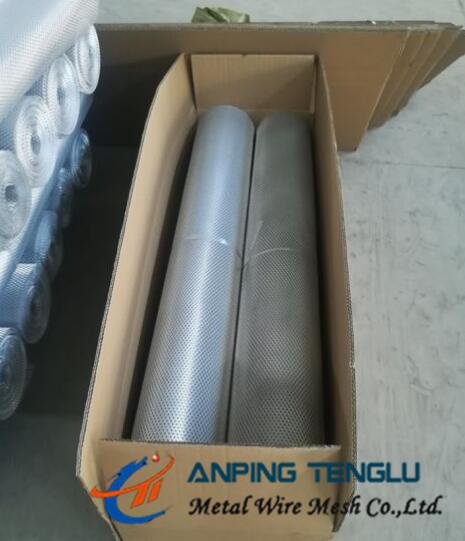

Packing: Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type.
