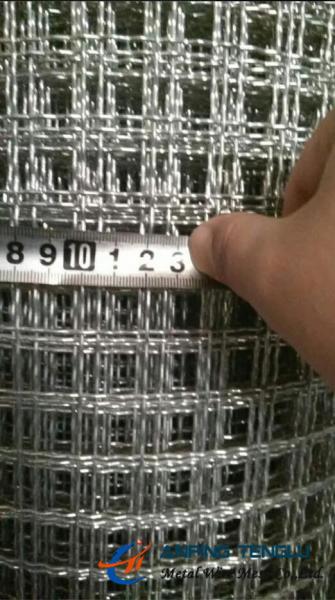

Stainless Steel Single Intermediate Crimped Wire Mesh, 2 Mesh, 9-11mm Opening
Stainless Steel Single Intermediate Crimped Wire Mesh, 2 Mesh, 9-11mm Opening
Stainless Steel Single Intermediate Crimped Wire Mesh, 2 Mesh, 9-11mm Opening
Stainless Steel Single Intermediate Crimped Wire Mesh, 2 Mesh, 9-11mm Opening
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5 rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight
Delivery Time :
According to required quantity.
Packaging Details :
Each roll with polyfilm with water proof paper outside/wooden pallets.
Material :
Stainless Steel Wire, Carbon Steel Wire
Type :
Intermediate Crimped Mesh
Application :
Screen
Weave Style :
Plain Weave
Technique :
Pre-Crimped Then Woven
Certification :
ISO9001:2015
Description

Stainless Steel Single Intermediate Crimped Wire Mesh, 2 Mesh, 9-11mm Opening

Intermediate Crimped Wire Mesh

The single intermediate crimped means the weft wire is pre-crimped and the warp wire is directly woven. 2 mesh single intermediate crimped wire mesh including 2 openings per inch. Using 0.8-3.4mm diameter wire, by single intermediate crimped weaving, woven 2 mesh opening for 9-11mm solid particles. This wire diameter and mesh with ratio reasonable, flat surface, strong wear resistance and firm structure.

Weave Patterns:

Stainless Steel Single Intermediate Crimped Wire Mesh, 2 Mesh, 9-11mm Opening

Material:

Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel

Features:
Intercrimped assure the proper locking of the warp and weft wires;
Superior rigidity and greater stability;
Strong wear resistance and firm structure.

Usage:

Headlight stone guards
Car grille
Barbecue grill
Bird cage
Machine guards
Vibrating Screens
Architecture
Decorative grill

Specifications:

Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m, 60m to 90m.

2Mesh Single Intermediate Crimped Mesh
Wire Diameter Opening Open Area Rate
mm Inch mm Inch %
3.4 0.1338 9.3 0.3661 56.62
3.0 0.1181 9.7 0.3818 58.33
2.6 0.1023 10.1 0.3976 63.24
2.3 0.0905 10.4 0.4094 67.05
2.0 0.0787 10.7 0.4212 70.98
1.8 0.0708 10.9 0.4291 73.66
1.6 0.0629 11.1 0.4370 76.39
1.4 0.0551 11.3 0.4448 79.16
1.2 0.0472 11.5 0.4527 81.99
1.0 0.0393 11.7 0.4606 84.87
0.8 0.0314 11.9 0.4685 87.79

Other Specifications according to your requirements.

Packing: Crimped wire mesh is packed in rolls,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
