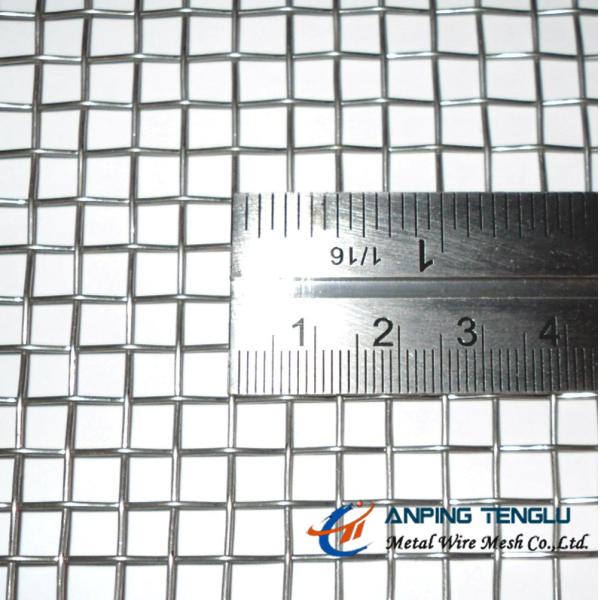

SS, Cu, Al Material Single Intermediate Crimped Wire Mesh, 4Mesh 0.6-3mm Wire
SS, Cu, Al Material Single Intermediate Crimped Wire Mesh, 4Mesh 0.6-3mm Wire
SS, Cu, Al Material Single Intermediate Crimped Wire Mesh, 4Mesh 0.6-3mm Wire
SS, Cu, Al Material Single Intermediate Crimped Wire Mesh, 4Mesh 0.6-3mm Wire
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5 rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
According to required quantity.
Packaging Details :
Each roll with polyfilm with water proof paper outside/wooden pallets.
Material :
Stainless Steel Wire, Carbon Steel Wire
Type :
Intermediate Crimped Mesh
Application :
Screen
Weave Style :
Plain Weave
Technique :
Pre-Crimped Then Woven
Certification :
ISO9001:2015
Description

SS, Cu, Al Material Single Intermediate Crimped Wire Mesh, 4Mesh 0.6-3mm Wire

Intermediate Crimped Wire Mesh

“Intermediate crimp” or simply “intercrimp” describes the popular crimp type that is used when woven wire mesh is manufactured. With intercrimp, both the warp wires (the wires that run the length of the roll) and shute wires (wires that run the width of the roll) are pre-crimped before the mesh is woven. Intermediate crimp is usually employed in coarser meshes to obtain large openings with relatively light wires. The hallmark of an intermediate crimp is the corrugations in the wire, which adds to the stability of the mesh. As a rule, the larger the opening size, the more number of crimps. The single intermediate crimped means the weft wire is pre-crimped and the warp wire is directly woven.

Weave Patterns:

SS, Cu, Al Material Single Intermediate Crimped Wire Mesh, 4Mesh 0.6-3mm Wire

Material:

Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel

Features:
Intercrimped assure the proper locking of the warp and weft wires;
Superior rigidity and greater stability;
Strong wear resistance and firm structure.

Usage:

Vibrating Screens
Architecture
Decorative grill
Cabinetry/mill work
Drainage

Specifications:

Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m, 60m to 90m.

4Mesh Single Intermediate Crimped Mesh
Wire Diameter Opening Open Area Rate
mm Inch mm Inch %
3.0 0.1181 3.35 0.1318 27.83
2.6 0.1023 3.75 0.1476 34.87
2.3 0.0905 4.05 0.1594 40.67
2.0 0.0787 4.35 0.1712 46.92
1.8 0.0708 4.55 0.1791 51.34
1.6 0.0629 4.75 0.1870 55.95
1.4 0.0551 4.95 0.1948 60.76
1.2 0.0472 5.15 0.2027 65.77
1.0 0.0393 5.35 0.2106 70.98
0.8 0.0314 5.55 0.2185 76.39
0.7 0.0275 5.65 0.2224 79.16
0.6 0.0236 5.75 0.2263 81.99

Other Specifications according to your requirements.

Packing: Crimped wire mesh is packed in rolls,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
