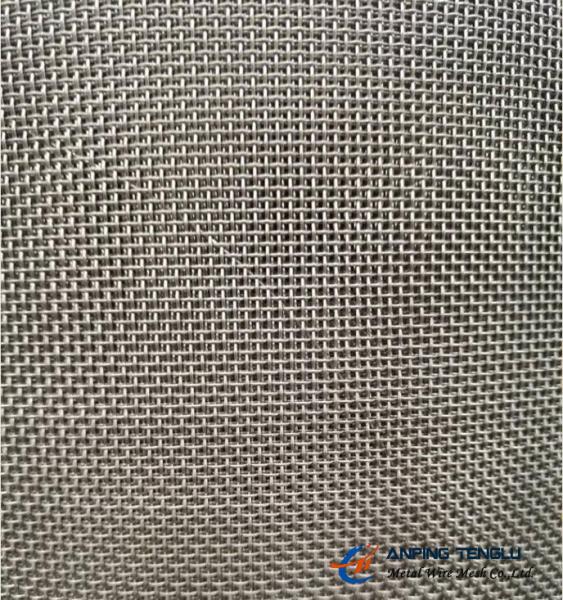

SUS410(S41000)/SUS430(S43000) Magnetic Stainless Steel Wire Mesh
SUS410(S41000)/SUS430(S43000) Magnetic Stainless Steel Wire Mesh
SUS410(S41000)/SUS430(S43000) Magnetic Stainless Steel Wire Mesh
SUS410(S41000)/SUS430(S43000) Magnetic Stainless Steel Wire Mesh
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5Rolls
Payment Terms :
T/T, Western Union, L/C at sight
Delivery Time :
in 25days
Packaging Details :
Ship polyester mesh with bublle film inside,plywood case outside. Or at your requests.
Material :
SUS410, SUS430
Mesh Counrs :
10 to 300
Wire Diameter :
0.04mm-0.9mm
Common Width :
48", 36";1.0m, 1.2m, 1.5m, 2.0m
Common Length :
100ft; 30m, 50m
Certification :
ISO9001:2015
Description

SUS410(S41000)/SUS430(S43000) Magnetic Stainless Steel Wire Mesh

410/430 Magnetic Stainless Steel Wire Mesh

410 stainless steel wire mesh is magnetic and of good corrosion resistance
430 stainless steel wire mesh has good resistance to stress corrosion and oxidation.

Material: SS410(SUS410,S41000), SS430(SUS430,S43000).

410 stainless steel: Has very good resistance to corrosion & oxidation.
430 stainless steel: Has magnetic properties similar to carbon steel but with much higher corrosion resistance. Commonly used in the food processing industry.

Chemical Composition(%)
Grade Ni Cr Si Mn C S P
410 ≤0.60 11.5-13.5 ≤1.00 ≤1.00 ≤0.15 ≤0.04 ≤0.03
430 ≤0.60 16.0-18.0 ≤0.75 ≤1.00 ≤0.12 ≤0.03 ≤0.04

Features:

410/430 stainless steel wire mesh has good thermal conductive performance than austenitic stainless steel series. Its thermal expansion coefficient is smaller than austenitic. Resistant to thermal fatigue, add the stable element titanium, mechanical performance of welded parts is good.

With magnetism, is also called magnetic stainless steel wire mesh, stainless iron wire mesh, magnetic stainless iron wire mesh.

Applications:

Mainly used in manufacturing parts which are resistant to air,steam,water and oxidizing acid corrosion.
Used for industrial filtering, food industry filtering, sugar industry filtering etc.

Specifications:

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
10X10 0.025 0.64 0.075 1.91 56.3 41.2
10X10 0.02 0.51 0.08 2.03 64 26.1
12X12 0.023 0.584 0.06 1.52 51.8 42.2
12X12 0.02 0.508 0.063 1.6 57.2 31.6
14X14 0.023 0.584 0.048 1.22 45.2 49.8
14X14 0.02 0.508 0.051 1.3 51 37.2
16X16 0.018 0.457 0.0445 1.13 50.7 34.5
18X18 0.017 0.432 0.0386 0.98 48.3 34.8
20X20 0.02 0.508 0.03 0.76 36 55.2
20X20 0.016 0.406 0.034 0.86 46.2 34.4
24X24 0.014 0.356 0.0277 0.7 44.2 31.8
30X30 0.013 0.33 0.0203 0.52 37.1 34.8
30X30 0.012 0.305 0.0213 0.54 40.8 29.4
30X30 0.009 0.229 0.0243 0.62 53.1 16.1
35X35 0.011 0.279 0.0176 0.45 37.9 29
40X40 0.01 0.254 0.015 0.38 36 27.6
50X50 0.009 0.229 0.011 0.28 30.3 28.4
50X50 0.008 0.203 0.012 0.31 36 22.1
60X60 0.0075 0.191 0.0092 0.23 30.5 23.7
60X60 0.007 0.178 0.0097 0.25 33.9 20.4
70X70 0.0065 0.165 0.0078 0.2 29.8 20.8
80X80 0.0065 0.165 0.006 0.15 23 23.2
80X80 0.0055 0.14 0.007 0.18 31.4 16.9
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04

Other specifications according to your request.

Packing:

SUS410(S41000)/SUS430(S43000) Magnetic Stainless Steel Wire Mesh
