Nickel-200/201/270 Plain Weave Wire Mesh, 20mesh to 60mesh With 0.12-0.5mm Wire
Nickel-200/201/270 Plain Weave Wire Mesh, 20mesh to 60mesh With 0.12-0.5mm Wire
Nickel-200/201/270 Plain Weave Wire Mesh, 20mesh to 60mesh With 0.12-0.5mm Wire
Nickel-200/201/270 Plain Weave Wire Mesh, 20mesh to 60mesh With 0.12-0.5mm Wire
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5Rolls
Payment Terms :
T/T, Western Union, L/C at sight
Delivery Time :
in 25days
Packaging Details :
Ship polyester mesh with bublle film inside,plywood case outside. Or at your requests.
Material :
Pure Nickel, Alloy Nickel
Mesh Counrs :
20 to 80
Wire Diameter :
0.15mm-0.5mm
Common Width :
48", 36"; 1.0m, 1.2m, 1.5m
Common Length :
100ft; 30m
Certification :
ISO9001:2015
Description

Nickel-200/201/270 Plain Weave Wire Mesh, 20mesh to 60mesh With 0.12-0.5mm Wire

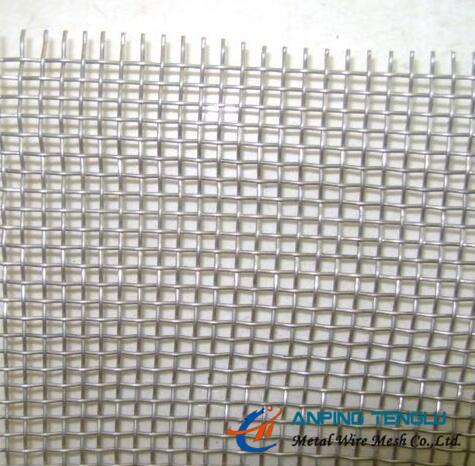

Nickel Woven Wire Mesh

Nickel wire mesh/cloth is produced in plain weave. The wire mesh fabric is manufactured by weaving machines as mesh rolls, after 13 whole weaving process, the mesh surface flatness would be better. Nickel wire cloth is most commonly used in fuel cell technology flied.

Nickel and nickel alloy oxidizes slowly under room temperature, an oxide layer forms on the surface and prevents further corrosion, the nickel takes excellent corrosion resistance to alkaline and neutral solution such as carbonate, chloride, nitrate solution and fatty acid, its property is also stable in air, fresh water and sea water.

Material:

Pure Nickel Series: Nickel 200 (EN 2.4060), Nickel 201 (EN 2.4061), Nickel 270 (EN 2.4050)
Nickel Alloy Series: Cr20Ni80 (EN 2.4869)

Chemical Composition(%)
Element Ni Fe C Mn Si Cu S
200 99 0.40 0.15 0.35 0.35 0.25 0.01
201 99 0.40 0.02 0.35 0.35 0.25 0.01

Nickel 200 and 201 are considered as commercially pure. With 99.6% grade, the low carbon content of 201 prevents the metal alloy from becoming brittle when exposed to temperatures 600F and above. The Nickel 270 is considered as high purity grade metal alloy, produced through powder metallurgy.

Features:

High resistance to corrosion;
High electrical conductivity;
Thermal conductivity;
Ductility.

Applications:

In the EMI & RFI shielding industries, for shielded room and faraday cage.


In battery industries, as an electrode substrates or current collectors part of fuel cells.


In filtration and separation industries, for filters in sulfuric acid and hydrochloric acid environment.


In water treatment industries, for sea-water exchange and evaporator


In nuclear industries, used in the manufacture of uranium enrichment isotope separation equipment.

Specifications:

Mesh Counts: 20mesh to 80mesh

Wire Diameter: 0.12mm to 0.5mm

Standard Roll Width: 0.914m, 1.0m, 1.22m and 1.5m

Standard Roll Lenght: 30m

Mesh/Inch Wire Diameter Aperture Open Area Weight
mm mm % Kgs/㎡
20 0.5 0.770 36.75 2.83
20 0.45 0.820 41.68 2.29
20 0.40 0.870 46.92 1.81
20 0.35 0.920 52.47 1.38
20 0.30 0.970 58.33 1.02
20 0.27 1.000 62.00 0.82
20 0.25 1.020 64.50 0.70
20 0.23 1.040 67.05 0.59
20 0.21 1.060 69.66 0.50
20 0.19 1.080 72.31 0.41
20 0.17 1.100 75.02 0.32
20 0.15 1.120 77.77 0.25
22 0.40 0.754 42.71 2.00
22 0.35 0.804 48.56 1.52
22 0.30 0.854 54.78 1.12
22 0.27 0.884 58.69 0.91
22 0.25 0.904 61.38 0.77
22 0.23 0.924 64.12 0.66
22 0.21 0.944 66.93 0.54
22 0.19 0.964 69.79 0.44
22 0.17 0.984 72.71 0.35
22 0.15 1.004 75.70 0.27
24 0.35 0.708 44.79 1.67
24 0.30 0.758 51.34 1.22
24 0.27 0.788 55.48 0.99
24 0.25 0.808 58.33 0.85
24 0.23 0.828 61.25 0.71
24 0.21 0.848 64.25 0.59
24 0.19 0.868 67.31 0.49
24 0.17 0.888 70.45 0.39
24 0.15 0.908 73.66 0.31
24 0.13 0.928 76.94 0.23
24 0.12 0.938 78.60 0.19
30 0.35 0.496 34.41 2.07
30 0.30 0.546 41.68 1.53
30 0.27 0.576 46.39 1.24
30 0.25 0.596 49.66 1.05
30 0.23 0.616 53.04 0.90
30 0.21 0.636 56.54 0.75
30 0.19 0.656 60.15 0.61
30 0.17 0.676 63.87 0.49
30 0.15 0.696 67.70 0.37
30 0.13 0.716 71.64 0.28
30 0.12 0.716 73.66 0.24
40 0.30 0.335 27.83 2.04
40 0.27 0.365 33.03 1.64
40 0.25 0.385 36.75 1.42
40 0.23 0.405 40.67 1.19
40 0.21 0.425 44.79 1.00
40 0.19 0.445 49.11 0.82
40 0.17 0.465 53.62 0.65
40 0.15 0.485 58.33 0.51
40 0.13 0.505 63.24 0.37
40 0.12 0.515 65.77 0.32
50 0.25 0.258 25.79 1.77
50 0.23 0.278 29.94 1.50
50 0.21 0.298 34.41 1.25
50 0.19 0.318 39.18 1.02
50 0.18 0.328 41.68 0.92
50 0.17 0.338 44.26 0.82
50 0.15 0.358 49.66 0.63
50 0.13 0.379 55.36 0.48
50 0.12 0.388 58.33 0.41
60 0.23 0.193 20.85 1.79
60 0.21 0.213 25.39 1.50
60 0.19 0.233 30.38 1.22
60 0.17 0.253 35.81 0.98
60 0.15 0.273 41.68 0.76
60 0.13 0.293 48.01 0.57
60 0.12 0.303 51.34 0.49
80 0.13 0.187 34.87 0.76
80 0.12 0.197 38.69 0.65
80 0.10 0.217 46.92 0.45
80 0.09 0.227 51.34 0.36

Other specifications according to your request.

Packing:

Nickel-200/201/270 Plain Weave Wire Mesh, 20mesh to 60mesh With 0.12-0.5mm Wire
