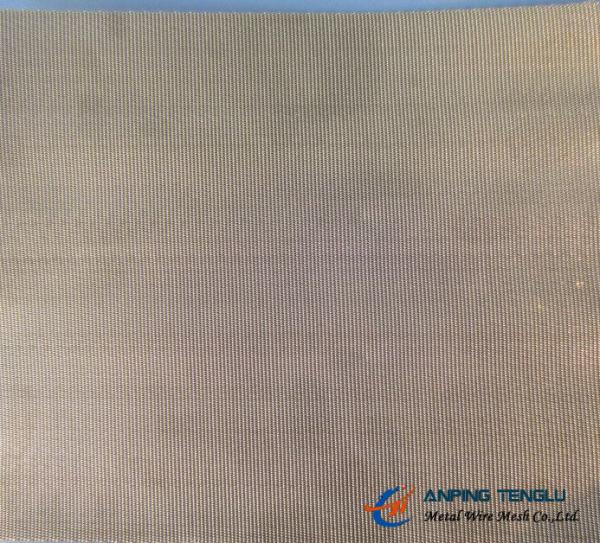

Durable Plain Dutch Weave Mesh, 100*600 With SS304L/316L With Heat Resistance
Durable Plain Dutch Weave Mesh, 100*600 With SS304L/316L With Heat Resistance
Durable Plain Dutch Weave Mesh, 100*600 With SS304L/316L With Heat Resistance
Durable Plain Dutch Weave Mesh, 100*600 With SS304L/316L With Heat Resistance
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
According to required quantity.
Packaging Details :
Packed in rolls, winding on a paper tube, wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallets.
Material :
SS304L, SS316L
Mesh Counts :
100×600
Wire Diameter :
0.10mm×0.045mm
Weave Style :
Plain Dutch Weave
Roll Width :
1.0m, 1.2m, 1.5m, 1.6m; 36", 48"
Type :
Wire Cloth
Features :
Excellent filtration performance
Certification :
ISO9001:2015
Description

Durable Plain Dutch Weave Mesh, 100*600 With SS304L/316L With Heat Resistance

Stainless Steel Plain Dutch Weave Wire Mesh

Plain dutch weaving mesh is produced by use of coarse mesh in the warp and a fine mesh with relatively smaller wire the fill. Has greater strength with very fine openings. Primarily used as filter cloth. The shapes and position of the openings aid particle retention and increase filter cake formation.

Plain dutch weave mesh is most frequently used for high pressure filtration prcesser to separate from other medium in industry of spaceflight, petroleum, chemical, etc.

Characteristics:

1. Warp wire has bigger dia than shute wire
2. Shute wires are possibly bound close to each other
3. High accuracy
4. Nominal or no pressure loss while filtration
5. Supreme filtration surface
6. More stable than square and rectangular wire mesh

Features: This mesh is strong and stable, easy to clean and with a good flow rate suitable for high pressure liquid/solid separation, with excellent filtration performance.

Material: Stainless Steel 304, 304L, 316, 316L, etc.

Weaving methods: Plain Dutch Weave("Warp×Weft" same meaning to "Warp×Shute")

Durable Plain Dutch Weave Mesh, 100*600 With SS304L/316L With Heat Resistance

Woven as a plain weave, but with the warp wires of greater diameter than the weft wires. The weft wires are very close together so that a so-called zero-mesh structure is formed; while the warp wires are thicker and arranged wider apart.

Application:
These are commonly used for filter candles in edible oil refining, large mechanical loads for pre-coat filters, food and pharmaceutical filtration.

Durable Plain Dutch Weave Mesh, 100*600 With SS304L/316L With Heat Resistance

Specifications

Roll Width: 0.2m-1.6m

Roll Length: 10m, 20m, 30m; 100ft

Mesh Counts Wire Diameter Aperture Weight
mm Inch um kgs/㎡ lbs/㎡
100×600 0.10×0.045 0.0039×0.0017 - 0.55 1.21

Common Specifications of Plain Dutch Wire Mesh

Mesh Counts

warp×weft

(Mesh/Inch)

Wire Diameter

warp×weft

(mm)

Aperture Size

(μm)

Weight

(kg/㎡)

Thickness

(mm)
7×40 0.9×0.71 347 6.65 2.32
7×44 0.71×0.63 319 5.55 1.97
8×45 0.8×0.6 310 5.7 2.00
8.5×60 0.63×0.45 296 4.16 1.53
8×85 0.45×0.315 275 2.73 1.08
10×90 0.45×0.28 249 2.57 1.01
10×76 0.5×0.355 248 3.24 1.21
12×86 0.45×0.315 211 2.93 1.08
12×64 0.56×0.4 3.89 1.36
12.5×76 0.45×0.355 192 3.26 1.16
14×100 0.40×0.28 182 2.62 0.96
14×110 0.355×.0.25 177 2.28 0.855
14×76 0.45×.0.355 173 3.33 1.16
16×100 0.4×0.28 160 2.7 0.96
17×120 0.355×0.224 155 2.19 0.803
16×120 0.28×0.224 145 1.97 0.728
20×140 0.315×0.20 133 0.715
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.20 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.60 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.70 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.60 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135

Packing:

Durable Plain Dutch Weave Mesh, 100*600 With SS304L/316L With Heat Resistance
