80×350(OPI) Plain Dutch Mesh Cloth With High Temperature Resistance
80×350(OPI) Plain Dutch Mesh Cloth With High Temperature Resistance
80×350(OPI) Plain Dutch Mesh Cloth With High Temperature Resistance
80×350(OPI) Plain Dutch Mesh Cloth With High Temperature Resistance
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
According to required quantity.
Packaging Details :
Packed in rolls, winding on a paper tube, wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallets.
Material :
Stainless Steel Wire
Mesh Counts :
80×350
Wire Diameter :
0.10X0.086mm
Weave Style :
Plain Dutch Weave
Roll Width :
1.0m, 1.2m, 1.5m; 36", 48"
Type :
Microninc Filter Cloth
Application :
Filtration Industry
Certification :
ISO9001:2015
Description

80×350(OPI) Plain Dutch Mesh Cloth With High Temperature Resistance

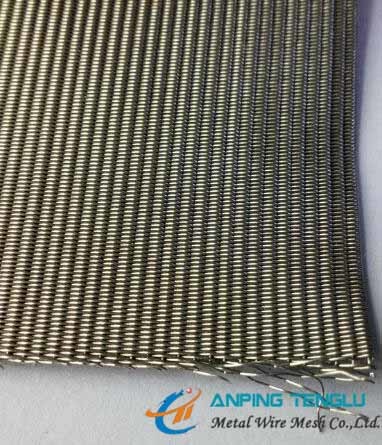

Stainless Steel Plain Dutch Weave Wire Mesh

The Plain Dutch Weave Wire Mesh Cloth or wire filter cloth is woven the same way as the plain weave wire cloth. The exception of the plain Dutch wire cloth weave is that the warp wires are heavier than the Shu-re wires. The spacing is also wider. They are used for industrial application; especially as filter cloth and for separation purposes. Plain Dutch weaves offer strength and rigidity along with fine filtration capabilities. Twilled Dutch weaves offer even greater strength and finer filtration ratings. In a twilled weave, the wires cross two under and two over, allowing heavier wires and higher mesh counts.

Characteristics:

1. Warp wire has bigger dia than shute wire
2. Shute wires are possibly bound close to each other
3. High accuracy
4. Nominal or no pressure loss while filtration
5. Supreme filtration surface
6. More stable than square and rectangular wire mesh

Features:

Excellent filtration performance;

Acid resistance;
High temperature resistance;
Tensil and abrasion resistence;
Stability of filtration;
Fine and high precision;

Material: Stainless Steel 304, 304L, 316, 316L, etc.

Weaving methods: Plain Dutch Weave("Warp×Weft" same meaning to "Warp×Shute")

80×350(OPI) Plain Dutch Mesh Cloth With High Temperature Resistance

Dutch weave wire mesh also known as “Hollander weave mesh” is ideal for high-pressure filtration as this is stronger and more durable than plain weave wire meshes. The Dutch uses larger diameters and each weave pattern is made up of a limited number of warp wires, which are interwoven with weft wires creating a cloth that can withstand strong pressure. This type of mesh is usually used for liquid filtration for petrochemical, aerospace, pharmaceutical and even on wastewater treatment facilities.

Application:
Dutch weave filter mesh provides superior filtration capabilities for a wide range of applications, including pressure, fuel and liquid filters for the aerospace, petrochemical, pharmaceutical, mining and waste water treatment industries.

80×350(OPI) Plain Dutch Mesh Cloth With High Temperature Resistance

Specifications

Roll Width: 0.2m-1.6m

Roll Length: 10m, 20m, 30m; 100ft

Mesh Counts Wire Diameter Aperture Weight
mm Inch um kgs/㎡ lbs/㎡
80×350 0.10×0.086 0.0039×0.0033 - 0.84 1.84

Common Specifications of Plain Dutch Wire Mesh

Mesh Counts

warp×weft

(Mesh/Inch)

Wire Diameter

warp×weft

(mm)

Aperture Size

(μm)

Weight

(kg/㎡)

Thickness

(mm)
7×40 0.9×0.71 347 6.65 2.32
7×44 0.71×0.63 319 5.55 1.97
8×45 0.8×0.6 310 5.7 2.00
8.5×60 0.63×0.45 296 4.16 1.53
8×85 0.45×0.315 275 2.73 1.08
10×90 0.45×0.28 249 2.57 1.01
10×76 0.5×0.355 248 3.24 1.21
12×86 0.45×0.315 211 2.93 1.08
12×64 0.56×0.4 3.89 1.36
12.5×76 0.45×0.355 192 3.26 1.16
14×100 0.40×0.28 182 2.62 0.96
14×110 0.355×.0.25 177 2.28 0.855
14×76 0.45×.0.355 173 3.33 1.16
16×100 0.4×0.28 160 2.7 0.96
17×120 0.355×0.224 155 2.19 0.803
16×120 0.28×0.224 145 1.97 0.728
20×140 0.315×0.20 133 0.715
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.20 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.60 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.70 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.60 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135

Packing:

80×350(OPI) Plain Dutch Mesh Cloth With High Temperature Resistance
