Gas-Liquid Filter Mesh, High Penetrated(20-100/160, 30-150,70-400, 170-600, 180-700 Model)
Gas-Liquid Filter Mesh, High Penetrated(20-100/160, 30-150,70-400, 170-600, 180-700 Model)
Gas-Liquid Filter Mesh, High Penetrated(20-100/160, 30-150,70-400, 170-600, 180-700 Model)
Gas-Liquid Filter Mesh, High Penetrated(20-100/160, 30-150,70-400, 170-600, 180-700 Model)
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5 rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
According to required quantity.
Packaging Details :
Wrapped with transparent polythene film or as requirements
Material :
Stainless Steel, Monel, Aluminum...
Type :
High Penetrated Type
Model :
20-100, 20-160, 30-150,70-400, 170-600, 180-700 Model
Width :
10mm-120mm
Length :
10m-100m
Applications :
for the separation of liquid in the gas.
Certification :
ISO9001:2015
Description
Gas-Liquid Filter Mesh, High Penetrated(20-100/160, 30-150,70-400, 170-600, 180-700 Model)
High Penetrated Type Knitted Wire Mesh

A variety of metal wire and non-metallic silk production, the specific absorption of evaporation, and high temperatures, strong corrosion resistance, the elimination of steam in the attach the gas or liquid droplets. Mainly used for processing wire mesh demister, for the separation of liquid in the gas. Also can be extrusion forming, used in the manufacture of filter equipment; Metal structured packing, sealing material; Damping; Electromagnetic interference shielding device, etc

Materials:

Stainless steel: 201, 202, 302, 304, 304L, 316, 316L, 321, 430, etc
Nickel: N2, N4, N6, Cr20Ni80, Monel400, Monel600

Properties:
Good distribution of pressure peaks;
Dispersion of air and moisture;
Easy washable and dryable;
Recyclable and non-poisonous.
Features:
A variety of metal wire and non-metallic silk production, the specific absorption of evaporation, and high temperatures, strong corrosion resistance, the elimination of steam in the attach the gas or liquid droplets.
Applications:

Mainly used for processing wire mesh demister, for the separation of liquid in the gas. Also can be extrusion forming, used in the manufacture of filter equipment; Metal structured packing, sealing material; Damping; Electromagnetic interference shielding device, etc.


Gas-Liquid Filter Mesh, High Penetrated(20-100/160, 30-150,70-400, 170-600, 180-700 Model)


Specifications:

Model(N-M) Material Wire Diameter Mesh Width Mesh Length

20-100, 20-160, 30-150,70-400, 170-600, 180-700

 Stainless Steel 0.1-0.3mm 10-1600mm 10-100m
Carbon Steel 0.1-0.3mm 50-500mm 10-100m
Copper Brass 0.1-0.3mm 100-500mm 10-100m
Aluminum 0.1-0.3mm 100-500mm 10-100m
Nickel 0.1-0.3mm 10-1600mm 10-100m
Notes:
1. N-M model: it has "N" openings in the mesh width of "M" mm.
2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm.
3. The mesh can be made into single strand, double strand, multi-strand etc.
4. The surface include flattened and crimped.

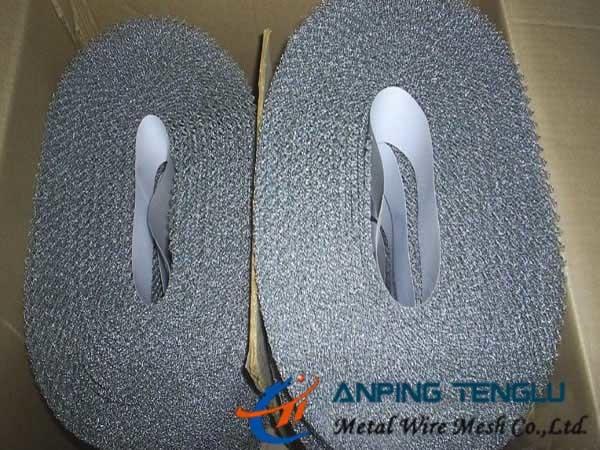

Packing: Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.
Gas-Liquid Filter Mesh, High Penetrated(20-100/160, 30-150,70-400, 170-600, 180-700 Model)
