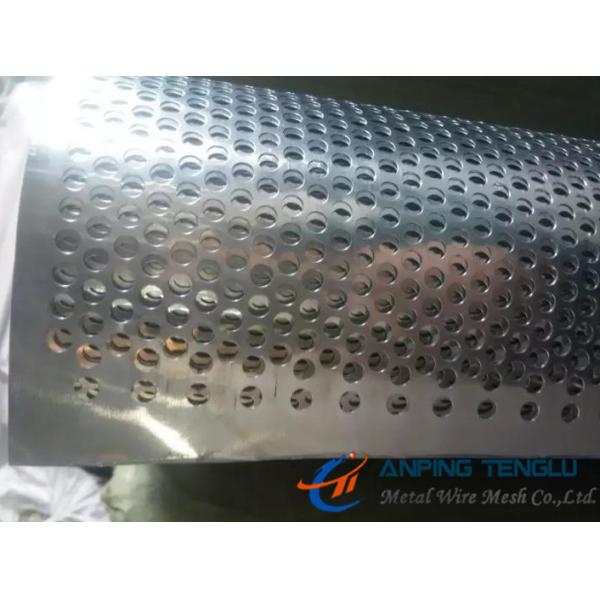

Stainless Steel Round Hole Perforated Metal Coil, 0.2mm to 3mm Thickness
Stainless Steel Round Hole Perforated Metal Coil, 0.2mm to 3mm Thickness
Stainless Steel Round Hole Perforated Metal Coil, 0.2mm to 3mm Thickness
Stainless Steel Round Hole Perforated Metal Coil, 0.2mm to 3mm Thickness
Stainless Steel Round Hole Perforated Metal Coil, 0.2mm to 3mm Thickness
Stainless Steel Round Hole Perforated Metal Coil, 0.2mm to 3mm Thickness
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
20pieces
Payment Terms :
T/T, Western Union, L/C at Sight
Delivery Time :
Generally 20days(According to your quantity need)
Packaging Details :
Waterproof paper or cartons, then on pallets. Or your special require.
Material :
Stainless Steel 304, 316
Hole Shape :
Round Hole
Technique :
Perforated
Min Hole :
0.3mm
Min Pitch :
0.4mm
Thickness :
0.4mm-3mm Plate
Certification :
ISO9001:2015
Description

Stainless Steel Round Hole Perforated Metal Coil, 0.2mm to 3mm Thickness

Round Hole Perforated Metal Coil Mesh also know as punched metal, the most popular and versatile metal mesh products. They are made from the sheets or coils of metals, which are uniformly punched, have a variety of hole sizes, shapes and configuration. Perforated metal has various of patterns by using the different molds.Perforated metal sheets can be thick or thin in sheet thickness of materials, and it also has small or large aesthetically appealing openings.

We also can shear or form the perforated sheets to any specification or desired shape. Because of those excellent characteristic, the perforated coil metal mesh screen can be widely used in industrial, decoration, equipment guards, screens, ceiling, curtain wall, ventilation, etc.

Material: Stainless Steel, aluminum, mild steel, galvanized, brass, copper and foil.

Pattern Angle of Round Hole Perforated Metal:

Stainless Steel Round Hole Perforated Metal Coil, 0.2mm to 3mm Thickness

Applications:

Perforated coil have a variety of applications in architectural,commercial,industrial and decoration.Such as suspended ceiling,curtain wall cladding,interior decoration,security, ventilation, filters, vents, guards, shelving, window protection,screens, diffusers,acoustics and soundproofing, louvres and ventilation, etc.

Specifications:

Plate material Thickness of metal(mm ) Hole Dia. (mm) Pitch(mm) Sheet Width(m)
Rolling plate 0.2 6 2 1
0.35 5 4 1
0.45 6 3 1
0.8 3 3 1
Flat plate 0.5 1 1 1
0.55 1.1 2.2 1
0.55 1.5 2.8 1
0.8 1.5 1.5 1
0.8 2 3.4 1
1.5 2 2 1
1.5 5 8.0 1
3 5 16 1
Stainless steel plate 0.5 1 1 1
0.8 1.5 1.5 1
1 2 2 1
2 5 16 1
Aluminum plate 0.5 1 1 1
0.8 3 3 1
1.6 2 2 1
3 4 16 1

Other Specifications according to your requirements.
