Stainlesss Steel Eyelink Belt (Wire Ring Belt), AISI Standard for Food Grade
Stainlesss Steel Eyelink Belt (Wire Ring Belt), AISI Standard for Food Grade
Stainlesss Steel Eyelink Belt (Wire Ring Belt), AISI Standard for Food Grade
Stainlesss Steel Eyelink Belt (Wire Ring Belt), AISI Standard for Food Grade
Stainlesss Steel Eyelink Belt (Wire Ring Belt), AISI Standard for Food Grade
Stainlesss Steel Eyelink Belt (Wire Ring Belt), AISI Standard for Food Grade
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5sheet
Price :
usd
Delivery Time :
Generally 20days(According to your quantity need)
Packaging Details :
Waterproof Paper, Wooden Case
Material :
SS304, SS304L, SS316, SS316L
Standard :
AISI
Wire Diameter :
1.6mm to 4mm
Cross Rod Diameter :
4mm to 8mm
Belt Gap :
2mm to 50mm
Belt Width :
50mm to 7m
Length :
Any desired length.
Certification :
ISO9001:2015
Description

Stainlesss Steel Eyelink Belt (Wire Ring Belt), AISI Standard for Food GradeStainlesss Steel Eyelink Belt (Wire Ring Belt), AISI Standard for Food Grade

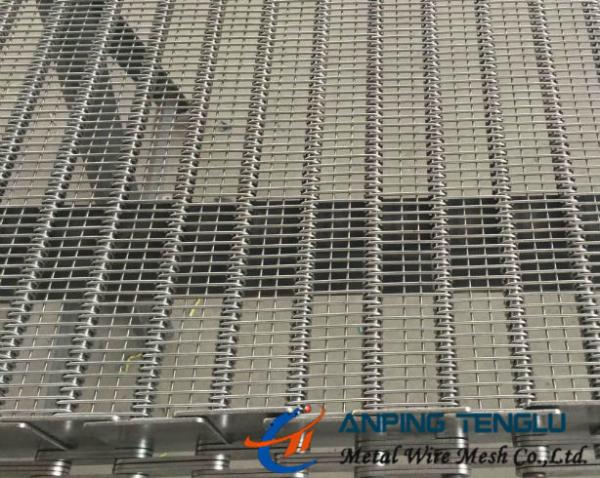

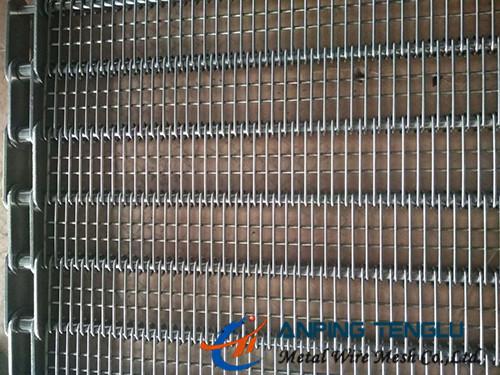

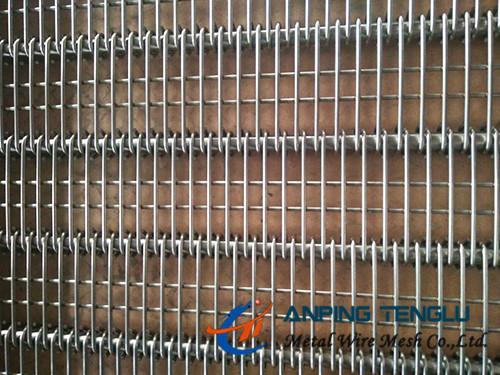

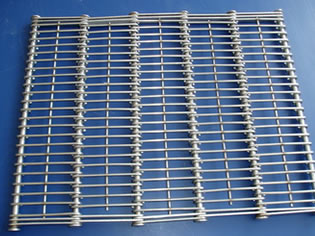

Stainless Steel Eyelink Belt

Eyelink belts are durable and designed to be flexible, combine a flat, stable surface with the dimensional stability and robustness of metal and are well suited to convey heavy loads and unstable or fragile products that require good support from the conveyor belt. This kind of belt is ideal for food freezing, frying, cleaning, baking and other applications where no cross support is required.

Features:

High strength and excellent carrying ability.
Open flat surface for superb air circulation and fluid drainage.
High reliability, durability with long service life even being used in 24/7 product line.
A wide range of materials and sophisticated designs for virtually every application.
Offer continuous product support minimizing product marking.
Smooth and single level surface without product entrapment.
Excellent resistance against shock and lateral forces.

Applications:

This belt is familiar in a diverse field of applications since the eye link conveyor belt is a really stable, accurate and trustworthy belt. Especially the combination with the opportunities in driving elements causes the belt to be used in many different branches and markets. Several common examples are:

Oven belts in bread, pastry and potato processing industries
Belts in cooling and freezing systems
Diverse applications in potato-. grocery and fruit processing industries
Belts in sterilisation tunnels for for example the pharmaceutical industry
Belts in drying and pasteurizing systems
Belts in industrial cleaning systems.

Specifications:

Standard Eyelink Belt Specifications

Belt Pitch

(Inch)

Eye flex Wire Dia.

(Inch)

Cross Rod Dia.

(Inch)

Minimum Gap Spacing

(Inch)
0.98" 0.08" 0.2" 0.08"
1.00" 0.08" 0.2" 0.08"
1.18" 0.06" 0.16" 0.06"
1.18" 0.08" 0.16" 0.08"
1.18" 0.08" 0.2" 0.08"
1.25" 0.08" 0.2" 0.08"
1.97" 0.06" 0.2" 0.06"
1.97" 0.06" 0.2" 0.06"
1.97" 0.08" 0.2" 0.08"
1.97" 0.1" 0.2" 0.1"
1.97" 0.1" 0.24" 0.1"
1.97" 0.12" 0.31" 0.12"
2.00" 0.06" 0.2" 0.06"
2.00" 0.06" 0.31" 0.06"
2.00" 0.08" 0.24" 0.08"
2.00" 0.08" 0.31" 0.08"
2.00" 0.10" 0.24" 0.10"
2.00" 0.10" 0.31" 0.10"
2.00" 0.12" 0.31" 0.12"
2.00" 0.16" 0.31" 0.16"
2.36" 0.08" 0.2" 0.08"
2.36" 0.10" 0.2" 0.10"
2.76" 0.16" 0.28" 0.16"
2.95" 0.10" 0.2" 0.10"
2.95" 0.10" 0.31" 0.10"
3.94" 0.12" 0.31" 0.12"

Please let us know:

1) Material

2) Wire Diameter
3) Spiral Pitch
4) Rod Diameter
5) Rod Pitch
6) Total Width
7) Length
