Stainless Steel Micro Hole Wire Cloth

We offer the comprehensive range of micron wire cloths, ranging to ultra fine options and manufactured from stainless steel and all metallic materials and alloys. All wire cloth is manufactured using the most modern production equipment under clean conditions. Our woven wire filter cloths are ideally suited to surface filtration applications, and have proved their worth in many different environments and situations.

Materials: SS304, SS304L, SS316, SS316L and Other Stainless Steel Alloy. Aluminum, Brass, Nickel, Hastelloy and other metal are available.

Weaving Type:

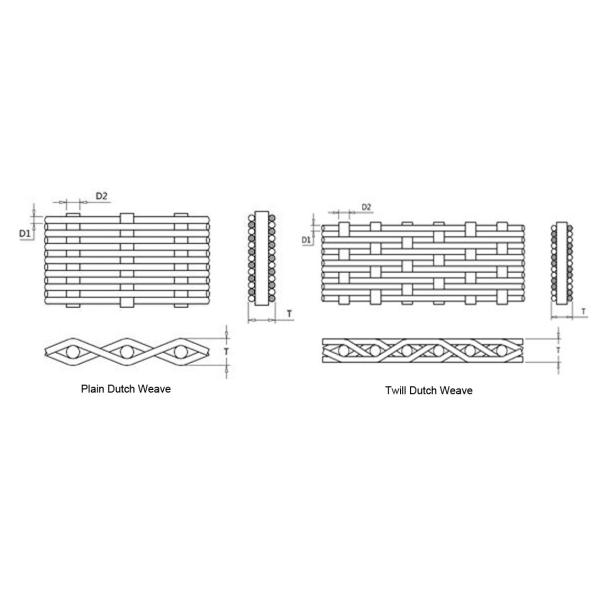

Micronic (Dutch Weaves PDW and TDW)- The dutch weaves (PDW, TDW) are thick, strong; light-tight meshes which are used primarily in fluid, vacuum, and pressure filtration of liquids and gases. These are woven to precise tolerances and their openings are actually tiny curved, triangular tunnels.

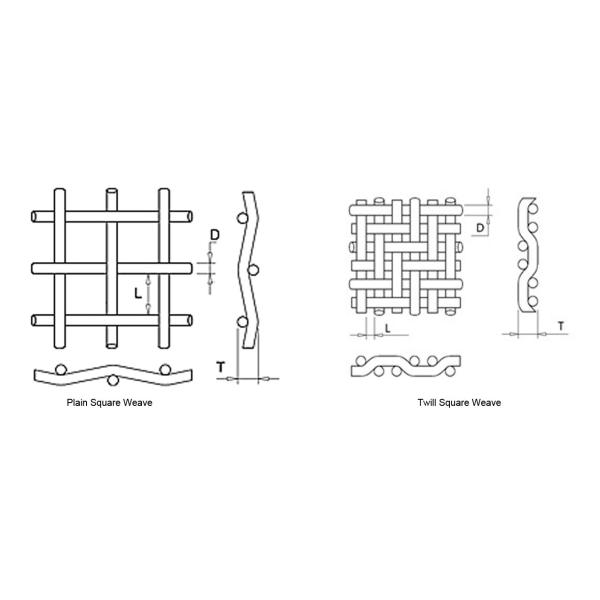

Micronic (Square Weaves PSW and TSW) - The square weaves (PSW, TSW) are woven with straight through square holes, are thin and flexible, and are often used in the separation and classification of solid particles. These square weaves have very high flow rates and square see through openings.

Features:

Accuracy of weave.

Rigidity.

Regularity.
High stability.
Corrosion resistance.
Thermal resistance.
Resistance to moisture.
No static loading.
Ease of fabrication.

Optimum flow rates.

Narrow pore size distribution.
Precise alignment of filter pores.
Excellent resistance to abrasion.
No particle dissolution.
Easy to clean.
Excellent levels of plasticity.
Chemical and thermal resistance.
Smooth surface structure.
High levels of reliability.

Applications:

Pressure filters for fine filtration in hydraulic steering equipment.
Oil and fuel filters.
Pressure and vacuum filters.
As porous media for fluid beds.
Filter candles.
Medical science.
Food and beverage industry.
Plastics industry.

Specifications:

Standard Roll Width: 1m or 48";

Standard Roll Length: 30m or 100ft.
