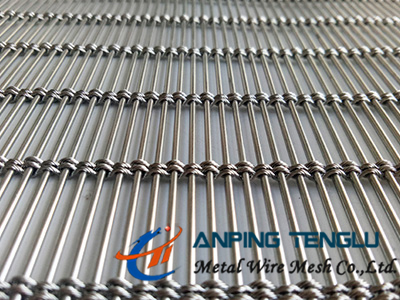

Cable and Rod Metal Mesh Screen, Mainly Stainless Steel, Aluminum, Copper
Cable and Rod Metal Mesh Screen, Mainly Stainless Steel, Aluminum, Copper
Cable and Rod Metal Mesh Screen, Mainly Stainless Steel, Aluminum, Copper
Cable and Rod Metal Mesh Screen, Mainly Stainless Steel, Aluminum, Copper
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
In 25days(According to required quantity)
Packaging Details :
Seaworthy wooden packing or as your requirement.
Material :
Stainless Steel, Aluminum, Copper
WeaveType :
Cable Rod Type
Max Width :
6m
Max Length :
120m
Applications :
Decorative mesh for building.
Certification :
ISO9001:2015
Description
Cable and Rod Metal Mesh Screen, Mainly Stainless Steel, Aluminum, Copper
Cable and Rod Metal Mesh for Architecture and Decoration
Material: Stainless Steel, Aluminum, Copper.

Features:

Aesthetic and attractive appeal.
High strength and unique texture.
Bright transparency and refined structure.
Fashionable design and practical function.
UV resistance and fire resistance.
Shock resistance and impact resistance.
Excellent sound insulation and safety performance.
More optional choice and long service life.

Applications: Facade, Celing, Screen, Partitions, Elevators, Walls, Curtains, Safety and Security, Column Covers, Interior Design, Solar Management, etc.
Cable and Rod Metal Mesh Screen, Mainly Stainless Steel, Aluminum, Copper
Cable Rod Architectural Decoration Specifications:
Rod Cable Mesh Specifications
Material Cable Dia. Cable Pitch Rod Dia. Rod Pitch Thickness Max Width Max Length
SS 1mm×4 26.4mm 1.5mm 4mm 3.5mm 6m 120m
SS 2.75mm×2 40mm 4mm 14.5mm 9.5mm 6m 60m
SS 2.75mm×3 110mm 4mm 14.5mm 9.5mm 6m 60m
SS 2.5mm×4 80mm 3mm 6.5mm 8mm 6m 60m
SS 2mm×3 65mm 3mm 13mm 7mm 6m 120m
SS 2.75mm×3 120mm 4mm 13mm 9.5mm 6m 100m
SS 2mm×4 50mm 3mm 6mm 7mm 6m 60m
SS 2mm×4 44mm 3mm 6mm 7mm 6m 60m
SS 2mm×4 76mm 3mm 6mm 7mm 6m 60m
SS 2mm×3 80mm 3mm 10mm 7mm 6m 120m
SS 1mm×4 36mm 2mm 3.75mm 4mm 6m 120m
SS 1mm×4 36mm 2mm 4mm 3.5mm 6m 120m
SS, Al 2.5mm×4 50mm 3mm 7mm 8mm 6m 100m
SS 2mm×4 80mm 3mm 7mm 7mm 6m 100m
SS 2.5mm×4 50mm 3mm 6mm 8mm 6m 60m
SS 4mm×4 47.5mm 3mm 15mm 11mm 6m 100m
SS 2.75mm×3 68mm 4.5mm 14.5mm 10mm 6m 100m
SS 2.5mm×5 85mm 2mm 6mm 7mm 6m 100m
SS 2mm×5 50mm 3mm 10mm 7mm 6m 100m
SS, Al 2mm 6mm 2mm 8mm 6mm 3m 30m
SS 1.6mm 3.2mm 0.6×1.75mm 6mm 3.8mm 4m 30m
SS 3mm 5mm 3mm 10mm 9mm 6m 30m
SS, Al 1.6mm 3.2mm 3mm 10mm 6.2mm 3m 30m
Cu 0.48mm 3.5mm 0.5mm 1.6mm 1.5mm 4m 120m
SS 2.5mm 7mm 2mm 7mm 7mm 4m 36m
SS 2.5mm 5mm 2mm 6mm 7mm 6m 60m
SS 2.5mm 6mm 2mm 8mm 7mm 4m 60m
SS 2.5mm 6mm 2mm 8mm 5mm 4m 30m
Note: “SS”-Stainless Steel; “Cu”-Copper; “Al”-Aluminum.
Special without in the chart is available as your request.
Seaworthy Packing: waterproof film then in carton or wooden case.
