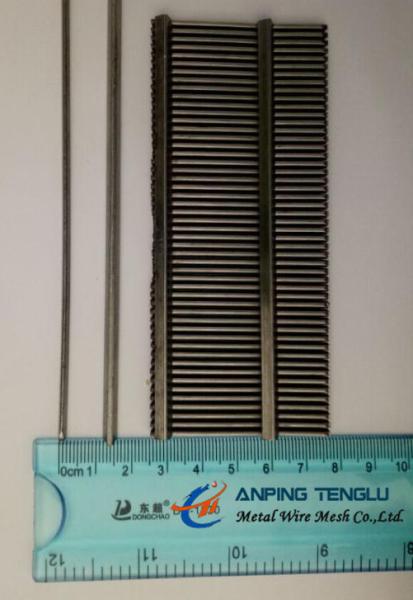

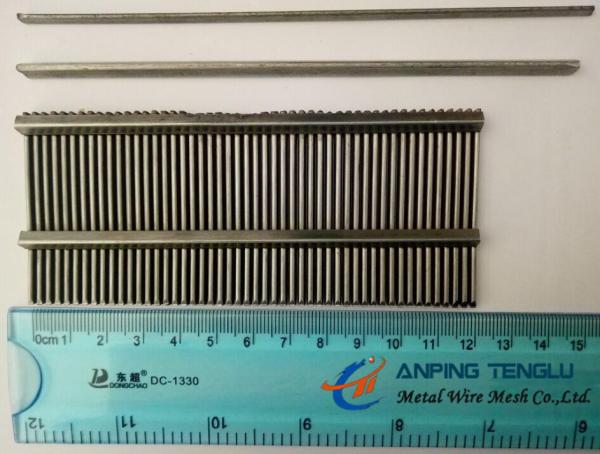

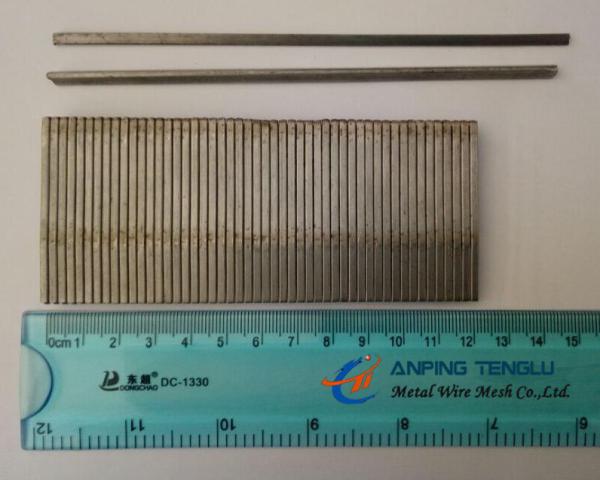

AISI304 Wedge Wire Screen Flat Panels, Used in Mining, Buinding, etc.
AISI304 Wedge Wire Screen Flat Panels, Used in Mining, Buinding, etc.
AISI304 Wedge Wire Screen Flat Panels, Used in Mining, Buinding, etc.
AISI304 Wedge Wire Screen Flat Panels, Used in Mining, Buinding, etc.
AISI304 Wedge Wire Screen Flat Panels, Used in Mining, Buinding, etc.
AISI304 Wedge Wire Screen Flat Panels, Used in Mining, Buinding, etc.
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
50pieces
Price :
usd
Payment Terms :
T/T, Western Union, L/C at Sight
Delivery Time :
Generally 30days
Packaging Details :
With a plastic film winding and then packed in wooden cases, boxes lined with waterproof material; Or as your requirement.
Material :
Stainless Steel 304, 304L, 316, 316L, etc
Slot Hole Size :
0.05mm to 10.0mm
Panel Width :
500mm to 3000mm
Panel Length :
500mm to 3000mm
Profile Wire :
Triangle Wire
Support Wire :
Triangle Wire
Features :
High Strength
Certification :
ISO
Description

AISI304 Wedge Wire Screen Flat Panels, Used in Mining, Buinding, etc.

Flat Wedge Wire Screen/Wedge Wire Screen Panels

Wedge wire screen panels, also called wedge wire flat screens, wedge wire panels. Wedge wire is a welded steel structure, where the surface profiles are welded at each intersection at 90° angles onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows. Mainly used for filtration, separation and retention media.

Materials: Stainless Steel 304, 304L, 316, 316L, etc.

Features:

Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.
High-precision slot sizes: precise slot sizes are available to meet customer´s requirements.
Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.
Low pressure-drop.
Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.

Applications:

Wedge wire screen panels have a wide range of applications, the main applications are sieving and filtration. It can also be used as decorative materials in some buildings. The detailed application fields are as vibrating screen decking, surface water intake screens, fish diversion screen panels, hatchery screens, grain drying screen, malt kin or germination floors, decorative materials, water treatment, etc.

AISI304 Wedge Wire Screen Flat Panels, Used in Mining, Buinding, etc.
Specifications:

AISI304 Wedge Wire Screen Flat Panels, Used in Mining, Buinding, etc.

Slot size: 0.05mm - 10mm.
Panel width: 500mm - 2000mm.
Panel length: 500mm - 3000mm.

Slot Size

(mm)

 Profile Wire(mm) Support Rod(mm)
Triangle Wire Triangle Wire Round Rod Flat Bar Wedge Wire
0.05 0.5×1, 1×2 - - -
0.10 - - -
0.15 - - -
0.20 2, 3 - -
0.25 2, 3 - -
0.3 1.5×4, 2.2×3.5, 2.2×4.5, 2.8×5 2, 3 - -
0.4 2.2×3.5, 2.2×4.5, 2.8×5.0, 3.1×6.0, 2.8×6.5, 3.4×7.5 3, 4, 5, 6 - -
0.5 2×25, 3×25, 4×25 3×5, 4×6, 4×7.5
0.6
0.7
0.8 1.5×4, 1.8×3, 2.2×3.5, 2.2×4.5, 2.2×5, 2.3×3.8, 2.6×4.3, 2.7×4.2, 2.8×5, 2.8×6.5, 2.8×8, 2.8×10, 2.9×4.7, 3.1×6, 3.2×5.5, 3.4×7.5, 3.5×5.7, 5×7, 5×10, 6.8×9.4, 8.5×11.5 4, 5, 6, 7, 8
0.9
1.0
1.5
2.0
2.5
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
