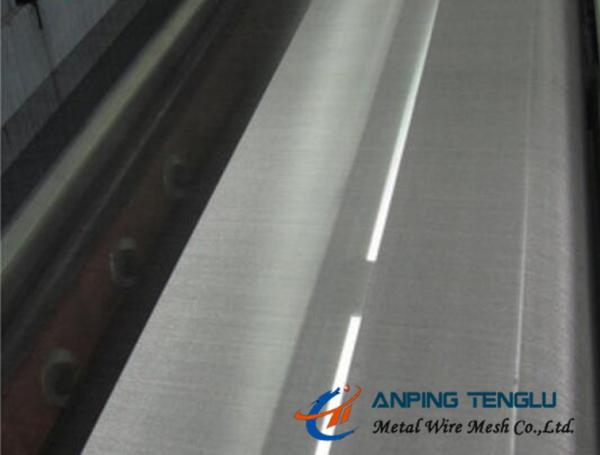

Fine Wire Cloth, Stainless Steel 450mesh Twilled Weave 0.028mm Wire Dia.
Fine Wire Cloth, Stainless Steel 450mesh Twilled Weave 0.028mm Wire Dia.
Fine Wire Cloth, Stainless Steel 450mesh Twilled Weave 0.028mm Wire Dia.
Fine Wire Cloth, Stainless Steel 450mesh Twilled Weave 0.028mm Wire Dia.
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Price :
usd
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
Generally in 25days.
Packaging Details :
Inside with a paper tube, outside with a piece of waterproof, then in wooden case or pallets.
Material :
SS304 SS316
Mesh Counts :
450mesh/Inch
Wire Dia. :
0.028mm
Opening Size :
0.028mm
Width :
40", 48"
Length :
100ft
Weave Type :
Twill Weave
Certification :
ISO9001:2015
Description

Fine Wire Cloth, Stainless Steel 450mesh Twilled Weave 0.028mm Wire Dia.

Fine Stainless Steel Woven Wire Cloth

450mesh wire cloth also called 450 thread count wire mesh, that refers to 450 threads per inch. “Twilled weave” is a weave type in which the warp wires and shute wires pass over two and under two in both directions. This is different from a plain weave, which is when the wires are woven one over and one under. As a result, “twilled weave” is often more pliable than a comparable plain weave wire mesh specification. By and large, twilled weave is often used in filtration applications.

Mesh Weave Pattern Wire Diameter Aperture Open Area Rate
mm Inch mm Inch %
450 Twilled Weave 0.028 0.001 0.028 0.001 25.4

1) Roll Size

Roll Width: 36”, 48”, 1.0m

Roll Length: 100ft, 30m

2) Cut in Pieces

Rectangle shape, square shape, round shape and other required shapes and sizes.


Materials: SS304, SS304L, SS316, SS316L. Mainly with SUS, DIN, AISI/UNS Standard.


Weaving Type: Twilled weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
Fine Wire Cloth, Stainless Steel 450mesh Twilled Weave 0.028mm Wire Dia.


Features:

Durability with good abrasion resistance.
Smooth surface.
Square mesh.
Good chemical resistance, especially against solvents.
Excellent mechanical strength.
Easy to cut to size with wire cutters, tin snips or metal shears.


Applications:
Filters and Laboratories
Electronic Ciggaretts for Wicking Material
Seiving and Straining of the Fines Powders
Injection Powders
Dusts Selection
Screening Chemical Additives
Oil Fine Filter
Gas Flow Control

Specifications:

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8
635X635 0.0008 0.0203 0.0008 0.0203 25 2.63

Other specifications according to your requirements.

Packing: Water-proof paper first then plastic film, in wooden case or pallets.

Fine Wire Cloth, Stainless Steel 450mesh Twilled Weave 0.028mm Wire Dia.
