Plain Weave Wire Cloth, With SS304L, SS316, SS316L, 280mesh 0.03-0.045mm Wire
Plain Weave Wire Cloth, With SS304L, SS316, SS316L, 280mesh 0.03-0.045mm Wire
Plain Weave Wire Cloth, With SS304L, SS316, SS316L, 280mesh 0.03-0.045mm Wire
Plain Weave Wire Cloth, With SS304L, SS316, SS316L, 280mesh 0.03-0.045mm Wire
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Price :
usd
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
Generally in 25days. Actually based on your quantity need.
Packaging Details :
Inside with a paper tube, outside with a piece of waterproof, then in wooden case or pallets.
Material :
SS304L, SS316, SS316L
Mesh Count :
280mesh
Wire Dia. :
0.030mm, 0.036mm, 0.040mm
Opening Size :
0.061mm, 0.055mm, 0.051mm
Width :
36", 48" ; 0.914m, 1.22m
Length :
100ft or 30.5m
Weave Type :
Plain Square Weave(PSW)
Certification :
ISO9001:2015
Description

Plain Weave Wire Cloth, With SS304L, SS316, SS316L, 280mesh 0.03-0.045mm Wire
SS304L, SS316, SS316L Plain Weave Pattern, 280 Mesh/Inch Square Wire Mesh
Stainless steel square aperture 280mesh wire mesh including 280 wires and openings per inch. Mesh counts, wire diameter, aperture sizes of warp wire and weft wire are the same. Plain Weave Wire Cloth Weave is the most common wire cloth used and it is one of the simplest wire cloths. The plain wire cloth are not crimped before weaving, and each warp wire passes over/under the wires running through the cloth at 90 degree angles. The plain weave wire cloth has numerous applications

Plain Weave Wire Cloth, With SS304L, SS316, SS316L, 280mesh 0.03-0.045mm Wire

Materials: SS304, SS304L, SS316, SS316L and other stainless steel alloy. Aluminum, copper, nickel metal materials available.


Weaving Type: Plain Weave: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.


Plain Weave Wire Cloth, With SS304L, SS316, SS316L, 280mesh 0.03-0.045mm Wire

Features:
With good performance of acid resistance, alkali resistance, high temperature resistance, low temperature resistance, wear resistance, etc.

Applications:
Stainless steel wire cloth are widely used in different industries, mostly used as air conditioners, automotive starter systems, fuel tanks, filter jugs, water pumps, medical supplies, vacuum cleaners, coffee makers, centrifuges, water purifiers, direct drink dispensers, filters, excavators, etc.

Specifications:

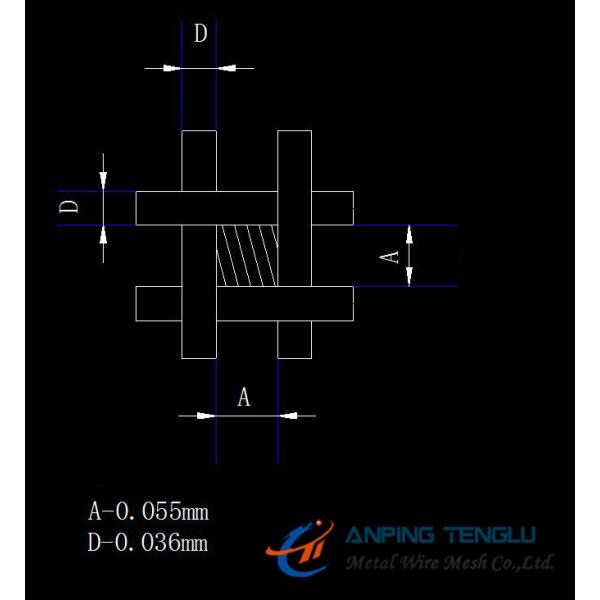

Mesh Wire Diameter Aperture
mm Inch mm Inch
280×280 0.030 0.0012 0.061 0.0024
0.036 0.0014 0.055 0.0022
0.040 0.0016 0.051 0.0020

1) Roll Size

Standard Width: 48”

Standard Length: 100ft

2) Sheet Size

Cut as your required shape and size.

Other specifications according to your requirements.


Packing: Water-proof paper first then plastic film, in wooden case or pallets.

Plain Weave Wire Cloth, With SS304L, SS316, SS316L, 280mesh 0.03-0.045mm Wire
