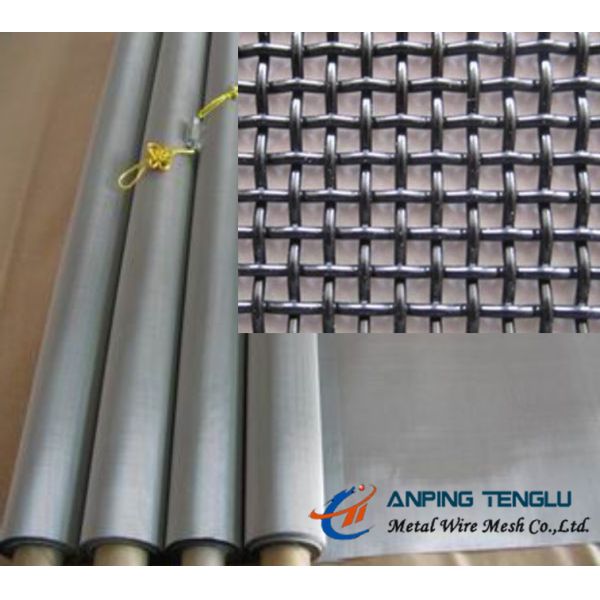

94Mesh Woven Wire Mesh- SS316 Grade, 0.0035 or 0.09mm Wire, Roll 48 × 100ft
94Mesh Woven Wire Mesh- SS316 Grade, 0.0035 or 0.09mm Wire, Roll 48 × 100ft
94Mesh Woven Wire Mesh- SS316 Grade, 0.0035 or 0.09mm Wire, Roll 48 × 100ft
94Mesh Woven Wire Mesh- SS316 Grade, 0.0035 or 0.09mm Wire, Roll 48 × 100ft
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Price :
usd
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
In 20days
Packaging Details :
Inside with a paper tube, outside with a piece of waterproof, then in wooden case or pallets.
Material :
SS304, SS316
Mesh Count :
94mesh/Inch
Wire Dia. :
0.0035", 0.0040"; 0.090mm, 0.100mm
Width :
48"; 1.22m
Length :
100ft; 30.5m
Weave Type :
Plain Weave
Certification :
ISO9001:2015
Description

94Mesh Woven Wire Mesh- SS316 Grade, 0.0035

Stainless Steel Woven Wire Cloth

94mesh plain weave wire mesh including 94 wires and openings per inch. Plain weave (also called tabby weave, linen weave or taffeta weave) is the most basic of three fundamental types of textile weaves. It is strong and hard-wearing, used for fashion and furnishing fabrics. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

Materials:

200 Series: 201 202 205
300 Series: 301 302 304 304L 309 309S 310 310S 316 316L 321
400 Series: 410 420 430


Weaving Type: Plain weave

94Mesh Woven Wire Mesh- SS316 Grade, 0.0035

Features: It has fine acid-proof, soda-resisting, heat-resisting, and high tensile strength.


Applications: Stainless steel wire mesh/cloth, mainly used in oil industry, chemical industry as filters. Widely used as followings:

Particle Filter
Shielding Mesh
Battery Mesh
Grinding Material Mesh
Quartz Sand Paper Material Selection
Sifting Powders
Laboratories and Filters
Strainers
Sifting and Mixing Chemicals
Sieves
EMI and RFI shielding

Specifications:

Mesh Wire Diameter Aperture
mm Inch mm Inch
94×94 0.090 0.0035 0.18 0.0071
0.100 0.0040 0.17 0.0066
0.112 0.0045 0.16 0.0063

1) Roll Size

Standard Width: 48”

Standard Length: 100ft

2) Sheet Size

Cut as your required shape and size.

Other specifications according to your requirements.

Packing: Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.

94Mesh Woven Wire Mesh- SS316 Grade, 0.0035
