Rectangle Openging Wire Mesh, 18×14Mesh 0.011 Wire, AISI304 & AISI316
Rectangle Openging Wire Mesh, 18×14Mesh 0.011 Wire, AISI304 & AISI316
Rectangle Openging Wire Mesh, 18×14Mesh 0.011 Wire, AISI304 & AISI316
Rectangle Openging Wire Mesh, 18×14Mesh 0.011 Wire, AISI304 & AISI316
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
10rolls
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
In 20days
Packaging Details :
Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof.
Material :
AISI304, AISI316
Mesh/Inch :
18×14Mesh
Wire Diameter :
0.011" (0.279mm)
Opening Size :
0.0445" x 0.0604" (1.13mm x 1.53mm)
Width :
1.0m, 1.2m, 1.5m; 36", 48"
Length :
30m; 100ft
Certification :
ISO9001:2015
Description

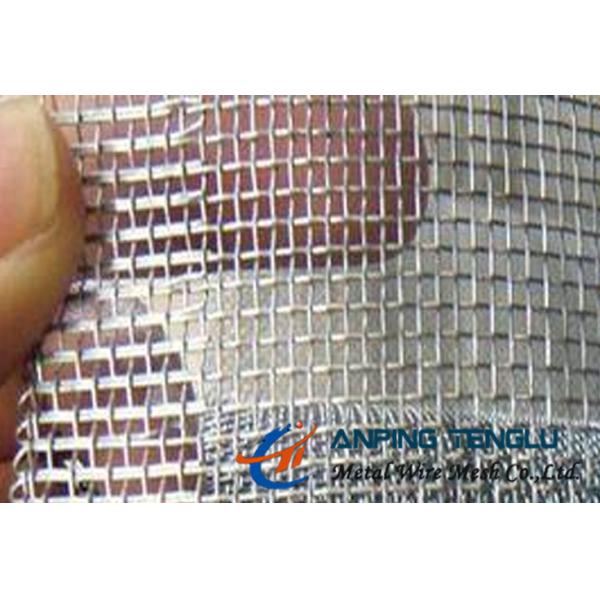

Rectangle Openging Wire Mesh, 18×14Mesh 0.011

Stainless Steel Woven Wire Mesh-Rectangular openings

A Plain Weave wire cloth, woven in an over and under pattern with a different number of wires in the warp and shute direction, which yields a rectangular opening wire cloth. Rectangular openings are often used in sifting and sizing operations to increase product “through” capacity with minor sacrifices in accuracy. To reduce material costs, off-count mesh may be substituted for square mesh in some applications that do not require a high level of accuracy.

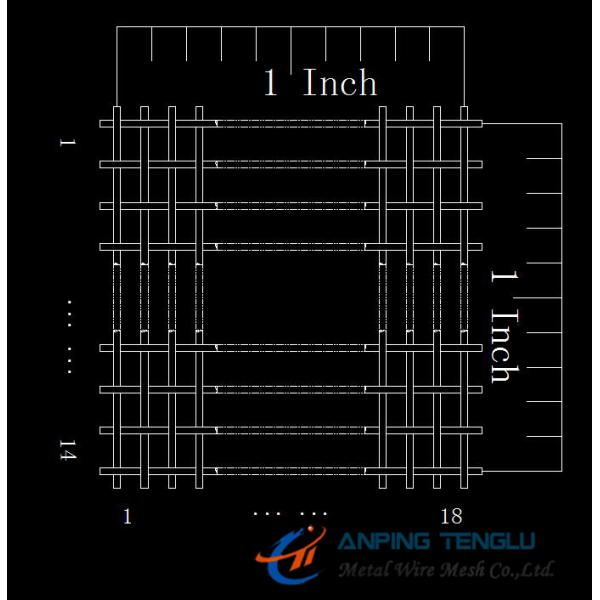

18×14mesh rectangle opening as the drawing show. 18mes/inch warp and 14neshes/inch weft. The wire diameters of both directions are the same.

Rectangle Openging Wire Mesh, 18×14Mesh 0.011


Material: AISI304 & AISI316

AISI304 CHEMICAL COMPOSITIONS (WT%)
ITEMS C Si Mn P S Ni Cr
SPEC. <0.08 <1.00 <2.00 <0.045 <0.03 8-10.5 18-20

AISI316 CHEMICAL COMPOSITIONS (WT%)
ITEMS C Si Mn P S Ni Cr Mo
SPEC. <0.08 <1.00 <2.00 <0.045 <0.03 10-14 16-18 2-3

Other stainless steel grades please keep me informed. Materials available with plain steel, aluminum, copper/brass, nickel and so on with pure metal or alloy metal.

Weaving Type: Plain Weave.
Rectangle Openging Wire Mesh, 18×14Mesh 0.011

Features:
Stainless steel square mesh also has the features of acid resistance, alkaline-resisting property, heat-resisting feature, wear-resistant, high tensile and high temperature property.

Applications:
With light weight, good flexibility and easy cleaning, window screen netting is mainly uesd in hotels, public buildings, civil residences against bugs, insects, etc.

Specifications:

Specifications US Metric
Mesh Size 18x14/Inch 18x14/2.54cm
Wire Diameter 0.011” 0.279mm
Width 36", 48” 0.914m, 1.22m
Length 100ft 30.5m
Packing: Water-proof paper first then plastic film, in wooden case or pallets.
Nearest Port: Tianjin(By Sea); Beijing(By Air).

Other specifications according to your requirements.

Packing: In rolls, wrapped with waterproof paper then covered with hessian cloth. Special packing may be arranged if necessary.

Rectangle Openging Wire Mesh, 18×14Mesh 0.011
