Stainless Steel Twill Weave Filter Cloth, 180Mesh With 0.0019 & 0.0023 Wire
Stainless Steel Twill Weave Filter Cloth, 180Mesh With 0.0019 & 0.0023 Wire
Stainless Steel Twill Weave Filter Cloth, 180Mesh With 0.0019 & 0.0023 Wire
Stainless Steel Twill Weave Filter Cloth, 180Mesh With 0.0019 & 0.0023 Wire
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Price :
usd
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
In 20days
Packaging Details :
Inside with a paper tube, outside with a piece of waterproof, then in wooden case or pallets.
Material :
SS304, SS304L, SS316, SS316L
Mesh Count :
180mesh
Wire Dia. :
0.0019"(0.05mm), 0.0023" (0.06mm)
Width :
1m to 2m
Length :
30m
Weave Type :
Twill Weave
Certification :
ISO9001:2015
Description

Stainless Steel Twill Weave Wire Cloth

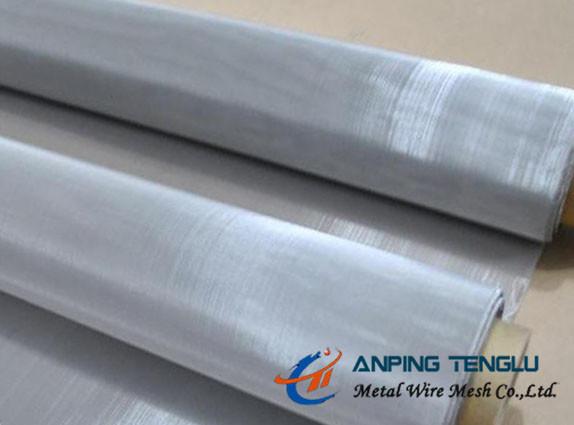

Stainless Steel Twill Weave Filter Cloth, 180Mesh With 0.0019

Twill Weave Wire Mesh:

Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.

180 wires per inch. Material can easily bend by hand and cut with scissors and laser. Commonly used for laboratories, screen printing, and filters. This market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth.

Mesh Weave Pattern Wire Diameter Aperture Open Area Rate
mm Inch mm Inch %
180 Twilled Weave 0.05 0.0019 0.091 0.0035 41.68
0.06 0.0023 0.081 0.0031 33.03

1) Roll Size

Roll Width: 36”, 48”, 1.0m

Roll Length: 100ft, 30m

2) Cut in Pieces

Rectangle shape, square shape, round shape and other required shapes and sizes.


Materials: SS304, SS304L, SS316, SS316L

AISI Chemical Composition of Several Stainless Steel Wires (%)
C Si Mn P S Ni Cr Mo
304 Max.0.08 Max.1.00 Max.2.00 Max.0.045 Max.0.030 8.00~10.50 18.00~20.00 -
304L Max.0.03 Max.1.00 Max.2.00 Max.0.045 Max.0.030 9.00~13.00 18.00~20.00 -
316 Max.0.08 Max.1.00 Max.2.00 Max.0.045 Max.0.030 10.00~14.00 16.00~18.00 2.00~3.00
316L Max.0.03 Max.1.00 Max.2.00 Max.0.045 Max.0.030 12.00~15.00 16.00~18.00 2.00~3.00

304 stainless steel: Most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.

304L stainless steel: Similar properties as 304ss but lower carbon content to permit better welding.

316 stainless steel: Similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.

316L stainless steel: Similar properties as 316ss but lower carbon content to permit better welding.


Weaving Type: Twill weave
Stainless Steel Twill Weave Filter Cloth, 180Mesh With 0.0019
Characteristics:

Superior corrosion and abrasion resistance;
Can resist to rust and bad weather;
High filter precision;
Durable and high strength;
Beautiful appearance, etc.

Applications:

Fiber Spinning Mesh;

Pharmaceutical Powder Preparation;

Flour Machine Screening;

Oil Filter;

Cement and Lime Selection;

Laboratories and Filters;

Process Screening and Sieving;

Hydraulic Filters;

Internal Combustion Engine Air Filter;

Mulled Wine Filter;

Decorative/Cosmetic Mesh, etc.

Specifications:

MESH Count Diameter of Wire Width of Opening Open Area Weight
% per Pounds
per Inch Inches mm Inches mm 100 Sq. Ft. per 100Sq.Ft
12 x 12 0.032 0.81 0.051 1.3 37.9 78.8
14 x 14 0.028 0.71 0.043 1.1 37 70.4
16 x 16 0.023 0.58 0.04 1 39.9 54.3
20 x 20 0.021 0.53 0.029 0.74 33.6 56.6
30 x 30 0.015 0.38 0.018 0.47 30.3 43.3
35 x 35 0.014 0.36 0.015 0.37 26 44
40 x 40 0.012 0.31 0.013 0.33 27 36.9
50 x 50 0.011 0.28 0.009 0.229 20.3 38.8
50 x 50 0.0055 0.14 0.015 0.37 52.6 9.7
60 x 60 0.011 0.28 0.0057 0.144 11.6 46.6
60 x 60 0.0045 0.114 0.012 0.31 53.3 7.8
80 x 80 0.007 0.178 0.0055 0.14 19.4 25.1
100 x 100 0.005 0.127 0.005 0.127 25 16
120 x 120 0.0042 0.107 0.0041 0.105 24.6 13.6
120 x 120 0.004 0.102 0.0043 0.11 27 12.3
150 x 150 0.003 0.076 0.0037 0.093 30.3 8.7
180 x 180 0.0025 0.064 0.0031 0.078 30.3 7.2
200 x 200 0.0025 0.064 0.0025 0.064 25 8
200 x 200 0.0023 0.058 0.0027 0.069 29.2 6.8
270 x 270 0.0016 0.041 0.0021 0.053 32.3 4.4
300 x 300 0.0015 0.038 0.0018 0.047 30.3 4.3
325 x 325 0.0014 0.036 0.0017 0.043 29.7 4.1
400 x 400 0.001 0.025 0.0015 0.038 36 2.6

Packing: Other specifications according to your requirements.

Stainless Steel Twill Weave Filter Cloth, 180Mesh With 0.0019
