SS304, SS304L, SS316, SS316L Grades High Transparency Wire Screen
SS304, SS304L, SS316, SS316L Grades High Transparency Wire Screen
SS304, SS304L, SS316, SS316L Grades High Transparency Wire Screen
SS304, SS304L, SS316, SS316L Grades High Transparency Wire Screen
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
10rolls
Payment Terms :
T/T, Western Union, L/C at sight
Delivery Time :
Generally in 25days.
Packaging Details :
Inside with a paper tube, outside with a piece of waterproof.
Material :
SS304, SS304L, SS316, SS316L
Weave Pattern :
Plain Weave
Mesh Counts :
30, 50, 80, 100, 120, 300, 325, etc
Wire Diameter :
0.025mm, 0.03mm, 0.04mm, 0.05mm, etc
Applications :
Uses include shielded windows and computer monitors
Certification :
ISO9001:2015
Description

SS304, SS304L, SS316, SS316L Grades High Transparency Wire Screen

Stainless Steel Woven Wire Mesh

Stainless steel: optically clear, high transparency meshes, listed in this section, are used in the manufacture of shielded windows for viewing instrumentation inside a shielded enclosure. They are also used for covering computer display screens to prevent the emanation of unwanted electrical emissions.

These meshes are produced using highly sophisticated wire drawing and weaving technologies. Stainless steel T304 rod is drawn to an extremely smooth close tolerance wire many times finer than a single strand of human hair. A computer-controlled loom weaves this into the world's most delicate metal fabric.

The result is a highly transparent, uniform mesh. It is used in shielded windows and cathode ray tubes (CRT's). Our mesh qualifies as "optical grade". It requires great care in handling. High Transparency Mesh are used for manufacturing shielded CRT screens and transparent radio frequency (RFI) shielded windows


Materials: Stainless Steel 304, 304L, 316, 316L.

AISI Chemical Composition
C Si Mn P S Ni Cr Mo
304 Max.0.08 Max.1.00 Max.2.00 Max.0.045 Max.0.030 8.00~10.50 18.00~20.00 -
304L Max.0.03 Max.1.00 Max.2.00 Max.0.045 Max.0.030 9.00~13.00 18.00~20.00 -
316 Max.0.08 Max.1.00 Max.2.00 Max.0.045 Max.0.030 10.00~14.00 16.00~18.00 2.00~3.00
316L Max.0.03 Max.1.00 Max.2.00 Max.0.045 Max.0.030 12.00~15.00 16.00~18.00 2.00~3.00


Weaving Type: Plain weave.

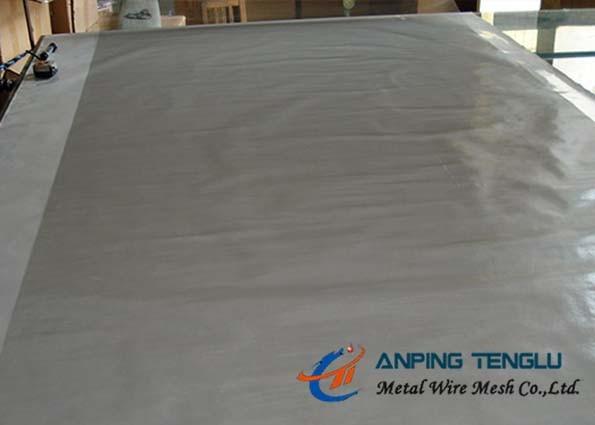

SS304, SS304L, SS316, SS316L Grades High Transparency Wire ScreenSS304, SS304L, SS316, SS316L Grades High Transparency Wire Screen

Key Features: High Light Transmission(High Transparency)


Applications: Stainless Steel High Transparency Mesh(Ultra-thin Mesh) is widely used as shielding materials. They are used for manufacturing shielded CRT screens and transparent radio frequency(RFI) shielded windows. We can supply it of different sizes according to the customer’s request.

Specifications:

Material Mesh Count Wire Dia. Weave Type Thickness Aperture Open Area
316 165 0.025mm Plain 0.0550mm 0.13mm 70.16%
316 120 0.026mm Plain 0.0572mm 0.19mm 76.94%
304/316 100 0.055mm Plain 0.1210mm 0.20mm 61.38%
304/316 100 0.050mm Plain 0.1100mm 0.20mm 64.50%
304/316 100 0.030mm Plain 0.0660mm 0.22mm 77.77%
316 100 0.025mm Plain 0.0550mm 0.23mm 81.28%
316 80 0.025mm Plain 0.0550mm 0.29mm 84.87%
304/316 60 0.040mm Plain 0.0880mm 0.38mm 82.00%
316 50 0.025mm Plain 0.0550mm 0.48mm 90.40%
304/316 30 0.050mm Plain 0.110mm 0.80mm 88.54%

Other specifications according to your requirements.

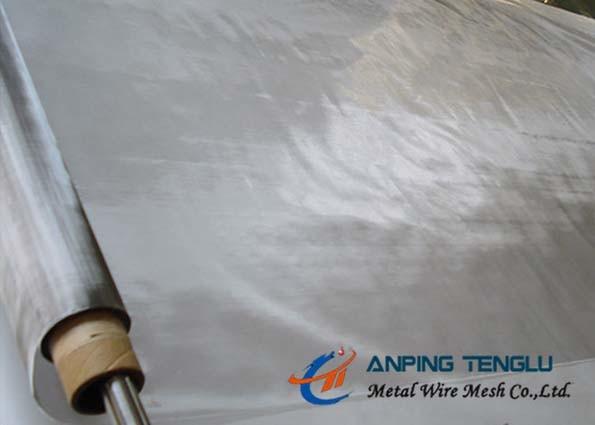

Packing: Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof.

SS304, SS304L, SS316, SS316L Grades High Transparency Wire Screen
