Stainless Steel 202 Grade Wire Mesh; 30, 40, 50, 60, 80, 100mesh/Inch
Stainless Steel 202 Grade Wire Mesh; 30, 40, 50, 60, 80, 100mesh/Inch
Stainless Steel 202 Grade Wire Mesh; 30, 40, 50, 60, 80, 100mesh/Inch
Stainless Steel 202 Grade Wire Mesh; 30, 40, 50, 60, 80, 100mesh/Inch
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
20rolls
Price :
50usd
Payment Terms :
T/T, L/C at sight
Delivery Time :
In 20days
Packaging Details :
Waterproof paper and then a plastic bag and wooden case.
Material :
Stainless Steel 202
Mesh/Inch :
30, 40, 50, 60, 80, 100
Size/Roll :
1meter*30meter
Weight :
12kgs to 18kgs/roll
Applications :
For Filters
Certification :
ISO9001:2015
Description

Stainless Steel Wire Mesh can also as stainless steel mesh screen,stainless steel filter mesh,stainless steel woven mesh,stainless steel wire cloth,steel mesh screen,steel mesh sheet.


We are instrumental in manufacturing and exporting Fine Wire Mesh,The product is regarded for being available in rolls, cut circles, and fabricated filters. It is used for wire cloth weaving and is exceptional in tensile strength. The mesh is resistant to rusting and oxidation at higher temperatures. We are specialized for handling customized orders.

Usage:Filters ,sieve,chemical industry, mine industry, paper-making , etc

Material: SS 201,202,304,304L, 316,316L, 321, 430,ect

Woven style: plain,twill,dutch

Mesh :1-635mesh

Diameter: 0.0008"-0.08"

Mesh/Inch Wire Diameter(mm) Aperture (mm) Mesh/Inch Wire Diameter(mm) Aperture
(mm)
5 1 4.08 100 0.11 0.144
6 0.9 3.33 120 0.09 0.122
8 0.7 2.47 150 0.065 0.104
10 0.5 2.04 200 0.05 0.077
12 0.5 1.62 200 0.04 0.084
14 0.5 0.5 250 0.04 0.062
16 0.35 1.24 250 0.035 0.067
18 0.28 1.13 250 0.03 0.072
20 0.35 0.92 300 0.04 0.045
24 0.35 0.71 300 0.03 0.055
28 0.35 0.56 325 0.035 0.043

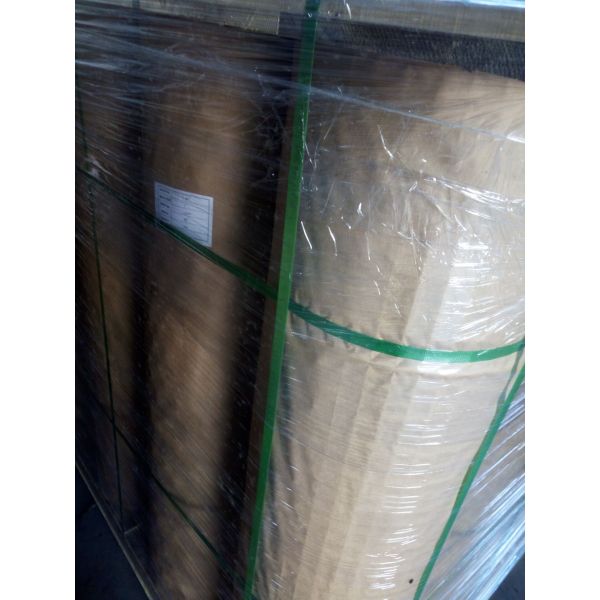

Packaging Details: inner kraft, outside plastic cloth, put into wooden pallet or case
