Stainless Steel Facade Mesh/Stainless Steel Architectural Mesh With AISI 304/316
Stainless Steel Facade Mesh/Stainless Steel Architectural Mesh With AISI 304/316
Stainless Steel Facade Mesh/Stainless Steel Architectural Mesh With AISI 304/316
Stainless Steel Facade Mesh/Stainless Steel Architectural Mesh With AISI 304/316
Stainless Steel Facade Mesh/Stainless Steel Architectural Mesh With AISI 304/316
Stainless Steel Facade Mesh/Stainless Steel Architectural Mesh With AISI 304/316
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5Rolls
Price :
usd
Payment Terms :
T/T, L/C at sight
Delivery Time :
25days
Packaging Details :
plastic cloth or waterproof paper, wooden case or based on your requirement.
Material :
AISI304, 316 Series
Weave Type :
Plain Weave
Color :
Silver, Copper, Gold
Diameter of Iron Bar :
0.5-4 mm
Diameter of Cable Wire :
0.5-4 mm
Certification :
ISO9001:2015
Description

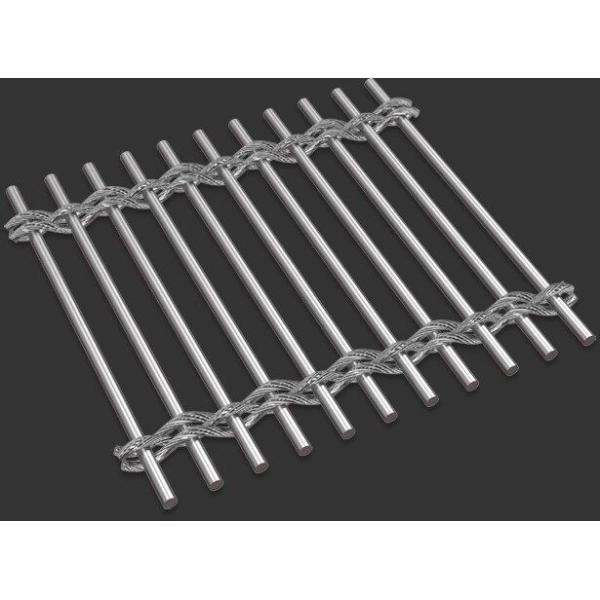

Cable metal mesh, also called architectural mesh/facades mesh, is a kind of decorative metal meshes. The cable metal mesh is combined with braided steel cables and steel rod. Commonly the warp wire is steel cables and the weft wire is steel rod. The material of steel rod can be stainless steel wire, brass wire or copper wire, and other materials can also be customized. Most commonly Grade 304 is specified, however Grade 316 is also used.

Stainless Steel Architectural Mesh applications include external mesh facades, ceilings, solar shading, mesh balustrades, decorative screens, partitions and wall cladding.

Stainless woven wire mesh is a sustainable material which offers superior economic and environmental benefits as well as high strength to weight ratio, ease of fabrication and excellent aesthetic appeal.

Stainless Steel Facade Mesh/Stainless Steel Architectural Mesh With AISI 304/316

Material: stainless steel type 304, 304L, 316, 316L

Max Width: 8m

Length: According to custom's requirment.

Material
stainless steel wire
Rod Diameter
0.5mm, 1.2mm, 1.5mm, 2.0mm, 3.0mm, 4mm, etc.
Rod Pitch
1.5mm, 1.6mm, 3.0mm, 3.5mm, 5.0mm, 6.0mm, 6.2mm, 8mm, 10mm, 14.5mm, etc.
Cable Diameter
0.45mm, 0.5mm, 0.75mm, 1.0mm, 1.7mm, 2.0mm, 2.5mm, 2.75mm, 3.0mm, etc.
Cable Pitch
3.2mm, 3.5mm, 5.0mm, 6.0mm, 17.5mm, 26.4mm, 36mm, 40mm, 50mm, 80mm, etc.
