Stainless Steel Wire Mesh,120*110mesh/inch, 4ft *30m (China Manufacturer)
Stainless Steel Wire Mesh,120*110mesh/inch, 4ft *30m (China Manufacturer)
Stainless Steel Wire Mesh,120*110mesh/inch, 4ft *30m (China Manufacturer)
Stainless Steel Wire Mesh,120*110mesh/inch, 4ft *30m (China Manufacturer)
Stainless Steel Wire Mesh,120*110mesh/inch, 4ft *30m (China Manufacturer)
Stainless Steel Wire Mesh,120*110mesh/inch, 4ft *30m (China Manufacturer)
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
20rolls
Price :
usd
Payment Terms :
T/T, L/C at sight
Delivery Time :
In 25 days
Packaging Details :
Wrapped with moister-barrier paper, then in wooden cases.
Material :
SS201
Mesh Size :
120*110/inch
Width :
4'
Length :
30m
Weight :
13.5kg
Usages :

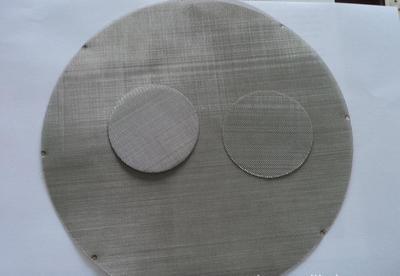

Used for making mesh disc/ filter
Certification :
ISO9001:2015
Description

1 Materials: Stainless steel wire 201

2 Weaving: Plain Weave, Twill Weave, Dutch Weave.

3 Mesh Counts: 2 mesh to 635 mesh.

4 Length: usually, manufactured in 30m ( up to 200m) long

5 Width: 36cm, 48cm, 1m, 1.2m, 1.5m, 2.0m (Or cut to length panels as requirement).

6 Use: Stainless steel wire mesh, with its excellent resistance against acid, alikal, heat and corrosion, find extensive uses processing of oils,c hemicals food, pharmaceuticals, airspace, machine making, ect.


7 Weaving Pattern:
-- Plain weave, twill weave, Dutch plain weave or Dutch twill weave
-- Plain weave can be woven from 1*1 mesh to 635*635 mesh
-- Plain Dutch weave can be woven from 10*64 mesh to 80*700 mesh
-- Twill weave can be woven from 20*250 mesh to 400*2800 mesh

8 Specifications:

Mesh Wire Dia. (MM) Opening (MM)
2x2 1.8 10.9
3x3 1.5 6.96
4x4 1 5.35
7x7 1 2.63
10x10 0.6 1.94
12x12 0.5 1.62
16x16 0.4 1.19
16x16 0.35 1.24
18x18 0.35 1.06
20x20 0.4 0.87
24x24 0.26 0.8
30x30 0.3 0.55
35x35 0.17 0.56
40x40 0.23 0.4
50x50 0.2 0.31
60x60 0.15 0.27
70x70 0.12 0.24
80x80 0.13 0.19
90x90 0.12 0.16
100x100 0.1 0.15
120x120 0.09 0.12
150x150 0.063 0.11
180x180 0.053 0.09
200x200 0.053 0.07
250x250 0.04 0.063
300x300 0.04 0.044
325x325 0.035 0.043
350x350 0.03 0.042
400x400 0.03 0.033
450x450 0.028 0.028
500x500 0.025 0.026

Stainless Steel Wire Mesh,120*110mesh/inch, 4ft *30m (China Manufacturer)

Rectangular Hole also offer, such as60*52/inch, 80*75/inch,100*92/inch, 150*140/inch, etc.

Other specifications according to your requirements.
