Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
1roll
Price :
32usd
Payment Terms :
T/T, L/C at sight, , Western Union
Delivery Time :
20days
Packaging Details :
Plastic bag inside and plywod case outside.
Material :
SS304
Wire Diameter :
2.5mm
Span :
25cm
Wire Pitch :
2.5cm
Wide :
1.0m
Length :
50m
Application :
Food Grade Conveyor Belt
Certification :
ISO9001:2015
Description

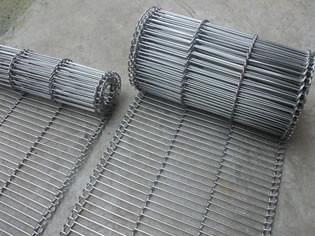

Stainless Steel Wire Mesh Ladder Conveyor Belt, are made of stainless steel wire of spring wire. Wire diameters varies from 0,9 until 3.2mm. Pitches from 4 mm until 22.23mm, and belt widths from 10 mm until 3 metre. We a big range of standard dimensions, but can make all the (non standard) dimensions too because of the multi adjustable production machinery. Belts executed with single loop (most common) or double looped edges for special occasions.


Material: stainless steel wire food grade.


Uses: it is abroad used in petroleum, metallurgy, food processing in machine, pharmacy, glass, printing the circuit board dedicated device,etc.

Characteristic of Weaving: its structure frame have common weaving, weaving of reinforcing and weaving of subsection, etc.

Advantages:
1.Because chain is driven by sprocket,meandering does not occur.
2.Various types of chain can be applied by adjusting belt pitch.
3.It is easy to attach side guard and product stopper in combination with chain and stay.

Specification:
pitch(mm):
wire(mm): above 1.2mm
min span:
overall witdh: 300-4200mm

Material Stainless steel 202/304/304L/316/316L
Rod Pitch (mm) 5, 6, 7, 10, 13, 15, 20, 19
Wire Diameter (mm) above 1.2mm
Type of loop edge 1. Single loop edges
2. Double loop edges
span(cm) 30, 30, 40, 40, 50, 50, 60
Overall Width (mm) 300-4200

All can be produced according to customers' actual requirement.
