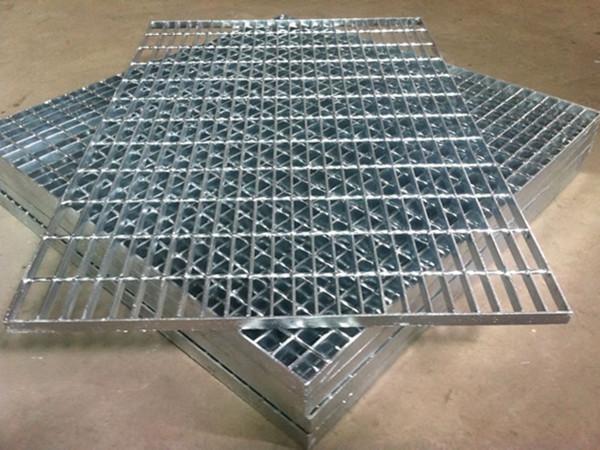

Stainless Steel Grating with SS304/316, 40mm×100mm(Center to Center)
Stainless Steel Grating with SS304/316, 40mm×100mm(Center to Center)
Stainless Steel Grating with SS304/316, 40mm×100mm(Center to Center)
Stainless Steel Grating with SS304/316, 40mm×100mm(Center to Center)
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
50Panels
Price :
usd
Payment Terms :
T/T, Western Union, L/C at sight
Delivery Time :
In 20days
Packaging Details :
Wooden pallets or iron pallets wrapped with water proof films; At your requests.
Material :
SS304
Bearing Bar Spacing :
40mm
Cross Bar Spacing :
100mm
Width :
300mm
Length :
1200
Weight :
10.5kg/Panel
Certification :
ISO
Description

Stainless Steel Bearing Bar Grating

Bar Grating is a metal product defined as an open grid of metal bars. It is comprised of bearing bars and cross rods. The bearing bars have a cross-sectional depth much greater than width and are held at equal, parallel spacing by cross rods. The manner in which the cross rods are attached determines the bar grating construction.

Stainless Steel Grating with SS304/316, 40mm×100mm(Center to Center)Stainless Steel Grating with SS304/316, 40mm×100mm(Center to Center)Stainless Steel Grating with SS304/316, 40mm×100mm(Center to Center)

1) Bearing Bar Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

2) Bearing Bar Pitch (center to center):
12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >

3) Cross Bar Pitch (center to center):
38.1, 40, 50, 60, 76, 80, 90, 100, 101.6, 102, 135mm and so on

4) Material:
Stainless Steel or Mild Steel (Low Carbon Steel)

5) Surface Treatment:
Stainless steel mainly untreated; Treated as your special requirements.

6) Part of Specifications

Bearing bar pitch Cross bar pitch Load steel size (Width×Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing bar pitch Cross bar pitch Load steel size (Width×Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

You should tell us:

Stainless Steel Grating with SS304/316, 40mm×100mm(Center to Center)
