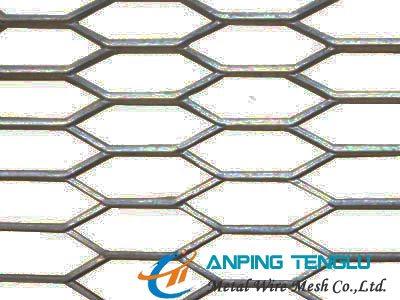

Hexagonal Hole Expanded Metal With Stainless Steel, Aluminum Plates
Hexagonal Hole Expanded Metal With Stainless Steel, Aluminum Plates
Hexagonal Hole Expanded Metal With Stainless Steel, Aluminum Plates
Hexagonal Hole Expanded Metal With Stainless Steel, Aluminum Plates
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
50Rolls Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C at sight
Delivery Time :
According to required quantity.
Packaging Details :
In Roll or Pallet
Mesh Type :
Expanded Metal Sheet
Hole Shape :
Hexagonal Hole
Material :
Stainless Steel, Aluminum
Width :
1.0m, 1.2m, 1.5m, 2.0m, 2.5m to 4.0m
Length :
5.0m, 10m, 15m, 20m, 30m, 50m, 100m, 150m
Certification :
ISO9001:2015
Description

Hexagonal Hole Expanded Metal With Stainless Steel, Aluminum Plates

Hexagonal Hole Expanded Metal is made from more toughness materials of metal plates, hexagonal hole expanded metal is slit and stretched by punching machines, forming into a kind of metal plate with hexagonal hole. During production, the angle between bevel edge and straight edge is a little larger. So compared with diamond hole expanded metal, hexagonal hole can provide larger open area.

The common type of hexagonal hole expanded metal mesh is raised type. The expanded metal is directly slit and stretched by punching machines without any other processing. The strand width and bond come into an angle with the plate surface. This kind of structure increase the strength and hardness of expanded metal, it also brings better anti-slipping and reinforcing performance.

Materials: stainless steel plate, carbon steel plate, aluminum plate, etc.

Stainless Steel 201, 202, 304, 316, 321, 410, 430
Copper brass, pure copper, phosphor bronze
Aluminum 1050, 1060, 1100, 5052, 5056
Carbon Steel High Carbon Steel, Mild Carbon Steel, Low Carbon Steel

Finish/Surface Treatment: PVC dipping (powder coating, PVC coated), hot-dip galvanized, sub-electro-galvanized, anodic oxidation (aluminum plate), antirust paint, etc.

Features: Expanded metal sheets has the features of high toughness, impact resistance, beautiful appearance, sturdy construction and other characteristics. According to different hole sizes and surface treatments, nowadays hexagonal hole expanded metal are more and more widely used in various of fields with its long service life.

Application:

Civil engineering, building walls;
Cooling hood and mechanical transmission shield mesh of all kinds of vehicles, air compressors;
Sports venues fence, road green belt protection mesh, municipal engineering protection mesh;
Heavy steel mesh is for the tanker car pedal mesh.

Specifications:

Hexagonal Hole Expanded Metal With Stainless Steel, Aluminum Plates

Thickness: 0.4 to 6.0mm

Roll Width 1m, 1.22m, 1.5m to 4m

Roll Length 15m, 30m to 60m

Panel Width: 1m, 1.22m to 2m

Panel Length: 1m, 1.5m, 2m to 10m

Other size as customed.

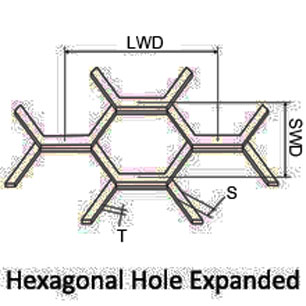

LWD

(mm)

SWD

(mm)

Strand(W)

(mm)
3.0 3.0 0.5
3.2 3.2 0.5
3.8 2.5 0.6
5.0 3.0 0.7
5.1 3.2 0.8
6.4 3.8 0.8
10.0 5.0 1.0
10.2 5.1 1.0
15.0 6.0 1.2
15.2 6.4 1.3
25.0 13.0 1.5
25.0 13.0 2.0
25.4 13.3 2.0
31.0 16.0 1.5
31.0 16.0 2.0
31.8 16.5 1.5
35.0 12.0 2.0
45.0 18.0 4.0
100.0 36.0 7.0
100.0 36.0 9.0
100.0 38.0 4.0
100.0 38.0 5.0
100.0 38.0 6.0
