Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5 rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight
Delivery Time :
According to required quantity.
Packaging Details :
Each roll with polyfilm with water proof paper outside/wooden pallets.
Material :
Stainless Steel Wire, Carbon Steel Wire
Type :
Rectangle/Slot Hole Crimped Mesh
Application :
Screen
Weave Style :
Plain Weave
Technique :
Pre-Crimped Then Woven
Certification :
ISO9001:2015
Description

Rectangle/Slot Hole Crimped Wire Mesh/Screen for Facade, Vibering Screen

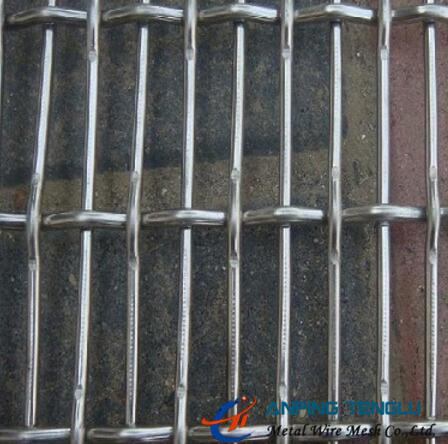

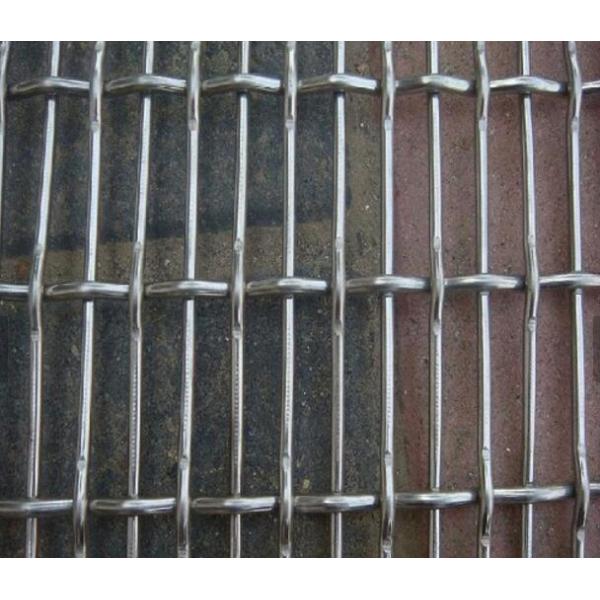

Slot Hole Crimped Wire Mesh

Slot hole crimped wire mesh/screen is produced on looms as screen panels, it is a special style hat the warp wire and weft wire are pre crimped by different weaving process before weaving, that create a rectangular hole and ensure maximum open areas. Crimped wire mesh are most widely used in the agricultural and construction industries.

Material:

Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel

Features:

Openings is rectangular hole;
Economical manufacturing, accurate opening size;
Large opening area, avoid binding or clogging;
Strong wear resistance and firm structure.

Usage:

Architectural & decorative industries, for the screen of facade and fence.
Agricultural & food industries, for pig raising screens.
Mining & aggregate industries, for the screens of vibrating machine.

Poultry breeding.

Specifications:
Opening Sizes: from 1.0×4.0mm to 10.0×50.0mm.

Wire Diameters: from 0.8mm to 5.0mm.

Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m to 60m.

Panel Width: 0.5m, 0.914m, 1m, 1.22m to 2m.
Panel Length: 1m, 1.22m, 1.5m to 6m.

Other Specifications according to your requirements.

Rectangle/Slot Hole Crimped Wire Mesh/Screen for Facade, Vibering Screen

Opening(L1×L2) Wire Diameter Open Area
mm Inch mm Inch %
1.0×4.0 0.039×0.157 0.8 0.031 46.30
1.0×5.0 0.039×0.197 1.0 0.039 41.67
1.2×7.0 0.047×0.276 1.0 0.039 47.73
1.5×4.5 0.059×0.177 1.0 0.039 49.09
2.0×6.0 0.079×0.236 1.2 0.047 52.08
2.0×14.0 0.079×0.551 2.0 0.079 43.75
2.0×20.0 0.079×0.787 1.5 0.059 53.16
2.5×7.5 0.098×0.295 1.2 0.047 58.25
3.0×12.0 0.118×0.472 2.0 0.079 51.43
4.0×10.0 0.157×0.394 2.0 0.079 55.56
4.0×16.0 0.157×0.630 2.5 0.098 53.22
5.0×15.0 0.197×0.591 2.5 0.098 57.14
8.0×18.0 0.315×0.709 3.0 0.118 62.34
8.0×18.0 0.315×0.709 3.5 0.138 58.24
10.0×20.0 0.394×0.787 4.0 0.157 59.52
10.0×50.0 0.394×1.969 4.0 0.157 66.14
10.0×50.0 0.394×1.969 5.0 0.197 60.61

Packing

Rectangle/Slot Hole Crimped Wire Mesh/Screen for Facade, Vibering Screen

Rectangle/Slot Hole Crimped Wire Mesh/Screen for Facade, Vibering Screen
