Stainless Steel 304 316 Wire Cloth, 400Mesh Twill Weave 0.001 Wire 48 Wide
Stainless Steel 304 316 Wire Cloth, 400Mesh Twill Weave 0.001 Wire 48 Wide
Stainless Steel 304 316 Wire Cloth, 400Mesh Twill Weave 0.001 Wire 48 Wide
Stainless Steel 304 316 Wire Cloth, 400Mesh Twill Weave 0.001 Wire 48 Wide
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Price :
usd
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
In 20days
Packaging Details :
Inside with a paper tube, outside with a piece of waterproof, then in wooden case or pallets.
Material :
SS316 SS316L
Mesh Count :
400mesh
Wire Dia. :
0.001" (0.025mm)
Width :
48" (1.22m)
Length :
100ft (30.5m)
Weave Type :
Twill Weave
Certification :
ISO9001:2015
Description

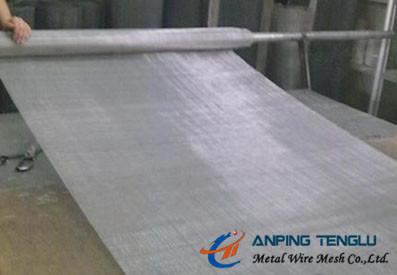

Stainless Steel 304 316 Wire Cloth, 400Mesh Twill Weave 0.001

Stainless Steel Twill Weave Wire Cloth

Twill Weave Wire Mesh: Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.

400 mesh twill weave stainless steel wire mesh including 400 wires and openings per inch. Using 0.001" diameter wire, by twill weaving, woven 400 mesh opening for 0.038mm liquid or gas filter. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Mesh Weave Pattern Wire Diameter Aperture Open Area Rate
mm Inch mm Inch %
400 Twilled Weave 0.025 0.001 0.038 0.0015 36

1) Roll Size

Roll Width: 36”, 48”, 1.0m

Roll Length: 100ft, 30m

2) Cut in Pieces

Rectangle shape, square shape, round shape and other required shapes and sizes.

Materials: SS316, SS316L

316 stainless steel: Similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.

316L stainless steel: Similar properties as 316ss but lower carbon content to permit better welding.


Weaving Type: Twill weave
Stainless Steel 304 316 Wire Cloth, 400Mesh Twill Weave 0.001
Characteristics: Flat surface, no fault .The performances of acid resisting. Alkali-resisting.heat-resisting and wear-resisting, etc.

Applications: Are widely used in environmental protection, pharmaceutical industry, chemical industry, food industry, mechanical industry, smelting industry, coal mining, paper making, cement, construction industry, aeronautics and astronautics and so on.

Specifications:

MESH Count Diameter of Wire Width of Opening Open Area Weight
% per Pounds
per Inch Inches mm Inches mm 100 Sq. Ft. per 100Sq.Ft
12 x 12 0.032 0.81 0.051 1.3 37.9 78.8
14 x 14 0.028 0.71 0.043 1.1 37 70.4
16 x 16 0.023 0.58 0.04 1 39.9 54.3
20 x 20 0.021 0.53 0.029 0.74 33.6 56.6
30 x 30 0.015 0.38 0.018 0.47 30.3 43.3
35 x 35 0.014 0.36 0.015 0.37 26 44
40 x 40 0.012 0.31 0.013 0.33 27 36.9
50 x 50 0.011 0.28 0.009 0.229 20.3 38.8
50 x 50 0.0055 0.14 0.015 0.37 52.6 9.7
60 x 60 0.011 0.28 0.0057 0.144 11.6 46.6
60 x 60 0.0045 0.114 0.012 0.31 53.3 7.8
80 x 80 0.007 0.178 0.0055 0.14 19.4 25.1
100 x 100 0.005 0.127 0.005 0.127 25 16
120 x 120 0.0042 0.107 0.0041 0.105 24.6 13.6
120 x 120 0.004 0.102 0.0043 0.11 27 12.3
150 x 150 0.003 0.076 0.0037 0.093 30.3 8.7
180 x 180 0.0025 0.064 0.0031 0.078 30.3 7.2
200 x 200 0.0025 0.064 0.0025 0.064 25 8
200 x 200 0.0023 0.058 0.0027 0.069 29.2 6.8
270 x 270 0.0016 0.041 0.0021 0.053 32.3 4.4
300 x 300 0.0015 0.038 0.0018 0.047 30.3 4.3
325 x 325 0.0014 0.036 0.0017 0.043 29.7 4.1
400 x 400 0.001 0.025 0.0015 0.038 36 2.6

Packing:
Other specifications according to your requirements.

Stainless Steel 304 316 Wire Cloth, 400Mesh Twill Weave 0.001
