10mesh to 200mesh Tungsten Wire Mesh/Cloth, Highest Melting Point
10mesh to 200mesh Tungsten Wire Mesh/Cloth, Highest Melting Point
10mesh to 200mesh Tungsten Wire Mesh/Cloth, Highest Melting Point
10mesh to 200mesh Tungsten Wire Mesh/Cloth, Highest Melting Point
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
1roll
Price :
usd
Payment Terms :
T/T, Western Union, L/C at sight
Delivery Time :
Generally 20days(according to your quantity need)
Packaging Details :
Waterproof paper with plastic cloth, then put into wooden case.
Material :
Tungsten Wire
Woven style :
Plain and Twill Weave
Mesh Counts :
Max 200mesh/Inch
Wire Diameter :
0.02mm-0.25mm
Width :
Max 1.5m
Length :
10-100m
Certification :
ISO9001:2015
Description

Tungsten Wire Mesh

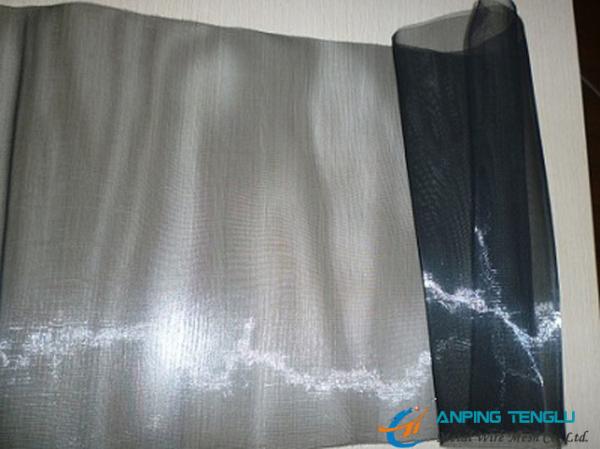

10mesh to 200mesh Tungsten Wire Mesh/Cloth, Highest Melting Point

Tungsten woven mesh is made of tungsten wire, the purity can be over 99.9%. Tungsten wire mesh has very high tensile strength. It has the highest melting point of all metals even at high temperature over 1650ºC. Among its properties are a melting point of 3410ºC, a low coefficient of thermal expansion and low vapor pressure at elevated temperatures, along with good electrical and thermal conductivity.

Meanwhile, tungsten wire mesh is highly resistant to corrosion, it has high density, sufficient electrical resistance, high modulus of elasticity low vapor pressure and low thermal expansion combined with good thermal conductivity.

Material: W1, W2, WAL1, WAL2.

10mesh to 200mesh Tungsten Wire Mesh/Cloth, Highest Melting Point

Characteristics:

Highest melting point – over 1650C at high temperature
Melting point of 3410C
Low vapor pressures at high temperature
Electrical and thermal conductivity
Low coefficient thermal expansion
High density
High tensile strength at extreme temperature

Applications:
Tungsten Wire Meshes are widely used for its good conductivity for heat and electricity as well as for its high absorption capacity for radioactive radiation and X-rays. Tungsten wire cloth is used for battery, chemical, mine, hydrogen making, acid making, basic industry.

Most Popular Specification:
Mesh Counts: 10-200
Hole Shape: square
Width: 5mm-1500mm
Weave Pattern: Plain weave, twill weave.
10mesh to 200mesh Tungsten Wire Mesh/Cloth, Highest Melting Point

Tungsten Wire Mesh
Mesh

Wire

diameter

 Aperture Opening Area Weight
mm mm % (kg/m2)
10 0.13 2.41 90% 0.2
10 0.25 2.25 81% 0.76
18 0.13 1.28 82% 0.37
20 0.13 1.14 80% 0.41
20 0.18 1.09 74% 0.79
30 0.05 0.797 88% 0.09
30 0.1 0.747 78% 0.36
40 0.025 0.61 92% 0.03
50 0.02 0.488 92% 0.02
50 0.025 0.483 90% 0.03
50 0.05 0.458 81% 0.15
60 0.1 0.323 58% 0.73
80 0.1 0.217 47% 0.98
100 0.02 0.234 85% 0.04
100 0.025 0.229 81% 0.07
100 0.05 0.204 65% 0.3
120 0.05 0.161 58% 0.36
140 0.03 0.151 69% 0.15
150 0.02 0.149 78% 0.07
150 0.025 0.144 73% 0.11
160 0.02 0.138 76% 0.07
180 0.02 0.121 74% 0.08


Our tungsten wire mesh weaving from 10mesh to 200mesh. Other specifications please inform us.
