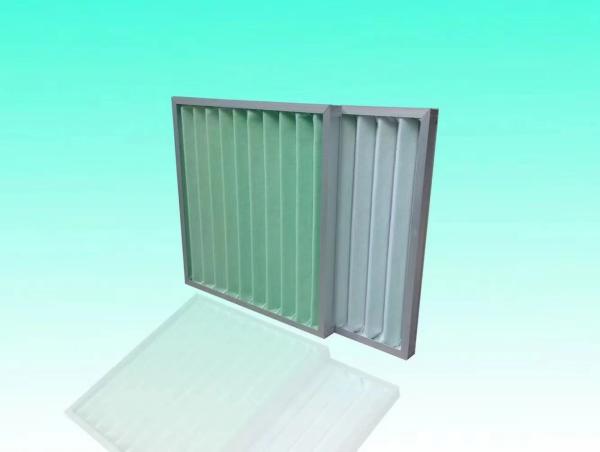

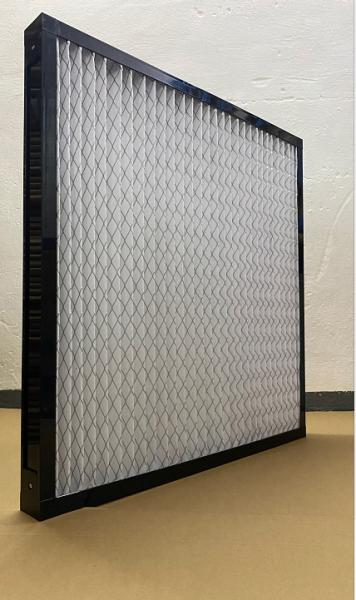

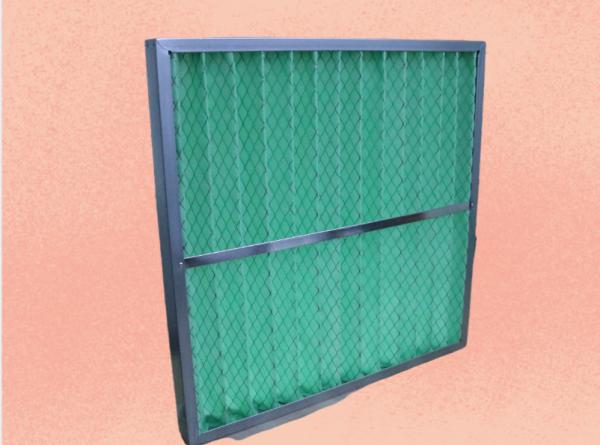

Aluminum Frame 200pa G4 Standaed Hepa Filter For AC System
Aluminum Frame 200pa G4 Standaed Hepa Filter For AC System
Aluminum Frame 200pa G4 Standaed Hepa Filter For AC System
Aluminum Frame 200pa G4 Standaed Hepa Filter For AC System
Aluminum Frame 200pa G4 Standaed Hepa Filter For AC System
Aluminum Frame 200pa G4 Standaed Hepa Filter For AC System
Aluminum Frame 200pa G4 Standaed Hepa Filter For AC System
Aluminum Frame 200pa G4 Standaed Hepa Filter For AC System
Specifications
Brand Name :
LESITE
Model Number :
Net attached type and bracket type
Certification :
CE
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Consulting customer service
Payment Terms :
T/T
Supply Ability :
Consulting customer service
Delivery Time :
Consulting customer service
Packaging Details :
Consulting customer service
Name :
Air Conditioning Hepa Filters
Brand :
LESITE
Construction :
Panel Filter
Weight :
Light Weight
Size :
Customized Made
Condition :
New
Description

Air Conditioning Hepa Filters With High Quality Aluminum Frame

Efficiency: 99.99%, 99.995%@0.3μm
Standard: EN1822, ClassH13 / H14
Durable temperature: 80 ℃
Durable humidity: 100% RH (NO Dew)
Features: The partition-type filter is separated by a corrugated aluminum partition with a thickness of at least 0.0038mm. The corrugated aluminum partition maintains the space between each pleated filter paper, and the airflow is easy to pass through, ensuring limited use of the filter material and increasing strength. . The aluminum divider double frills prevent the filter paper from being inserted, providing maximum security.
Filter material: The filter material is made of ultra-fine and high-density glass fiber. The filter material is sealed with a polyurethane sealant to ensure airtightness around the filter material.

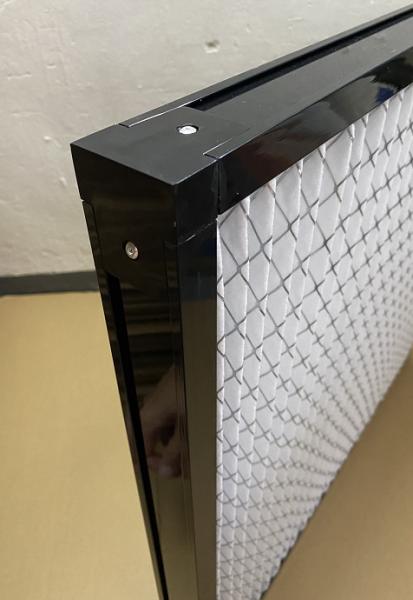

Outer frame: The frame material can be galvanized iron frame, aluminum frame or stainless steel frame. Choice of box type, single flange and double flange. Metal screens can be provided on both sides of the filter.

Dimension and parameter:

Dimension

(W*H*D)

(mm)

Rate air flow

(m3/h)

 Media area (m2) dust containing capacity

Initial Resistance

(pa)

Finally resistance

(pa)

 Efficiency
592x592x46 2600 0.97 ≈110

<25-45pa

100-200pa

G4
≈130
≈160
≈200
592x490x46 2200 0.81 ≈98
≈110
≈130
≈160
5925x287x46 1300 0.48 ≈50
≈60
≈80
≈100
490x592x46 2300 0.86 ≈100
≈110
≈140
≈170
490x490x46 1900 0.71 ≈80
≈95
≈115
≈145
287x592x46 1400 0.52 ≈60
≈70
≈80
≈100

Customer size is available.


Material and operation conditions:

Media Synthetic fiber Media
Plastic frame 21mm
Aluminum Frame 17-50mm
Frame Plastic /Galvanized/Aluminum/SUS frame
Pocket Ultrasonic wave bag
Efficiency 45-95% F5-F8
Max temperature 120°c
Max humidity 100%


Our service

  1. Provide free samples.
  2. 100% product quality protection.
  3. 100% on-time shipment protection.
  4. 100% payment protection.
  5. Welcome factory visit
  6. Skilled workers and strict quality inspection(QA Report).
  7. 16 years factory & focus on high end air filter.
  8. Small Order welcomed.
