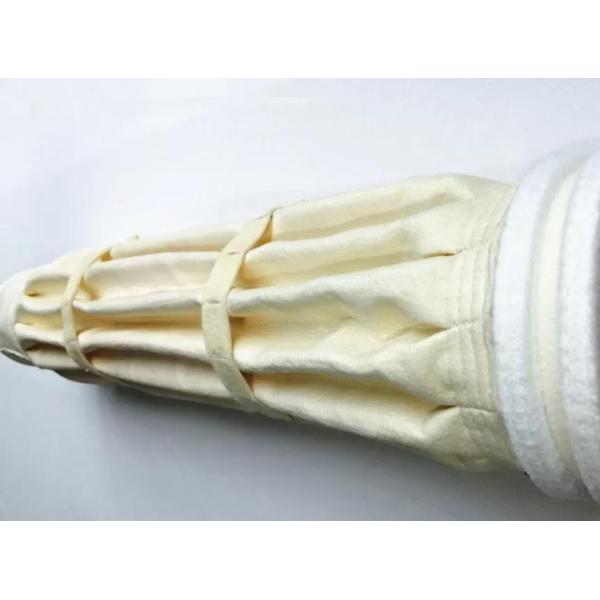

150mm Dia Felt Pleated Filter Bags Seal Cuff Homopolymer Acrylic
150mm Dia Felt Pleated Filter Bags Seal Cuff Homopolymer Acrylic
150mm Dia Felt Pleated Filter Bags Seal Cuff Homopolymer Acrylic
150mm Dia Felt Pleated Filter Bags Seal Cuff Homopolymer Acrylic
Specifications
Brand Name :
HUADING
Model Number :
HD-PLTFB
Certification :
ISO9001:2015
Place of Origin :
CN
MOQ :
50 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 Pieces per Month
Delivery Time :
10-15 Work Days
Packaging Details :
Polybag & Paper box
Material :
Acrylic
Diameter :
150mm
Number of pleats :
8 & 12
Head :
Seal cuff & Bead cuff
Metal hoop :
SUS 304
Bottom :
Double layer
Length :
Customized
Application industry :
Steel, Power, Waste incineration flue gas filtration
Description

Extend Filter Surface Area Pleated Filter Bags 150mm Homo Polymer Acrylic Filter Bag

Extend Filter Surface Star Bag 150mm Diameter Acrylic Dust Collect Pleat Bag Acrylic Star Bag

150mm Dia Felt Pleated Filter Bags Seal Cuff Homopolymer Acrylic

Specification

Style star bag, pleat bag, extend surface/area bag
Pleats No. 12 pleats
Material Arcylic
Diameter 150 mm
Length TBD mm
Strap / band Type cut felt strap
afixing thread sewing to bag
Width 25 mm
Distance 250 mm
Top Opening 150 mm
Cuff Type seal cuff
Width 10-12mm
Thickness 8-10mm
Distance 4-8mm
Metal hoop inside of top yes
material 304 stainless steel
width 25-30mm
Fix sew to bag body
Boot / Bottom Diameter 150 mm
Height 100-120 mm
Reinforcement two layers
Bottom disc two layers
Metal hoop no, 20-25mm 304 stainless steel if yes
Fix sew to bag body
Seam Type thread sewing
Bag panel/body triple rows sewing
Cuff panel 2 double rows sewing
boot upper 2 double rows sewing
boot bottom double rows sewing
Pack Poly bag and pallet, or carton and pallet

Advantage

The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,

Filter area increasing (%)

filter surface Dianmter mm Bag Length
1m 2m 3m 4m 5m 6m
8 pleats 150 54.06 73.31 79.73 82.94 84.87 86.15
12 pleats 150 72.23 93.76 100.93 104.52 106.68 108.11
  1. Increased 50% to 150% filtration area, fit to be manufactured with different materials such as polyester pleated bags, nomex pleated filter bags…ect.
  2. Reduced the running resistance of equipment to 600 to 800pa.
  3. Solved the problem of dust emission standard, dust discharge concentration below 5mg/m3 for pleated filter bag dust collecting system.
  4. Life time of dust collecting pleated filter bags is longer than normal round filter bags, saved frequency changing bags.

Application industry

150mm Dia Felt Pleated Filter Bags Seal Cuff Homopolymer Acrylic

150mm Dia Felt Pleated Filter Bags Seal Cuff Homopolymer Acrylic
