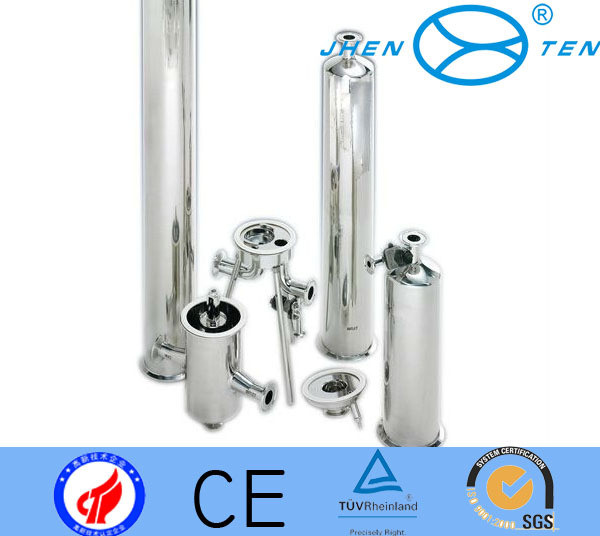

stainless steel inline filter inline water filter housing SS316L
stainless steel inline filter inline water filter housing SS316L
Specifications
Brand Name :
Jhenten
Model Number :
ZTDX-1R10
Certification :
CE,ISO9001,TUV,GMP,ASME
Place of Origin :
China
MOQ :
1 PC
Price :
USD111piece
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
30pcs per month
Delivery Time :
30days
Packaging Details :
wooden box or as customer's requirement
Material :
SS316L
Max pressure :
1.0
Max tempereture :
110
Pressure tolerance on weld :
0.85
Cartridge No: :
20" 30" 40"
Description

ss316L polished surface single sanitary filter housing for beverage

Main Parameters

Product Name: Sanitary Single Cartridge Filter Housing
Body Material: SS304/SS316L
Seal Material: EPDM , VITON, PTFE, Sililone
Cartridge adaptor: 222 / 226 /DOE
Inner polish: Ra<0.3μm
External polish: Mirror polish
Qty of Cartridge: 3-40R
Max working pressure: 1.0Mpa / 150PSI
Max Working Temperature: 130℃
Availably size: 20''-40''
Availably connection: Clamp / weld / thread
Availably standard: DIN/ ANSI/ ASME/ JIS /TS
Type option: Bottom-entry/outlet
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Advantages: Inner/outside mirror polished, Fit for sanitary requirement and Food-grade requirement
Packaging Details: Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details: Usually within 20 days after receiving T/T down payment.

Description

SS Filter Housing consists of SUS316L or SUS304, and take filter cartridge as its element. The SS filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology & pharmacy, beer & beverage, chemical, and water treatment etc.

Techinal Drawing:

stainless steel inline filter inline water filter housing SS316L

stainless steel inline filter inline water filter housing SS316L
