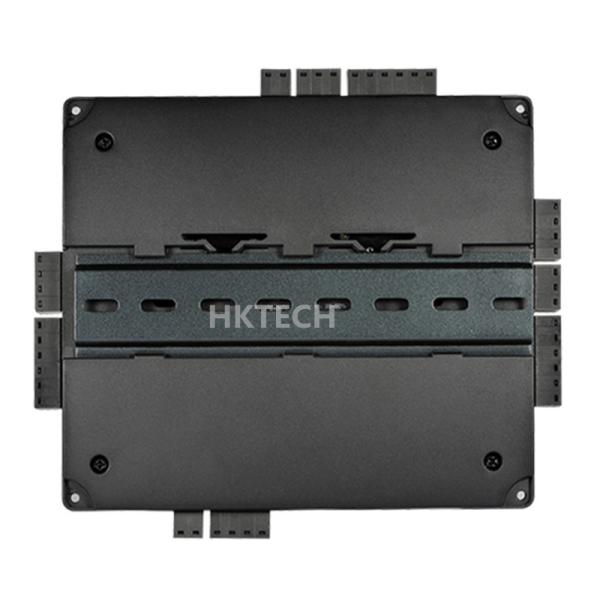

C5 access control board TCP/IP DOOR ACCESS CONTROL zkteco
C5 access control board TCP/IP DOOR ACCESS CONTROL zkteco
C5 access control board TCP/IP DOOR ACCESS CONTROL zkteco
C5 access control board TCP/IP DOOR ACCESS CONTROL zkteco
C5 access control board TCP/IP DOOR ACCESS CONTROL zkteco
C5 access control board TCP/IP DOOR ACCESS CONTROL zkteco
C5 access control board TCP/IP DOOR ACCESS CONTROL zkteco
C5 access control board TCP/IP DOOR ACCESS CONTROL zkteco
C5 access control board TCP/IP DOOR ACCESS CONTROL zkteco
C5 access control board TCP/IP DOOR ACCESS CONTROL zkteco
C5 access control board TCP/IP DOOR ACCESS CONTROL zkteco
C5 access control board TCP/IP DOOR ACCESS CONTROL zkteco
Specifications
Brand Name :
zkteco
Model Number :
c5
Certification :
ce
Place of Origin :
China
MOQ :
1
Price :
1
Payment Terms :
T/T, Western Union
Supply Ability :
111
Delivery Time :
5
Packaging Details :
carton
Description
C5S110 C5S120 C5S140
Number of Doors Controlled 1 2 4
Number of Readers Supported Wiegand reader: 2
RS485 reader: 2		 Wiegand reader: 4
RS485 reader: 4		 Wiegand reader: 4
RS485 reader: 8
Types of Readers Supported 26-bit Wiegand, others upon request 26-bit Wiegand, others upon request 26-bit Wiegand, others upon request
Number of Inputs 3
Exit Button: 1
Aux IN: 1
Door Status: 1		 5
Exit Button: 2
Aux IN: 1
Door Status: 2		 9
Exit Button: 4
Aux IN: 1
Door Status: 4
Number of Outputs 2
Lock: 1
Aux Output: 1		 3
Lock: 2
Aux Output: 1		 5
Lock: 4
Aux Output: 1
Hardware CPU: 1.2GHz
Flash: 256Mb
RAM: 128Mb		 CPU: 1.2GHz
Flash: 256Mb
RAM: 128Mb		 CPU: 1.2GHz
Flash: 256Mb
RAM: 128Mb
Card Holders Capacity 100,000 100,000 100,000
Log Events Capacity 200,000 200,000 200,000
Communication TCP/IP and RS-485, WI-FI TCP/IP and RS-485, WI-FI TCP/IP and RS-485, WI-FI
Mounting Wall Mount Wall Mount Wall Mount
Recommended Power Supply 12V DC, 1.5A 12V DC, 1.5A 12V DC, 1.5A
Dimensions (L*W*H) 160 x 140 x 31.6mm 197 x 171 x 31.6mm 197 x 171 x 31.6mm
Operating Temp -10 ~ 50°C -10 ~ 50°C -10 ~ 50°C
Operating Humidity 20% ~ 80% 20% ~ 80% 20% ~ 80%
