^{Heat exchangers are mainly innovative applications in the fields of heat transfer and water treatment. Plate heat exchangers are divided into detachable plate heat exchangers, semi welded plate heat exchangers, fully welded plate heat exchangers, plate shell heat exchangers, and tube shell heat exchangers. The company has a large-scale modern production base and has obtained ASME, ISO9001, and CE certifications. It has the qualification for environmental protection professional general contracting and the qualification for manufacturing Class I and Class II pressure vessels.}

TECHNICAL PRINCIPLE

^{The crisscross of two plates is 180°. All plates are welded together. and exchange heat through two short sides of each plate. As its gasket material utilizes the nonmetal materials which don't strech. so the medium temperature W400 P, pressurew 3.0 Mpa. It expands the range of work, and also prolong the usage of cycle. What' s more, reduce the expense of maintenance.}

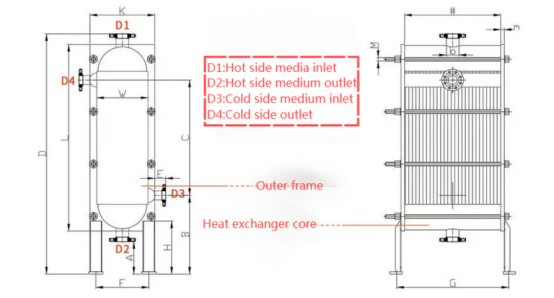

STRUCTURAL COMPOSITION

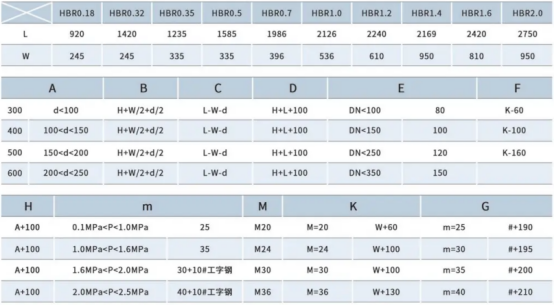

^{1. When the flange of the small window is less than or equal to DN65, the small semicircle will be φ=120mm.}

^{2. When the small window flange is DN80-DN100, the small semicircle is φ=160mm.}

^{3. When the small window flange is DN150, the small semicircle is φ=220mm.}

^{4. When the small window flange is DN200, the small semicircle is φ=280mm.}

^{5. Small window opening cross-section to take over the cross-sectional area of 2 times as appropriate.}

^{6. Special circumstances, if the opening is greater than less than half-circle, the small half-circle can be larger than a file.}

^{7. The size of the band # is determined by the heat transfer area.}

^{*Note: The parameters of this table are only for selection reference, the actual data according to the product completion chart data shall prevail.}

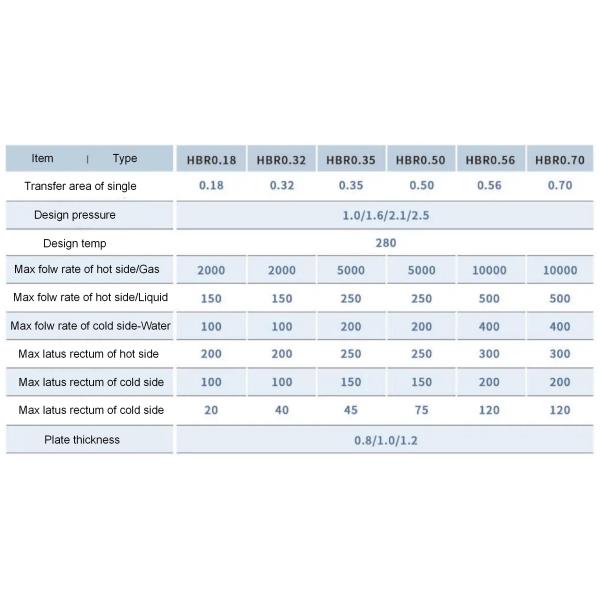

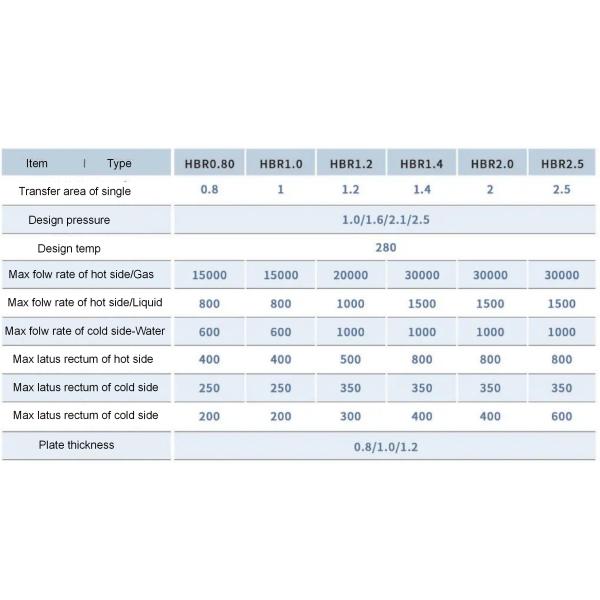

TECHNICAL PARAMETERS

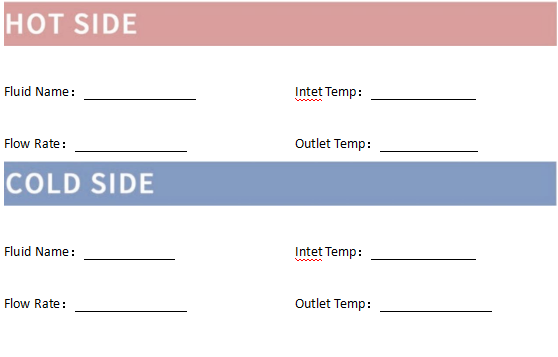

SELECTION CONDITIONS

^{Heat exchanger selection is very important,usually need to know the above parameters,if you are not clear about the conditions of use, please contact us, we will confirm the selection parameters with you.}

^{According to the application parameters, we use software to select the type of heat exchanger you need.}

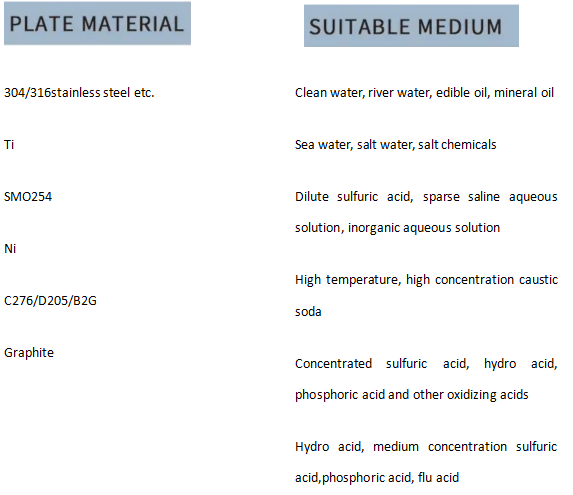

OPTIONAL MATERIAL OF PLATES/GASKET

Product Advantages

^{01Small flushing volume, economical and environmentally friendly}

^{The small flushing volume of special media is beneficial to environmental protection and reducing operating costs.}

^{02Compact structure and small footprint}

^{The volume of the tube side and shell side of the shell and tube heat exchanger is large. In order for the system to work properly, a large amount of medium must be filled. On the one hand, the semi-welded plate heat exchanger is small in size, and on the other hand, the spacing size is also small, so it occupies a small area, is easy to install, and saves space.}

^{03High heat transfer efficiency and easy maintenance}

^{The plate pair adopts laser welding technology and is sealed with a sealing gasket. It has high heat transfer efficiency, long service life, is not easy to leak, is easy to maintain, and has a high safety factor.}

^{04Low freezing tendency and high antifreeze performance}

^{Since water can form high-speed turbulence in the plate heat exchanger at a low flow rate, the temperature distribution is very uniform, thus reducing the freezing tendency of the chilled water. Even if freezing occurs, it can better withstand the pressure generated by freezing and can continue to be used after freezing, unlike shell and tube heat exchangers, which are prone to tube rupture.}
