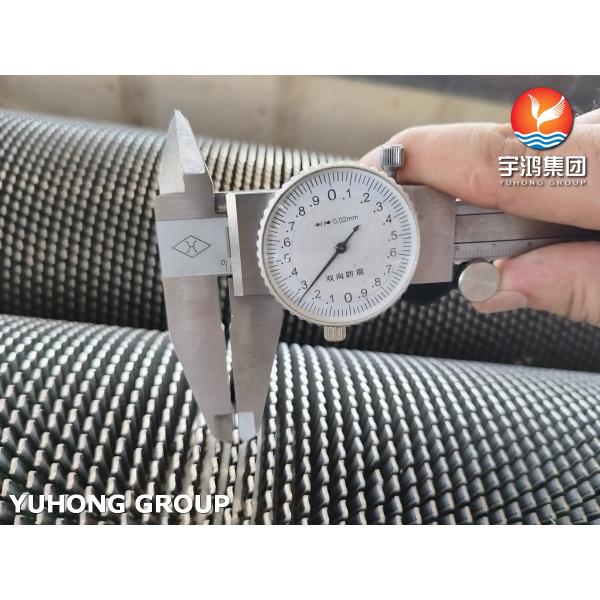

Stainless Steel HFW Serrated Fin Tube ASTM A312 TP304H With SS304 Fin For Furnace
Stainless Steel HFW Serrated Fin Tube ASTM A312 TP304H With SS304 Fin For Furnace
Stainless Steel HFW Serrated Fin Tube ASTM A312 TP304H With SS304 Fin For Furnace
Stainless Steel HFW Serrated Fin Tube ASTM A312 TP304H With SS304 Fin For Furnace
Stainless Steel HFW Serrated Fin Tube ASTM A312 TP304H With SS304 Fin For Furnace
Stainless Steel HFW Serrated Fin Tube ASTM A312 TP304H With SS304 Fin For Furnace
Specifications
Brand Name :
Yuhong
Model Number :
ASTM A312 TP304H
Certification :
DNV, BV, PED, LR, ABS, TS, CCS
Place of Origin :
China
MOQ :
100KGS
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
7DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Material :
ASTM A312 TP304H
Fin Type :
High Frequency Welding, Serrated
Fin Material :
SS304, Stainless Steel
Base Tube Test :
HT, ET
Fin Tube Test :
Hammer Test
Application :
Furnace, Oil and Gas
Description

Stainless Steel HFW Serrated Fin Tube ASTM A312 TP304H with SS304 Fin for Furnace

Key Features:

  1. Base Tube Material: ASTM A312 TP304H Stainless Steel, offering excellent high-temperature strength and corrosion resistance.
  2. Fin Material: SS304 Stainless Steel, known for its durability and thermal efficiency.
  3. Fin Type: Serrated Fins, providing increased heat transfer surface area and reduced airflow resistance.
  4. Application: Designed for furnaces, ensuring efficient heat transfer under extreme conditions.

Technical Specifications:

Property Base Tube (ASTM A312 TP304H) Fin Material (SS304)
Outer Diameter (OD) 19.05 mm - 50.8 mm Customizable based on design
Wall Thickness 2.0 mm - 5.0 mm -
Fin Thickness - 0.3 mm - 0.5 mm
Fin Pitch - 5 - 10 fins per inch
Fin Height - 10 mm - 25 mm
Fin Attachment High-Frequency Welded

Chemical Composition:

Element ASTM A312 TP304H (Base Tube) SS304 (Fin Material)
Carbon (C) ≤ 0.04% ≤ 0.08%
Manganese (Mn) ≤ 2.00% ≤ 2.00%
Phosphorus (P) ≤ 0.045% ≤ 0.045%
Sulfur (S) ≤ 0.030% ≤ 0.030%
Silicon (Si) ≤ 1.00% ≤ 1.00%
Chromium (Cr) 18.00 - 20.00% 18.00 - 20.00%
Nickel (Ni) 8.00 - 11.00% 8.00 - 10.50%

Mechanical Properties:

Property ASTM A312 TP304H (Base Tube) SS304 (Fin Material)
Tensile Strength ≥ 515 MPa ≥ 515 MPa
Yield Strength ≥ 205 MPa ≥ 205 MPa
Elongation ≥ 35% ≥ 40%

Advantages:

  1. High Thermal Efficiency: Serrated fins maximize the heat transfer surface area for efficient thermal performance.
  2. Corrosion Resistance: Both TP304H and SS304 resist oxidation and corrosion at elevated temperatures.
  3. Durability: HFW welding ensures strong fin attachment, minimizing damage from thermal cycling and vibration.
  4. Versatile Performance: Suitable for high-temperature applications, including industrial furnaces and heaters.

Applications:

  • Furnaces: Optimized for high-temperature heat exchange.
  • Power Plants: Efficient heat recovery and transfer systems.
  • Chemical Processing: Heat exchangers in corrosive and high-temperature environments.

Stainless Steel HFW Serrated Fin Tube ASTM A312 TP304H With SS304 Fin For Furnace
