Foam Type 180° Angle 450-800GPM 0.7 MPa Fire Water Monitor
Foam Type 180° Angle 450-800GPM 0.7 MPa Fire Water Monitor
Foam Type 180° Angle 450-800GPM 0.7 MPa Fire Water Monitor
Foam Type 180° Angle 450-800GPM 0.7 MPa Fire Water Monitor
Foam Type 180° Angle 450-800GPM 0.7 MPa Fire Water Monitor
Foam Type 180° Angle 450-800GPM 0.7 MPa Fire Water Monitor
Foam Type 180° Angle 450-800GPM 0.7 MPa Fire Water Monitor
Foam Type 180° Angle 450-800GPM 0.7 MPa Fire Water Monitor
Foam Type 180° Angle 450-800GPM 0.7 MPa Fire Water Monitor
Foam Type 180° Angle 450-800GPM 0.7 MPa Fire Water Monitor
Specifications
Brand Name :
WINAN
Model Number :
PL
Certification :
CCC ISO
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Pieces per month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Carton or as required
Working Pressure :
0.7 MPa
Model :
PL20/30/40/50/60/70/80
Angle of elevation :
≥60°
keyword :
fire fighting water cannon
Material :
Carbon Steel
Horizontal Angle :
≥180°
Description

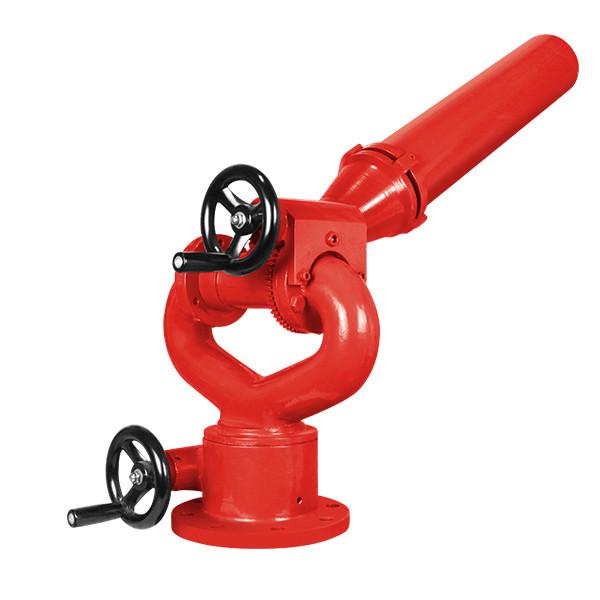

Industrial fire monitor water monitor foam type flow range 450-800 GPM 0.7 MPa

Description

Fire water monitor is a fire fighting device which help to spray water and suppress fire at a long distance. It’s widely used for oil industrial, storage tank farm, hangar, warehouse, sea port, garage and other areas. It’s also an ideal device for fire fighting vehicle.


Technical Parameters

Water Flow Rates 20L/S,30L/S,40L/S,50L/S,60L/S,70L/S,80L/S
Jetting Range From 48 meters to 80 meters,it depends on the working pressure
Working Pressure 0.8 Mpa,0.9Mpa,1.0Mpa,1.2Mpa
Connection type Flange type
Body Material Stainless Steel 304,Cast iron,Ductile iron
Sealing Material NBR
Painting Color Red,RAL3000
Flange Size 80mm,100mm
Applicable Medium Water,Foam,foam mixture,such as AFFF3%,AFFF6%
Updown Turning angle >70 degree
Horizontal Turning Angle >180 degree
Installation Type Fixed type
Working Type Manual type
Manufacture Standard GB50338-2003
Model Number PS

Model PL20 PL30 PL40 PL50 PL60 PL70 PL80
Flow(L/S) 20 30 40 50 60 70 80
Working Pressure(Mpa) 0.8 0.8 0.8 0.8 0.9 0.9 0.9
Max Working Pressure(Mpa) 1 1 1 1 1.2 1.2 1.2
Flange Connection(mm) DN80 DN80 DN80 DN80 DN100 DN100 DN100
Water Jetting Range(m) ≥ 48 ≥ 55 ≥ 60 ≥ 65 ≥ 70 ≥75 ≥80
Horizontal Angle (Degree) 0-360 0-360 0-360 0-360 0-360 0-360 0-360
Max angle of elevation (Degree) 70 70 70 70 70 70 70
Max Angle Of Depression (Degree) -70 -70 -70 -70 -70 -70 -70

Features

1. Concentrated jet flow, big flow, long range, and multi-function.
2. It can either be current spray or mist spray that controlled by a knob.
3. Easy to operate and the barrel can either rotate or fasten.
4. Flow can be adjusted from 20~50L/S as demands.
5. The horizontal angle and pitch angle can be changed to fit different fire disasters.

Foam Type 180° Angle 450-800GPM 0.7 MPa Fire Water Monitor

Foam Type 180° Angle 450-800GPM 0.7 MPa Fire Water Monitor

FAQ

1. Do you offer free sample for your clients?
Yes, we can offer you free sample.


2. What's the MOQ of your products?
MOQ is ONE pcs/set.


3. Are you manufacturer with your own factory?
Yes, we are the manufacturer for more than 20 years


4. What's your payment terms?
We accept T/T, L/C, Western Union, Paypal,etc.


5. How long is the delivery time?
Usually around 15 days after payment.


6. Can you accept OEM?
Yes, we do customized design for our clients.
