Specifications
Brand Name :
WINAN
Model Number :
PS
Certification :
CCCF , ISO
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Pieces per month
Delivery Time :
7-15
Packaging Details :
Carton or as required
Material :
Carbon Steel
Inlet :
DN80
Application :
Firefighting fire hydrant monitor
Rated Flow :
20
Working Pressure :
0.5 MPa
Flange :
ANSI
Description

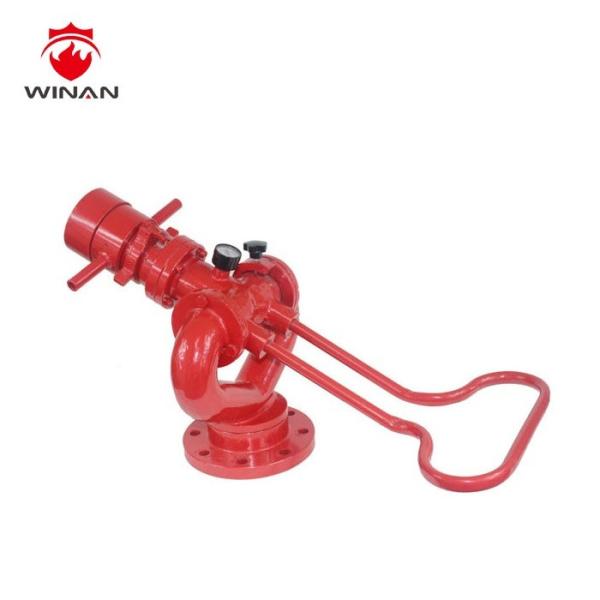

Fire Fighting Manual Water Monitor , Water Cannon, Carbon Steel , DN80

Fire Fighting Monitors Description:

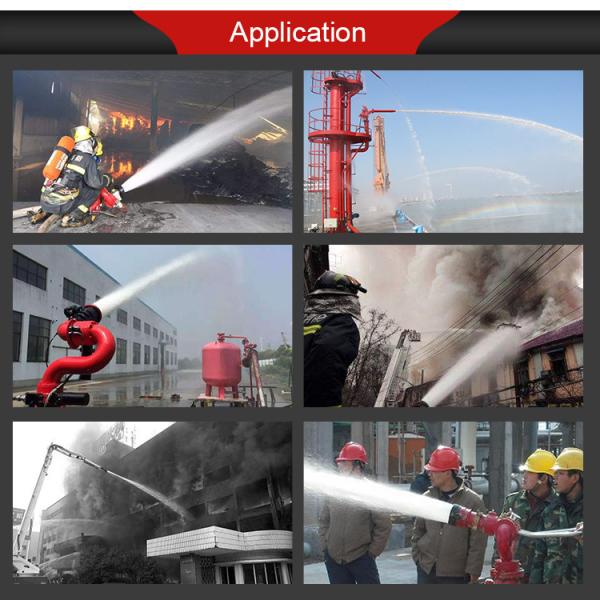

The PS series flow adjustable fire water monitor is a new multi-function fire-fighting equipment which is made from high strength material that can bear high pressure. It can be applied in all kinds of fire trucks, fire boats, and fire towers.
The nozzle of the monitor was made as to the deflector theory that it has features as fellow:
1. Concentrated jet flow, big flow, long range, and multi-function.
2. It can either be current spray or mist spray that controlled by a knob.
3. Easy to operate and the barrel can either rotate or fasten.
4. Flow can be adjusted from 20~50L/S as demands.
5. The horizontal angle and pitch angle can be changed to fit different fire disasters.


Technical Parameters:

Model Rated Working Pressure (MPa) Working Pressure Range (MPa) Rated Flow
(L/S)		 Range (m) Pitch Angle Horizontal Angle Spray Angle
PS 20 0.8 0.5~1.2 20 ≥48 -30°~70° 360° ≥100°
PS 25 25 ≥50
PS 30 30 ≥55
PS 40 40 ≥60
PS 50 50 ≥70

ANSI Flange DN100 Carbon Steel 0.5 MPa Fire Water CannonANSI Flange DN100 Carbon Steel 0.5 MPa Fire Water CannonANSI Flange DN100 Carbon Steel 0.5 MPa Fire Water CannonANSI Flange DN100 Carbon Steel 0.5 MPa Fire Water CannonANSI Flange DN100 Carbon Steel 0.5 MPa Fire Water CannonANSI Flange DN100 Carbon Steel 0.5 MPa Fire Water Cannon

ANSI Flange DN100 Carbon Steel 0.5 MPa Fire Water Cannon
