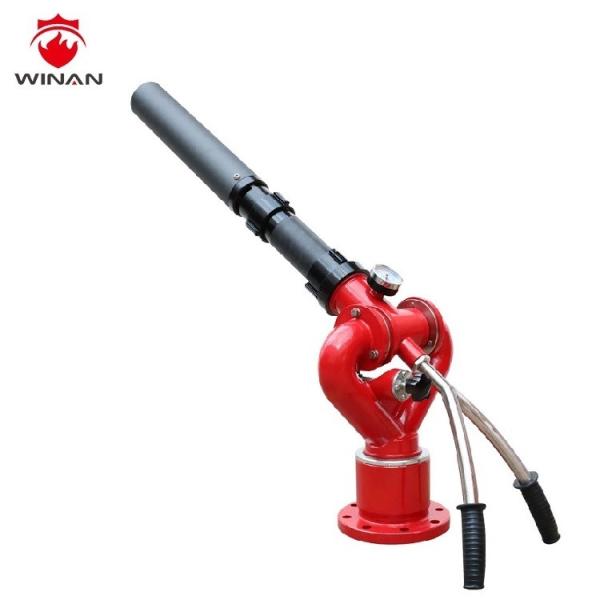

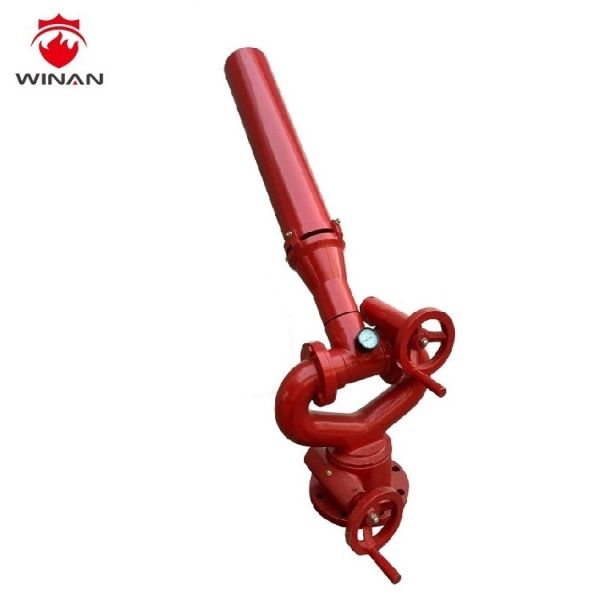

ANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol Grip
ANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol Grip
ANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol Grip
ANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol Grip
ANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol Grip
ANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol Grip
ANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol Grip
ANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol Grip
ANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol Grip
ANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol Grip
ANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol Grip
ANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol Grip
Specifications
Brand Name :
WINAN
Model Number :
PS
Certification :
CCC ISO
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Pieces per month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Carton or as required
Application :
Firefighting
Rated Flow :
30
Model :
PS20/30/40/50/60/70/80
Flange :
ANSI
Working Pressure :
0.7MPa
Material :
Carbon Steel
Description

Multifunctional fire water monitor with pistol grip 0.5~1.2MPa 20-50L/S water monitor

Description

The PS series flow adjustable fire water monitor is a new multi-function fire-fighting equipment which is made from high strength material that can bear high pressure. It can be applied in all kinds of fire trucks, fire boats, and fire towers.The water inlet of this gun adopts flanged connection, and the main material is made of stainless steel, copper, aluminum, QT450, which can spray dc and water mist. The firefighting gun is simple and novel in structure, stable and reliable in performance, flexible in operation and convenient in maintenance. Its main specifications, technical parameters and performance meet the requirements of GB19156-2003 general technical conditions for fire control guns.


Technical Parameters

Model Rated Working Pressure (MPa) Working Pressure Range (MPa) Rated Flow
(L/S)		 Range (m) Pitch Angle Horizontal Angle Spray Angle
PS 20 0.8 0.5~1.2 20 ≥48 -30°~70° 360° ≥100°
PS 25 25 ≥50
PS 30 30 ≥55
PS 40 40 ≥60
PS 50 50 ≥70

Features

1. Concentrated jet flow, big flow, long range, and multi-function.
2. It can either be current spray or mist spray that controlled by a knob.
3. Easy to operate and the barrel can either rotate or fasten.
4. Flow can be adjusted from 20~50L/S as demands.
5. The horizontal angle and pitch angle can be changed to fit different fire disasters.

ANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol GripANSI Flange 0.7MPa 50L/S Fire Water Monitor With Pistol Grip

Company Information

Our company now has a large area of industrial workshops of more than 10000 square meters. We possess all kinds of advanced producing equipments, sophisticated manufacturing process and modernized testing center. Our products contain foam system, sprinkler system, fire monitors, fire hydrant, water mist system and valves.Winan fire-fighting passed the ISO9001:2000 Quality Management System Certification in 2001 and we also passed the CCC Product Quality Certification of Ministry of Public Security fire products in 2004. Products manufactured by Winan fire-fighting were assessed as the “Chinese high-quality brand-name products" by Chinese Quality Management Juries. The company was assessed as the “AAA" honest enterprise by Ministry of Commerce Economic Academy and it is the member of Chinese Fire Protection Association.

FAQ

1. Do you offer free sample for your clients?
Yes, we can offer you free sample.


2. What's the MOQ of your products?
MOQ is ONE pcs/set.


3. Are you manufacturer with your own factory?
Yes, we are the manufacturer for more than 20 years


4. What's your payment terms?
We accept T/T, L/C, Western Union, Paypal,etc.


5. How long is the delivery time?
Usually around 15 days after payment.


6. Can you accept OEM?
Yes, we do customized design for our clients.
