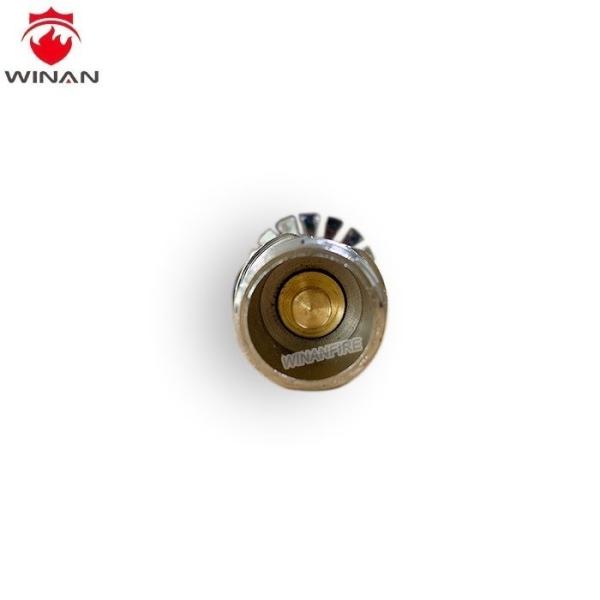

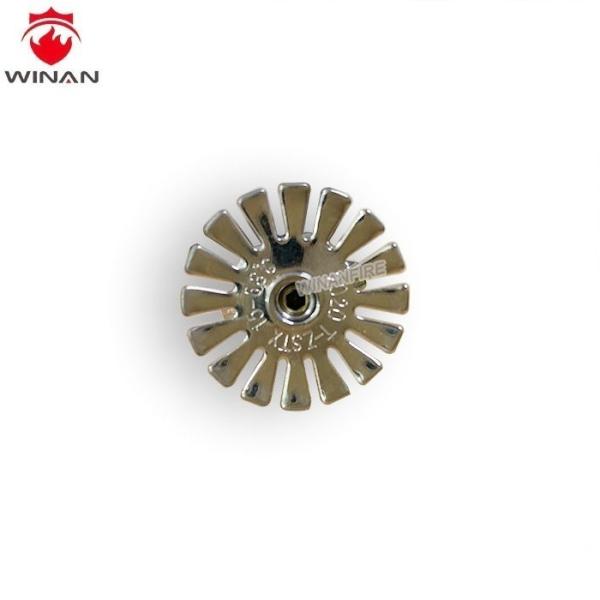

180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa
180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa
180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa
180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa
180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa
180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa
180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa
180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa
180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa
180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa
Specifications
Brand Name :
WINAN
Model Number :
ZSTM
Certification :
UL FM
Place of Origin :
Guangdong, China
MOQ :
100
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000 Pieces per year
Delivery Time :
7-15
Packaging Details :
Carton or as required
Material :
Brass, Chrome Plating
Service Pressure :
12 Bar
Keyword :
Fire Sprinkler
Sample :
Available
Installing Form: :
Conventional
Flow Coefficient(k) :
80
Glass Bulb Color :
Orange, Red, Yellow, Green, Blue
Working Pressure :
0.35MPa
Nominal Diameter :
Dn15, Dn20
Flow Range :
15~150L/Min
Atomize Aangle :
120, 150, 180degree
Description

180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa

Concealed Fire Sprinkler Flow Range 15~150L/Min 0.35MPa Fast Sprinkler

Product description:

There are several types of fire sprinklers: pendant type, upright type, ordinary type, side wall type and concealed type sprinkler

This water mist nozzle consists of frame, apex and deflector. It is to protect areas with combustibles that water will be atomized by the deflector and ejected when it flows into the nozzle once a fire happens. The nozzle will keep spraying water mist to prevent fire from spreading during the fire disaster.

Technical Parameters:

Model Rated Working Pressure(MPa) Flow(L/min) Flow Coefficient(K) Atomize Angle
ZSTWC8 0.35 15 8

60°

90°

120°

150°

180°
ZSTWC11.8 22 11.8
ZSTWC14.9 28 14.9
ZSTWC16 30 16
ZSTWC21 40 21
ZSTWC27 50 27
ZSTWC34 63.6 34
ZSTWC42 80 42
ZSTWC50 93.5 50
ZSTWC57 106.6 57
ZSTWC80 150 80
ZSTWC86 160 86
ZSTWC107 200 107
ZSTWC115 215 115
ZSTWC160 300 160

Classification:

1. The drooping sprinkler is the most widely used sprinkler. It is installed drooping on the water supply branch pipe. The shape of the sprinkler is parabolic, spraying 80-100% of the total water to the ground. Mainly used in places that do not need decoration, such as workshops, warehouses, parking garages, kitchens, etc.

2. The upright sprinkler is installed upright on the water supply branch pipe. The sprinkling shape is parabolic, spraying 80-100% of the total water volume downwards, and part of it is sprayed to the ceiling. It is suitable for installation in places where there are many moving objects and are prone to collisions. In places such as warehouses, it can also be concealed on the roof of the room ceiling mezzanine to protect the ceiling boron with more flammable materials.

3. Side wall sprinklers are installed against the wall, which is suitable for installation in places where space is difficult to pipe. They are mainly used in light-dangerous parts of buildings such as offices, halls, lounges, and corridor rooms.


180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa180 Degree Concealed Fire Sprinkler Flow Range 150L/Min 0.35MPa

FAQ

1. What is the minimum order quantity for your product?
The minimum order quantity is one set/set.Foam liquid is generally 1000 liters

2. Do you have your own factory manufacturer?
Yes, we have been a manufacturer for more than 20 years. Our main products are foam fire extinguishing equipment, bladder storage tank foam system, balanced pressure distribution system, etc. We can provide a one-stop service including fire protection products.

3. Can OEM be accepted?
Yes, we provide customized designs for customers.

You are welcome to contact us, we provide in-depth customized services to better solve your product needs!
