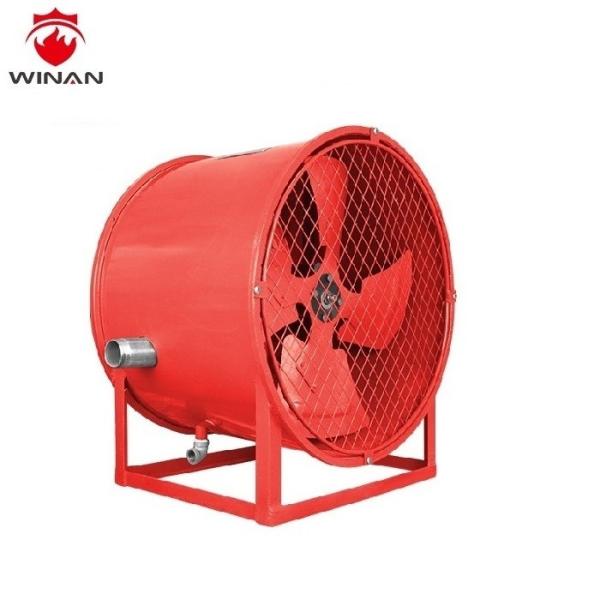

AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min
AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min
AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min
AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min
AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min
AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min
AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min
AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min
AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min
AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min
AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min
AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min
Specifications
Brand Name :
WINAN
Model Number :
PF
Certification :
CCC ISO
Place of Origin :
Guangdong, China
MOQ :
1 Set/Sets customized
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Carton, Pallet, Wooden case or as required
Inlet Pressure :
0.3~1.0MPa
Foam concentrate :
AFFF , AFFF/AR , S , S/AR etc.
Product name :
High Expansion Foam Generator
Solution Flow :
2.5~5.7L/S
Material :
Carbon Steel , Stainless Steel
Expansion :
>300
Foam Volume :
105~210L
Usage :
Foam Suppression System
Description

Flow Range 2.5-5.7 L/S, Fire Extinguishing Foam 105~210m3/Min, Fire Extinguishing Device High Expansion Foam Generator

The PF high expansion foam generator is one of the key equipment for high expansion foam extinguishing system. Its advantage is that it has big frothing volume and can be applied in different cases.

Working Principle:

Driving a hydroturbine with foam solution whose pressure is from 0.3~1.0Mpa and then the hydroturbine drives the fan. Foam solution was dispersed into droplets when it flow through a nozzle and sprayed to foam generate net. These droplets then form thin films and were blowed into amount of foams by the fan, constituting high expansion foam.

Technical parameters:

Model Inlet Pressure
(MPa)		 Foam Volume
(m3/min)		 Flow Rate Expansion
Ratio
PF4 0.3~1.0 105~210 2.5~5.7 >300

Application:

It is usually applied in the high expansion foam extinguishing system.

AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min

AFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/MinAFFF 2.5-5.7L/S Fire Extinguishing Foam Generator 105~210m3/Min

Warranty and Services

Providing free guidance on installation and debugging.

Guarantee one year warranty after ex-factory and lifetime service.

Company Information:

With a history of more than 20 years, Shenzhen Winan Industrial Development Co. Ltd. is a professional manufacturer and exporter who are focusing on designing, developing and manufacturing all kinds of Fire fighting equipment. The company now has a large area of industrial workshops of more than 10000 square meters, located in Shenzhen, China, with convenient transportation access.

All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network around the world.

Certificates:

All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network around the world.

FAQ:

1. Do you offer free sample for your clients?

?????Yes, we can offer you free sample.

2. What's the MOQ of your products?

?????MOQ is ONE pcs/set.

3. Are you manufacturer with your own factory?

?????Yes, we are the manufacturer for more than 20 years

4. What's your?payment terms?

?????We accept T/T, L/C, Western Union, Paypal,etc.

5. How long is the?delivery time?

?????Usually around 15 days after payment.

6.?Can you accept OEM?

????Yes, we do customized design for our clients.
