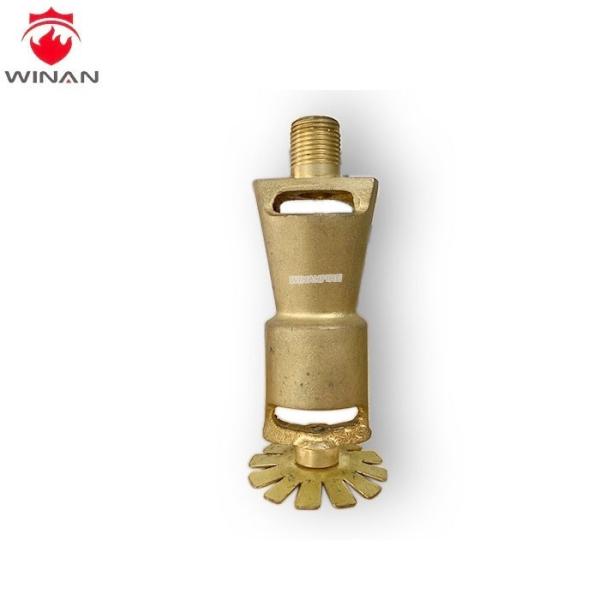

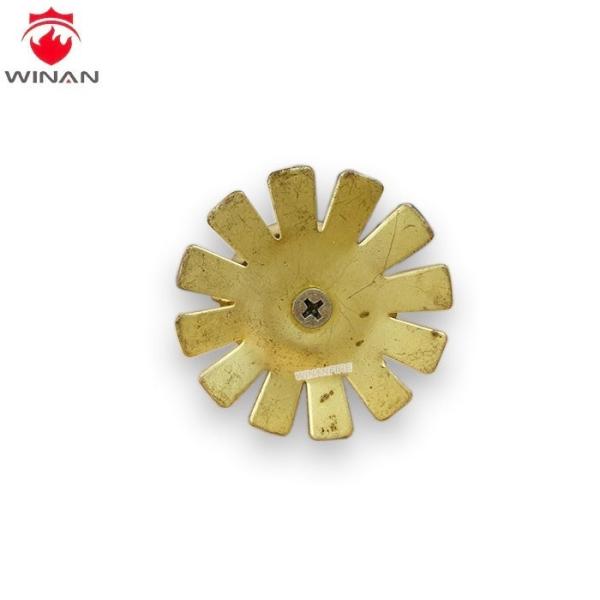

DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System
DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System
DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System
DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System
DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System
DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System
DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System
DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System
DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System
DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System
DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System
DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System
Specifications
Brand Name :
WINAN
Model Number :
PTS
Certification :
UL FM
Place of Origin :
Guangdong, China
MOQ :
100
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000 Pieces per year
Delivery Time :
7-15
Packaging Details :
Carton or as required
Material :
Copper and stainless steel
Name :
fast response sprinkler
Color :
copper
Nominal Diameter :
DN15, DN20
Expansion Ratio :
not less than 6
Working Pressure :
0.3~0.5MPa
Description

DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System

The reticular foam and water dual sprinkler (PTT/S series) are the specialized units to form and spray air foam, which is mainly used in low expansion extinguishing system. The foam solution conveyed to the nozzle by pipes and inhale air before outlet of the nozzle and then become foams to put out fire. The foam/water combined nozzle can also spray water besides spraying foam.

Working principle:

When the pressure foam solution flow through the lumen of the nozzle, its pressure will be reduced because of throttling, which result in vacuum and inhale air. The foam solution then becomes foams after dispersed by nozzle.

Technical parameters

Model Working Pressure Range (MPa) Solution Flow (L/S) Expansion Ratio 3m Height Spray Diameter
Foam(m) Water(m)
PTS 1.15 0.3~0.5 1.15 ≥6 ≥3.3 ≥4.5
PTS 1.75 1.75

The reticular foam nozzle (PTW series) and foam and water dual sprinkler (PTT/S series) are the specialized units to form and spray air foam, which is mainly used in low expansion extinguishing system. The foam solution conveyed to the nozzle by pipes and inhale air before outlet of the nozzle and then become foams to put out fire. The foam/water combined nozzle can also spray water besides spraying foam.
Working principle:

When the pressure foam solution flow through the lumen of the nozzle, its pressure will be reduced because of throttling, which result in vacuum and inhale air. The foam solution then becomes foams after dispersed by nozzle.

Technical parameters

Model Working Pressure Range (MPa) Solution Flow (L/S) Expansion Ratio 3m Height Spray Diameter(m)
PTW 1 0.3~0.5 1 ≥6 ≥3
PTW 1.2 1.2
PTW 1.5 1.5
PTW1.75 1.75


DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler SystemDN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler SystemDN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler SystemDN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System

Packaging & Shipping

We will choose different packing according to transport way (by FCL, by LCL, by air or by courier), dimensions and numbers of packages.

DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System

Company Information

With a history of more than 20 years, Shenzhen Winan Industrial Development Co. Ltd. is a professional manufacturer and exporter who are focusing on designing, developing and manufacturing all kinds of Fire fighting equipment. The company now has a large area of industrial workshops of more than 10000 square meters, located in Shenzhen, China, with convenient transportation access.

All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. As a result of our high-quality products and outstanding customer service, we have gained a global sales network around the world.

DN15 DN20 Fire Suppression Sprinkler Heads 0.3MPa For Fire Sprinkler System

FAQ

1. Do you offer a free sample for your clients?

Yes, we offer free sample for many of the products

2. What's the MOQ of your products?

Our MOQ is one (1) piece/set.

3. Are you a manufacturer with your own factory?

Yes, we are the manufacturer for more than 20 years

4. What's your payment terms?

We accept T/T, L/C, Western Union, Paypal, etc.

5. How long is the delivery time?

Usually around 15 days after payment.

6. Do you have technical support?

Yes, we have a professional engineering team.

7. Do you have a warranty?

Yes, all products have one year warranty.

8. Can you accept OEM?

Yes, we do customized design for our clients.
