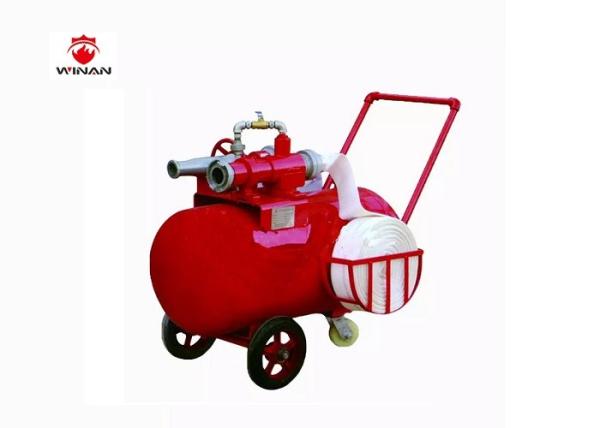

Portable Mobile Foam Fire Extinguisher On Trolley With Carbon Steel Wheeled
Portable Mobile Foam Fire Extinguisher On Trolley With Carbon Steel Wheeled
Portable Mobile Foam Fire Extinguisher On Trolley With Carbon Steel Wheeled
Portable Mobile Foam Fire Extinguisher On Trolley With Carbon Steel Wheeled
Specifications
Brand Name :
WINAN
Model Number :
PY
Certification :
ISO CCC
Place of Origin :
Guangdong, China
MOQ :
1 Set/Sets customized
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 Set/Sets per Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Carton, Pallet, Wooden case or as required
Application :
Fire Fighting Emergency Rescue
Working pressure :
0.5~1.2MPa
Flow Range :
4,8L/S
Model :
PY50-PY500
Tank Capacity :
20-500L
Material :
Carbon Steel Or Stainless steel
Description

50 Liters To 500 Liters Mobile Foam Unit , Foam Fire Fighting Equipment


Product Description

Trolley foam fire extinguisher, portable foam unit, portable foam fire extinguisher, portable foam monitor, foam trolley, PY series Half-fixed (Portable) Foam-agent Fire Extinguisher.
This kind of fire extinguisher consists of foam maker (foam gun), foam proportioner (foam proportioning unit), fire hose, foam concnetrate storage tank, foam monitor, nozzle and the trolley. It is mobile, flexible and easy to move, operate, so it has been widely used in oil industries, museums, airports, bus and railway stations workshops, warehouses as well as other places where have fire hazard.


Technical parameters

Model Tank Capacity (L) Working Pressure(MPa) Solution Flow 3% Foam Solution Spray Time(min)
PQR4 PQ8 PQR4 PQ8 PQ4&PQ8
PY/50 50 0.5~1.2 4 8 7 3.5 2.3
PY/100 100 14 7 4.5
PY/200 200 28 14 9
PY/300 300 41.5 20.5 13.5
PY/400 400 55.5 27.5 18
PY/500 500 69.5 34.5 23

Portable Mobile Foam Fire Extinguisher On Trolley With Carbon Steel Wheeled

Portable Mobile Foam Fire Extinguisher On Trolley With Carbon Steel Wheeled

NO. ITEM NAME NO. ITEM NAME
1 Handle 6 Suction Tube
2 Fire Hose 7 Rear Wheel
3 Steering Wheel 8 Foam Inductor
4 Feed Inlet 9 Foam Nozzle
5 Ball Valve 10 Body

CAPACITY LITERS L
mm		 B
mm		 H
mm		 D
mm
100 1100 750 900 450
200 1450 800 950 500
300 1520 900 1050 600
400 1850 900 1050 600
500 1750 1100 1250 800

Working principle

This system contains units of foam tank, vacuum type porportioner (in-line inductor), fire hose, foam gun and control valves. Pressurized water will flow through a narrow part when it flows into proportioner. There is a pipe at the narrow part which was connected with foam tank. For the flow velocity at the narrow part is bigger than other parts that its pressure gets smaller than standard atmosphere, resulting in vacuum at outlet. Thus the foam concentrate was absorbed out and conveyed to foam generator. The tank has two outlets to choose from or used at the same time.

AFFF:a.3% b.6%

Parts: hose W/foam nozzle monitor, brass valve, pressure gauge, trolley, cylinder in red paiting, etc.

Portable Mobile Foam Fire Extinguisher On Trolley With Carbon Steel Wheeled

FAQ

1. Do you offer free sample for your clients?

Yes, we can offer you free sample.

2. What's the MOQ of your products?

MOQ is ONE pcs/set.

3. Are you manufacturer with your own factory?

Yes, we are the manufacturer for more than 20 years

4. What's your payment terms?

We accept T/T, L/C, Western Union, Paypal,etc.

5. How long is the delivery time?

Usually around 15 days after payment.

6. Do you have technical support?

Yes, we have a professional engineering team.

7. Do you have warranty?

Yes, all products have one year warranty.

8. Can you accept OEM?

Yes, we do customized design for our clients.
